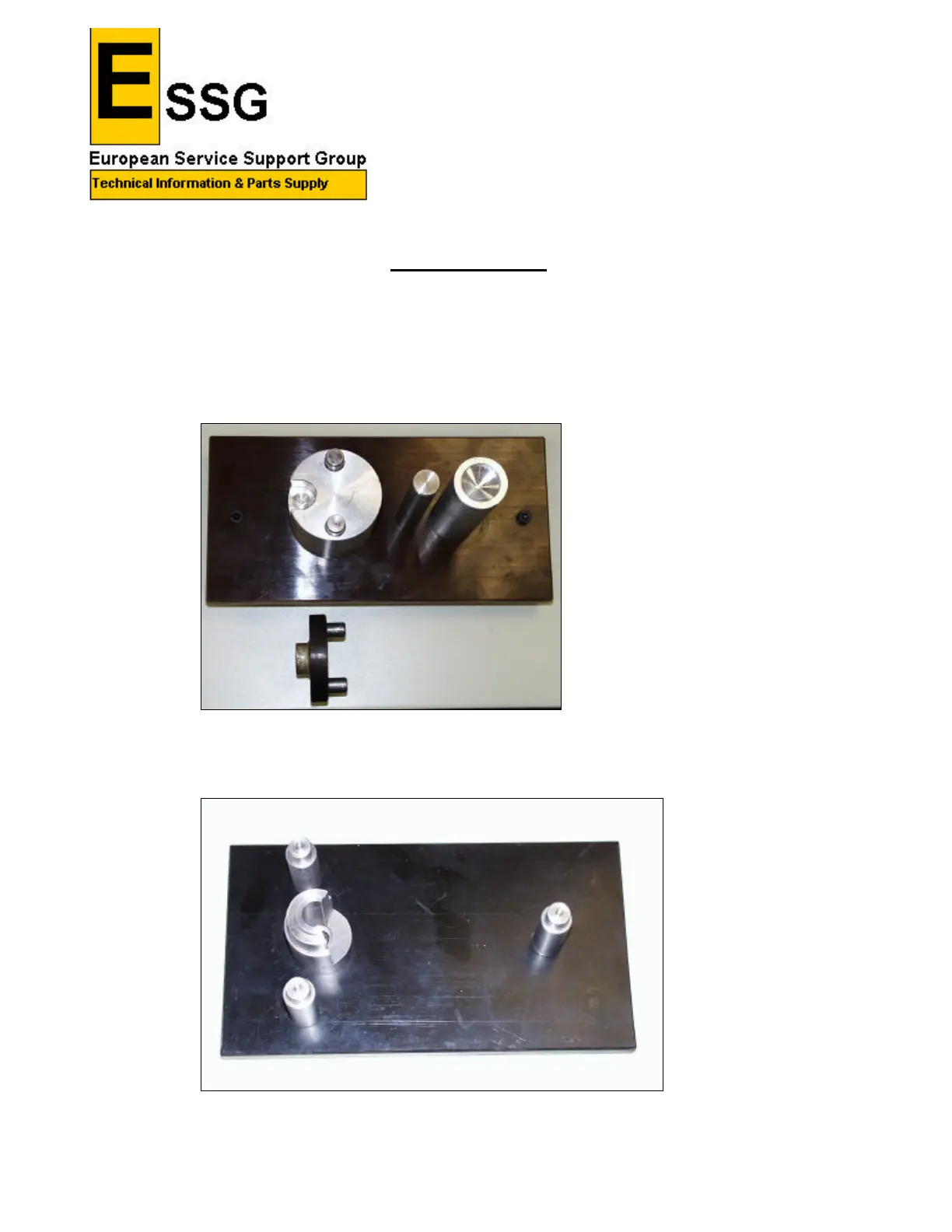

Service tooling
559617-99 Crank Gear Removal & Assembly Tool.
Used to fit Double Gear ( 42 ) in conjunction with a Press.
Will remove and replace the crank gear ( 43 ) in conjunction with a Torque
Wrench
Used to fit Armature Seal (36) & Bearing (35) in conjunction with Service
Tool 559621-99.
559618-99 Motor assembly Tool.
Used to fit Motor Pot ( 2 ) & Armature ( 1 )
