Page 45 of 63

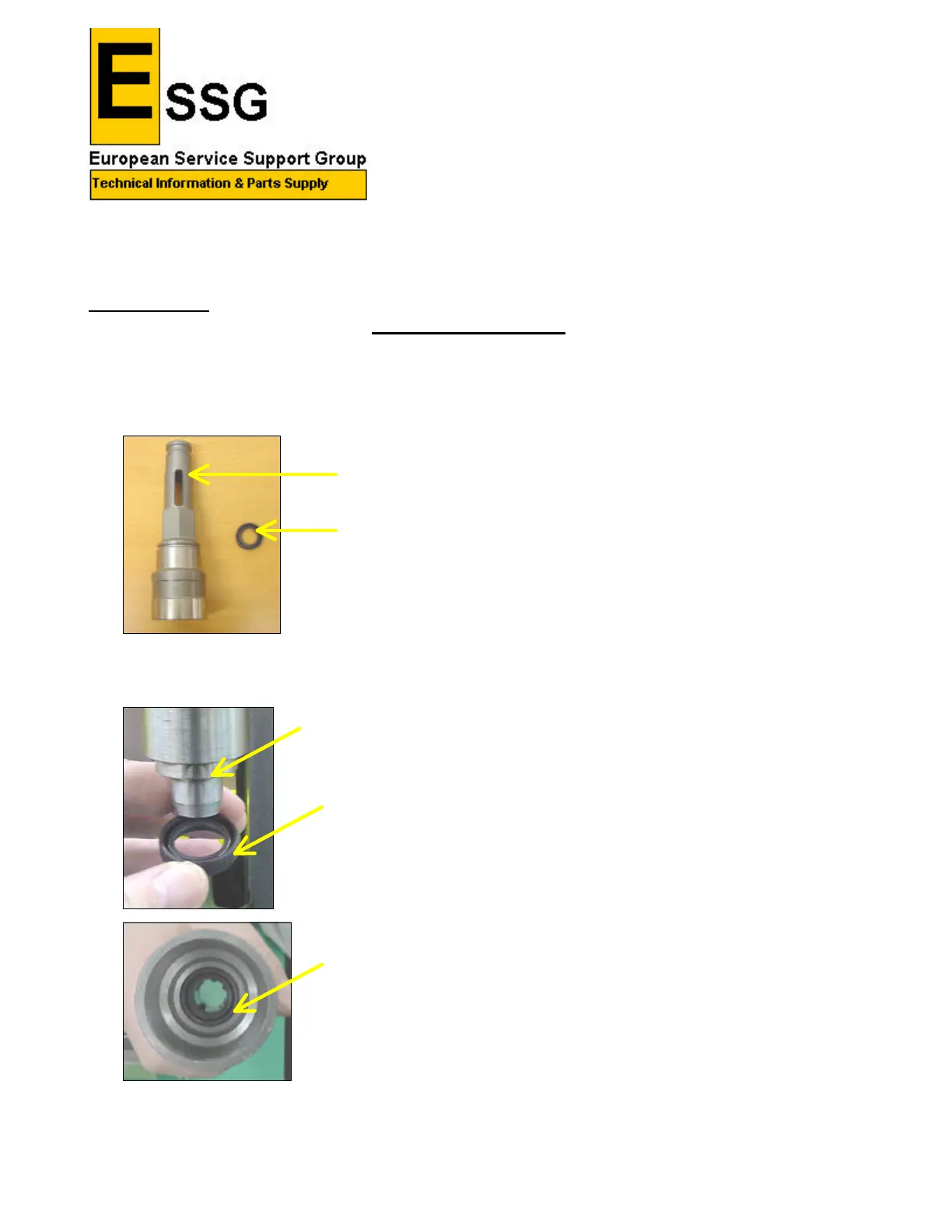

SDS Spindle.
Service Tool 559620-99
If the Spindle is being replaced it will be supplied with the seal already fitted.
Spindle 579773-00.
Beat piece seal 487243-00.
q Fit new seal (108) into Spindle (107) using the Service Tool 559620-99.
q Make sure the Seal is fitted to the Service Tool in the correct
position with the spring against the shoulder, see photo.
q Lightly Grease the outside of the seal.
q Push Seal into spindle until seated correctly
