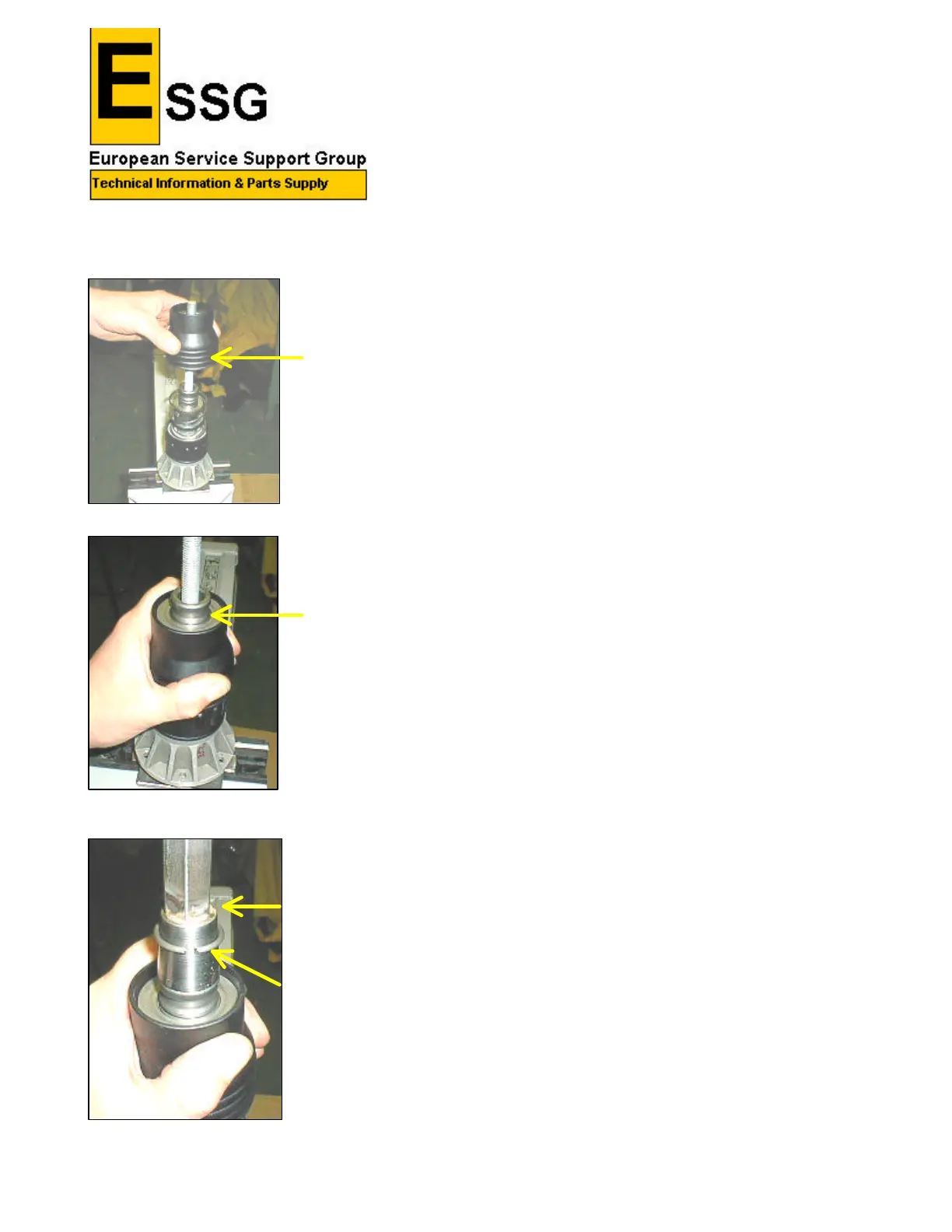

q Fit Sliding Sleeve Assembly over spindle.
q Press the sliding sleeve down until Spindle shows through the center
of the Washer, Make sure the Washer has the recess facing up.
HOLD IN THIS POSITION THROUGHOUT THE
FOLLOWING OPERATION.
q Screw the Cone Shaped part of the Service jig down until it comes in
contact with the Spindle and lock with a spanner ( DO NOT OVER
TIGHTEN).
q Fit New Snap Ring (88) over Cone of the Service Jig.

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
