DeWalt D25900K Service Manual

Page 56 of 63

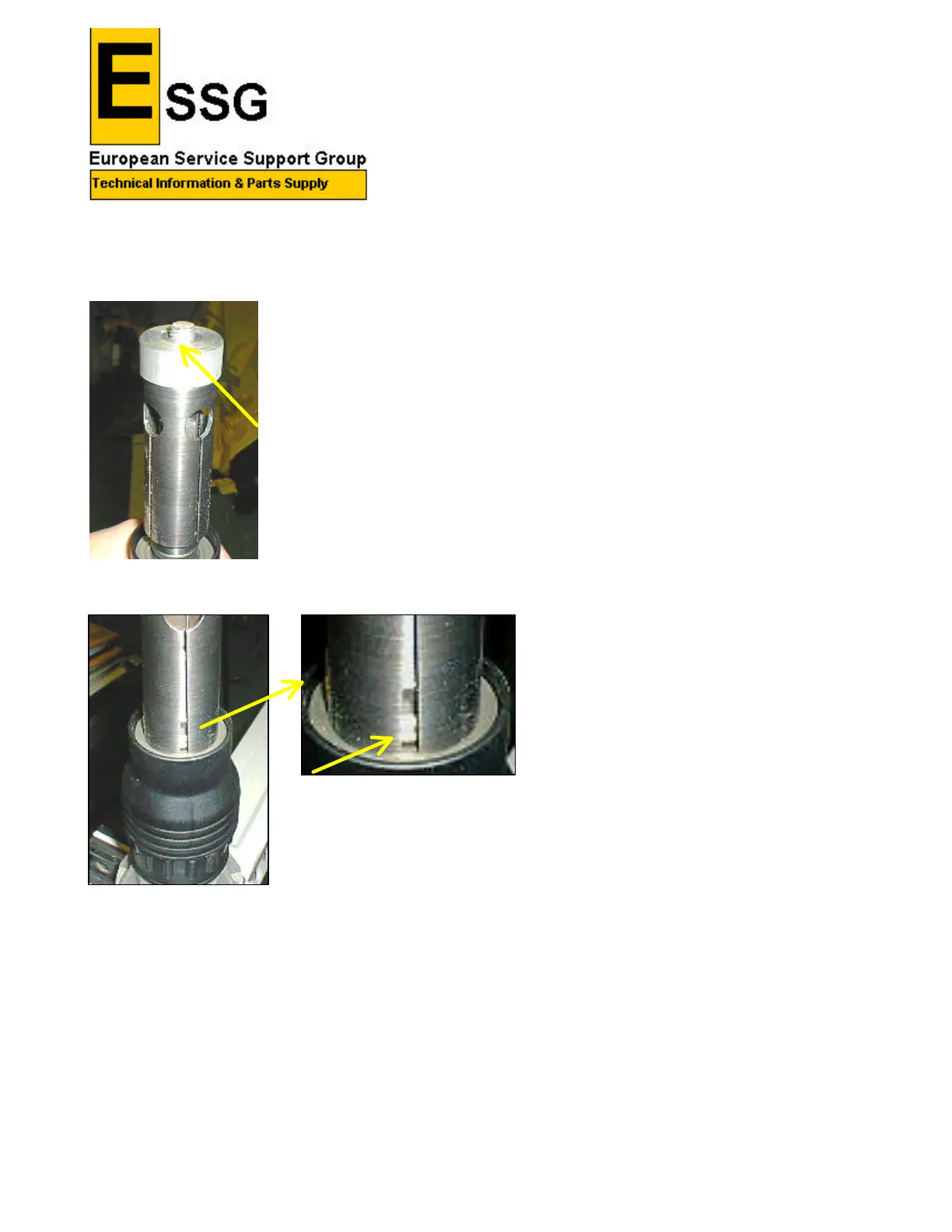

q Place Collet over Cone and position the spacer washer with the recess
facing down.
q Push down until the threaded rod protrudes sufficiently to fit the nut.
q Screw down the nut until the Snap Ring is in the Groove in the
Spindle Four clicks should be heard.
q The Top of the threaded bar and the top of the Nut should be flush
when the Snap Ring is in the correct position.
q Remove the nut and spacer washer from Jig
q Undo the cone and remove from Jig.
q Making sure the Insert stays inside the housing, Lift off the complete Assembly with the collet
still attached to the Spindle. Now pull off collet from Spindle.

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
