DeWalt D25900K Service Manual

Page 20 of 63

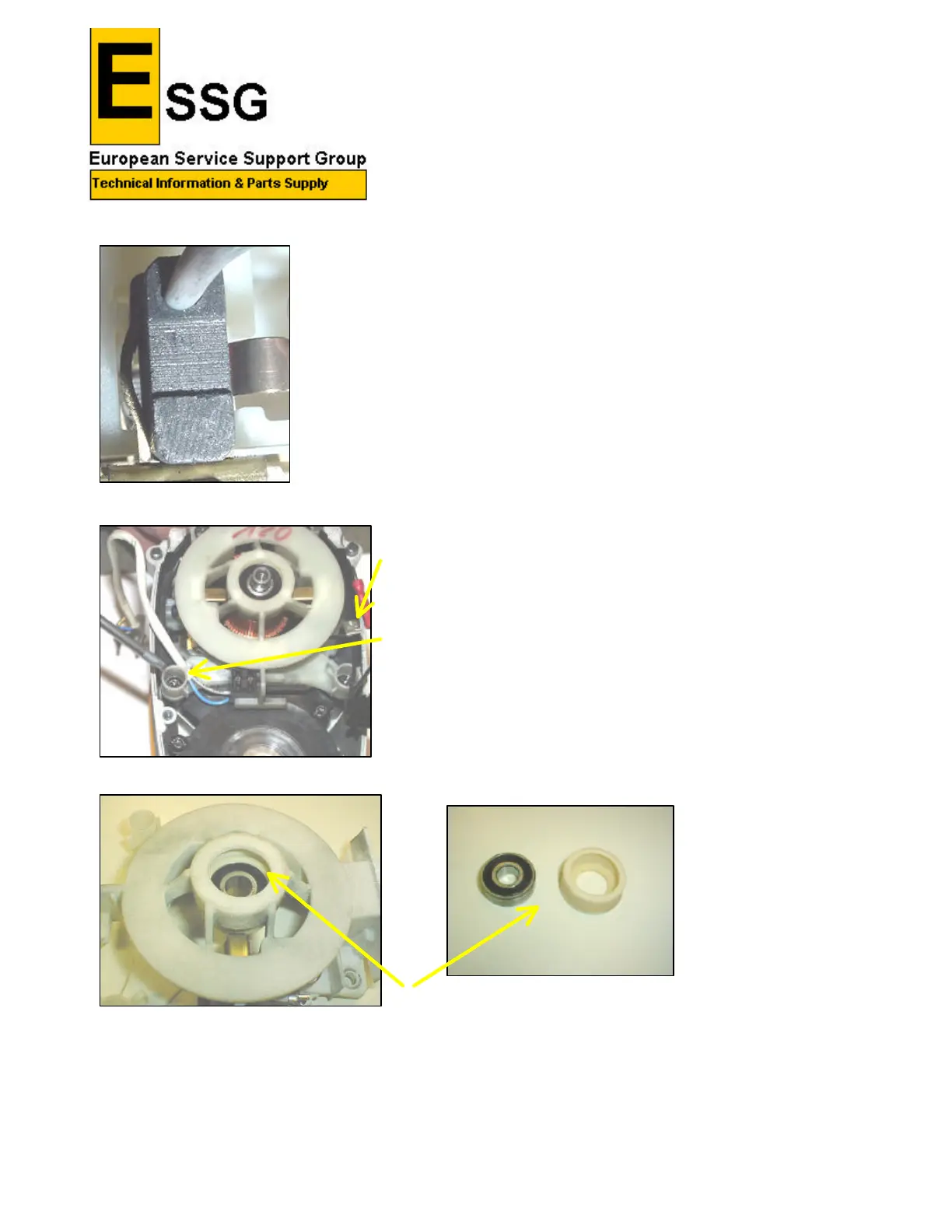

q Remove Brushes (8) Use a small Allen key to pull the spring clear
of the Brush.
q Remove the brush and disconnect from Brush Holder.
q Fit new Brushes and leave spring resting on the side ready to
reassemble.
q Keeping the spring in this position will allow new brushes to be
fitted waiting for re-assembly.
q Disconnect the two short black leads from the Brush
Assembly.
q Remove the 4 Screws (58)
q Holding the Brush Assembly(3) lift clear of Armature
shaft.
The Brush Holders are not available as separate parts.
q Push out Bearing (5) and insulator (4) from Brush assembly.

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
