DeWalt D25900K Service Manual

Page 28 of 63

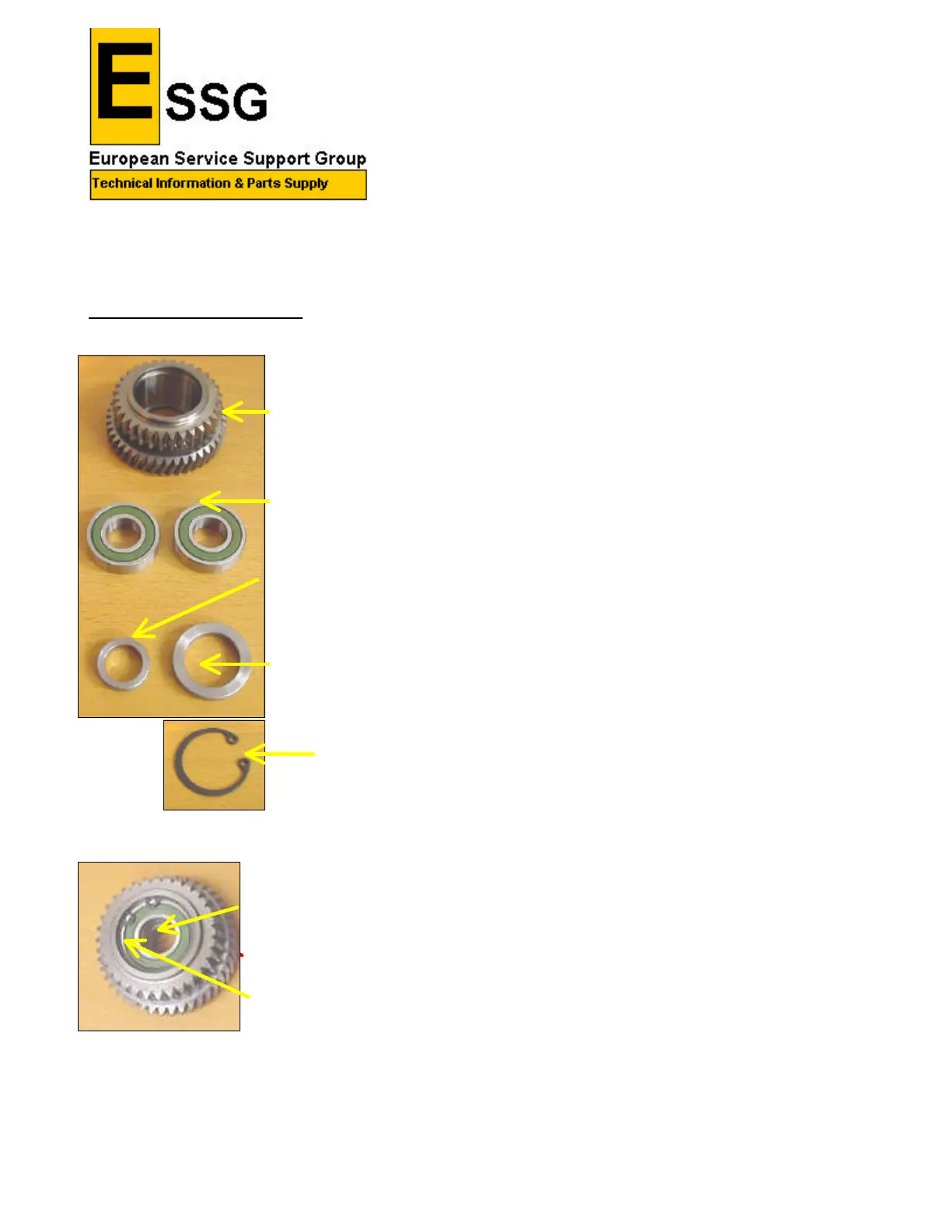

Double gear Assembly.
Gear (42) 579782-00
Bearings (41) 330003-67 x 2
Small Spacer (40) 578451-00
Large Spacer (39) 578452-00
CirClip (37) 324821-03
q Press one Bearing (41) into Double Gear, to its limit.
q Fit both Spacers into the Gear Assembly one resting on the
inner and the other on the outer race of the Bearing one inside
the other.
q Fit the second Bearing, make sure to clear the groove for the
Circlip.
q Fit Cirlip
The Main housing should still be on the Service Jig 559617-99.

DeWalt D25900K Specifications

General

Input power	1500 W
Power source	AC
AC input voltage	230 V
AC input frequency	50 Hz
Impact rate	2040 bpm
Impact energy (max)	25 J
Chuck type	SDS Max

Weight and Dimensions

Weight	9800 g
