DS-CAM-640c & DS-CAM-1100m
TECHNICAL REFERENCE MANUAL
4.3.2. DS-CAM-640c & DS-CAM-1100m Accessories
Type
Name
Description
IP Protection
DS-CAM-IP65-COVER
Camera IP65 lens cover consisting of Adapter and Tube for
mounting on DS-CAM-640c & 1100m
Combined length of 60mm
Power supply
PS-120W-L1B2f-PHG
AC/DC power supply adapter
Connectors: Lemo L1B2f-PHG,
Country wall socket
Power: 120 W (24 V @ 5 A)
Fits DS-CAM-640c, DS-CAM-1100m
Cable length: 3 m (1.5 m to adapter, 1.5 m from adapter)
Multi-camera power
splitter
POWER-SPLITTER-1xL1B2m-5xL1B2f
Power distribution box
Input connector: L1B2m
Output connector: 5x L1B2f
Maximum input current: 15 A
4.4. Camera pinouts
On the backside of the camera, there are two connectors. One for the Power cable and the second one
for the data transfer.

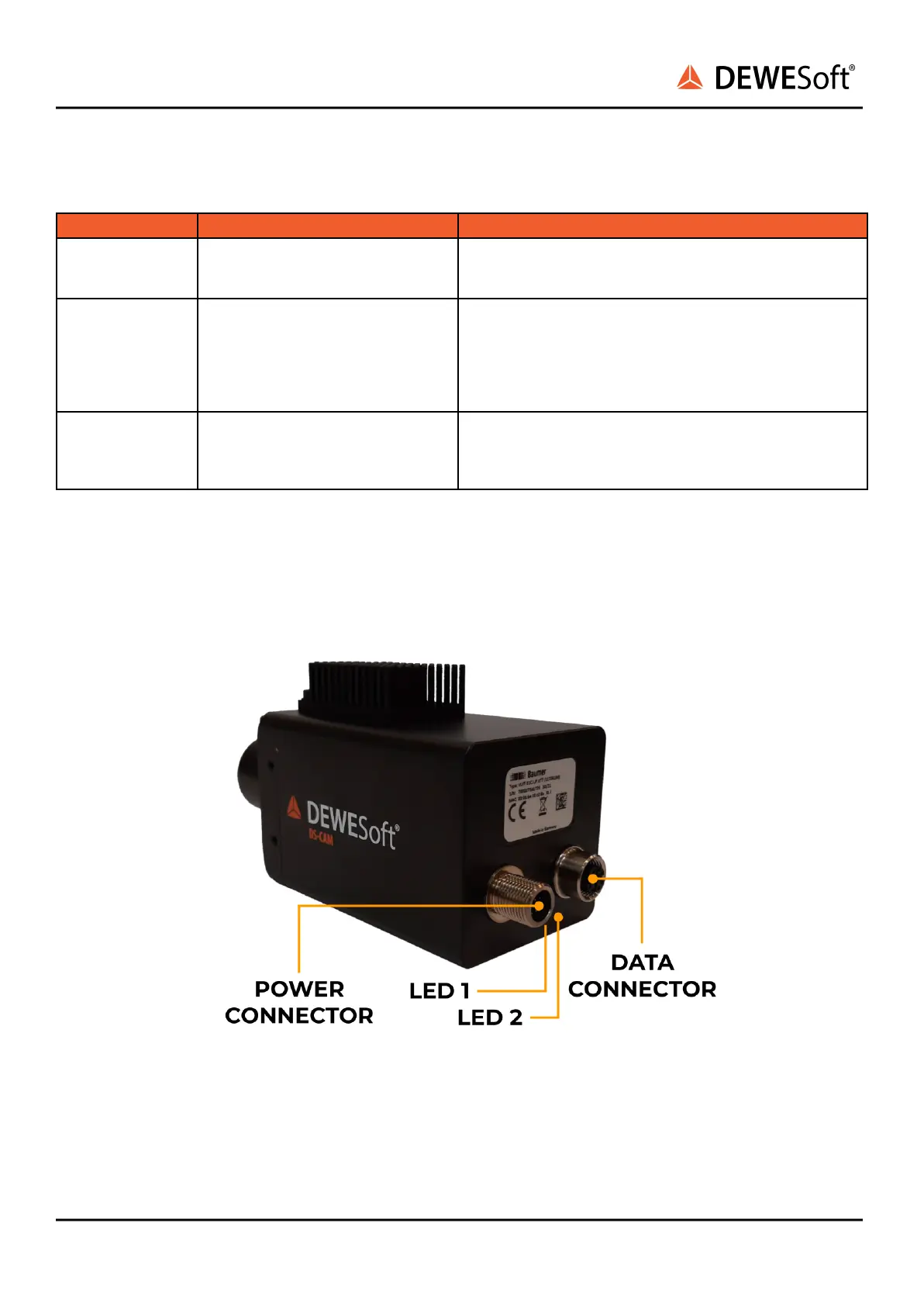

Image 3. Connectors on DS-CAM-640c & DS-CAM-1100m
