DS-CAM-640c & DS-CAM-1100m
TECHNICAL REFERENCE MANUAL
4.5.2. SIRIUS with DS-CAM

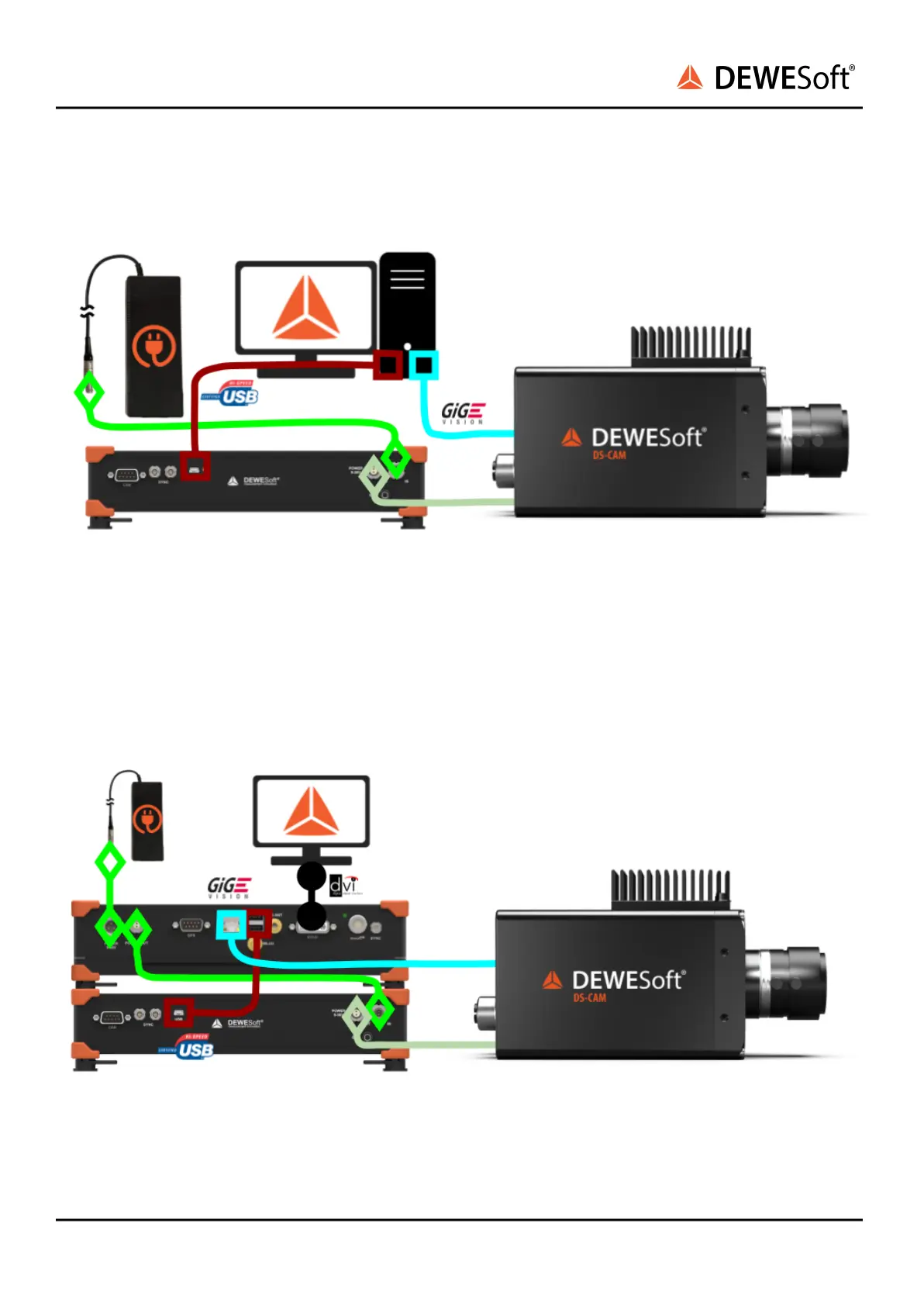

A simple SIRIUS-based measurement system coupled with DS-CAM video acquisition
Image 7. A basic system with a camera SIRIUS and PC
4.5.3. SBOX, SIRIUS with DS-CAM
In this configuration, a SIRIUS Data Acquisition Device is used connected to an SBOX. The DS-CAM is
connected to the SBOX over one of its two LAN ports. In such configuration, power can be provided
either from SIRIUS PWR Out, as then the camera is the last device in the daisy chain, or from SBOX PWR
Out, if you supply the SIRIUS from a different source.
Image 8. SBOX based system with SIRIUS and DS-CAM
DS-CAM-640c & 1100m V22-1 11/34
