4.4.1. DATA CONNECTOR PINOUT

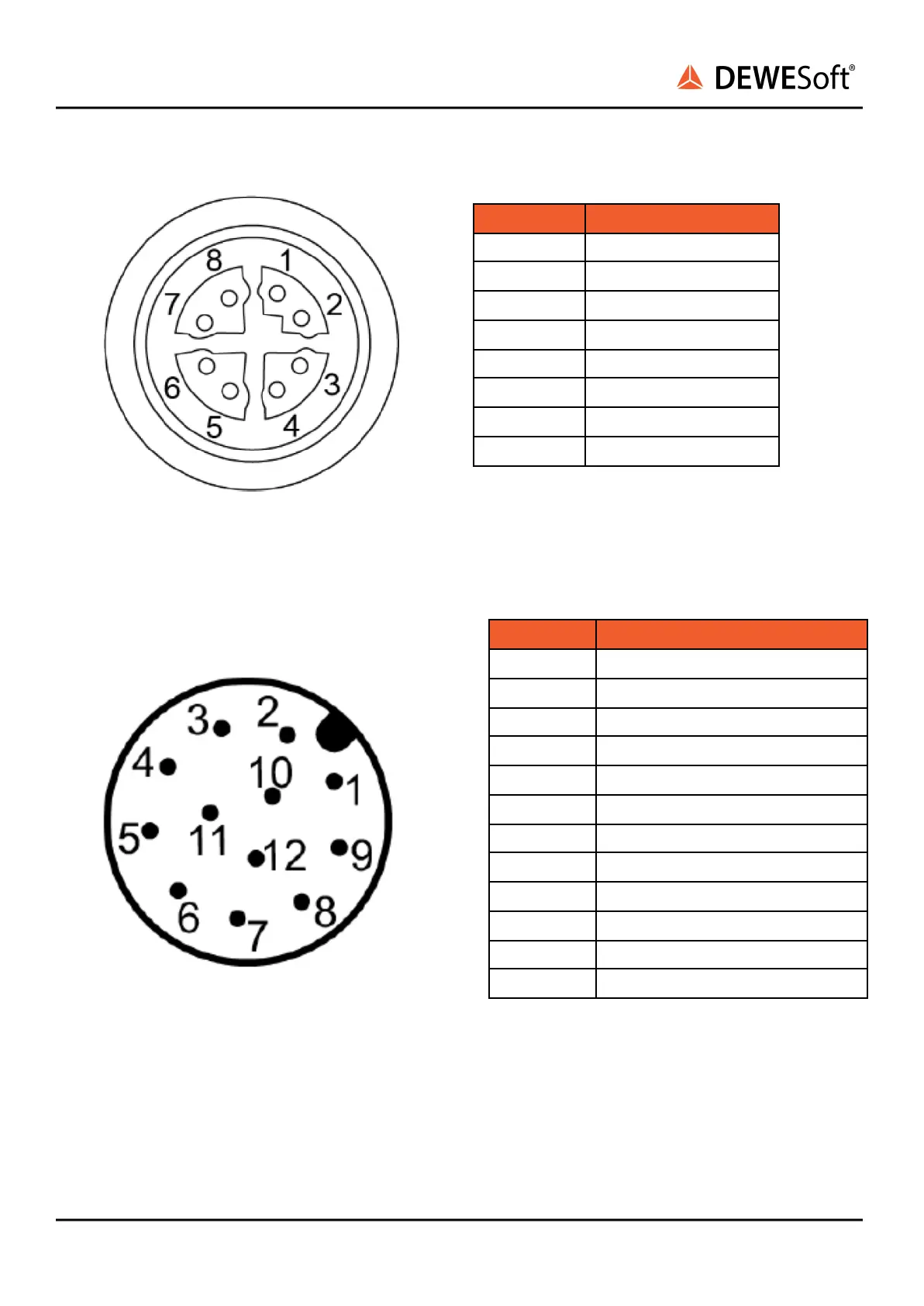

Image 4. IO connector pin-out (M12/12-pin a-coded)
Pin
Name
1
MX1+
2
MX1-
3
MX2+
4
MX2-
5
MX4+
6
MX4-
7
MX3-
8
MX3+
Camera connector: SACC-CI-M12FS-8CON-L180-10G
4.4.2. POWER CONNECTOR PINOUT
Image 5. IO connector pin-out (M12/12-pin a-coded)
Camera connector: SACC-CI-M12MS-12CON-L180
Pin
Name
1
Power Vcc
2
GND (Power)
3
IN1 (Line0)
4
OUT1 (Line4)
5
IN2 (Line1)
6
OUT2 (Line5)
7
OUT3 (Line6)
8
RS232 TxD (Line2)
9
OUT4 (Line7)
10
RS232 RxD (Line3)
11
GND (IO)
12
Power (IO)
DS-CAM-640c & 1100m V22-1 9/34

DEWESOFT DS-CAM-640c Specifications

General

Brand	DEWESOFT
Model	DS-CAM-640c
Category	Digital Camera
Language	English
