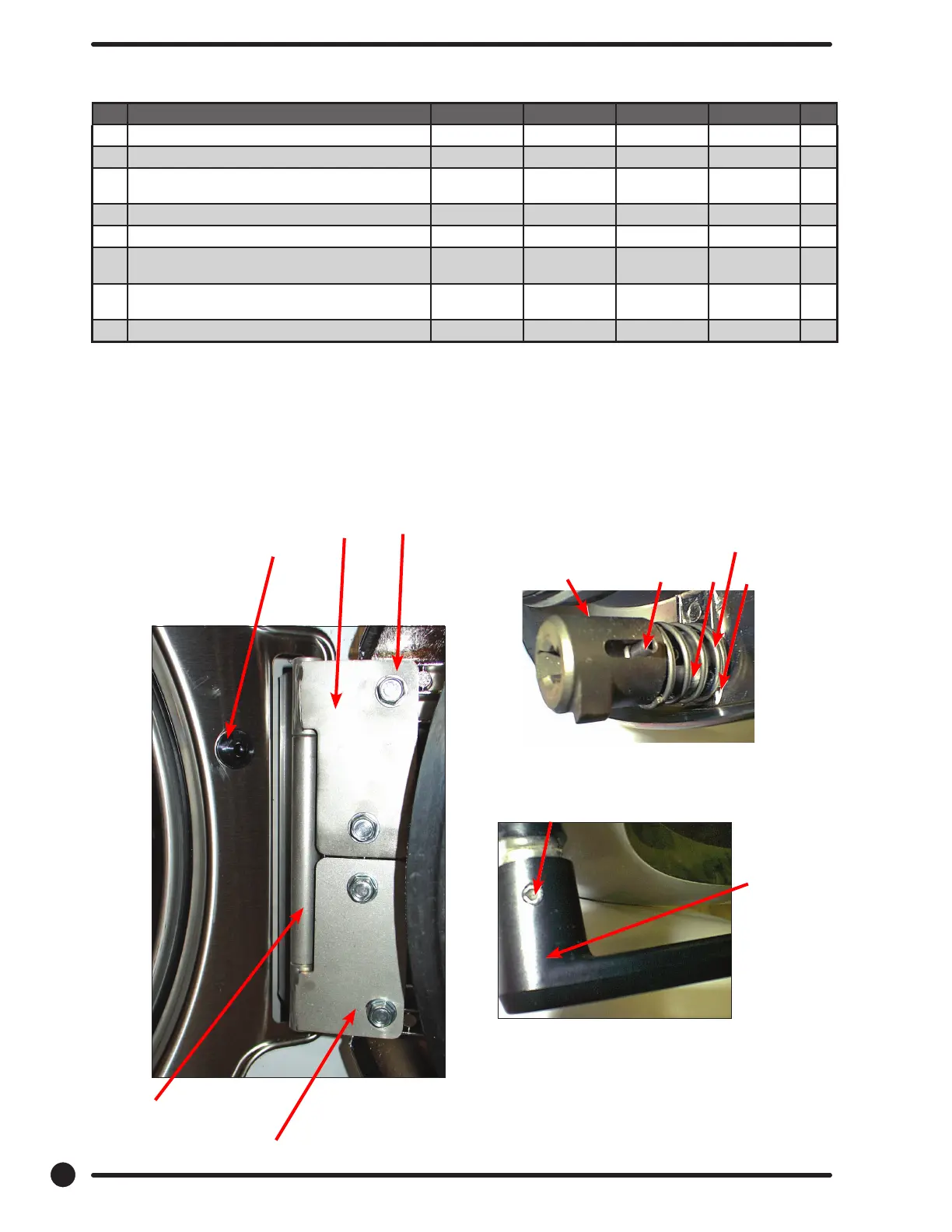

Dexter Laundry T-950 - Page 110

5
1
6
7
8
Key Description T-650 T-750 T-950 T-1450
* Shaft Assembly (includes 11-13) 9913-136-001 9913-136-001 9913-136-001 9913-136-001
11 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 1
12 Cam, Locking 9095- 051-
001
9095- 051-
001
9095- 051-
001
9095- 051-
001
1
13 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
14 Pin, Groove (3/4) 9451-181-004 9451-181-004 9451-181-004 9451-181-004 1
15 Spring, Lock Cam 9534-360-
002
9534-360-
002
9534-360-
002
9534-360-
002
1
16 Handle, Door 9244-091-
001
9244-091-
001
9244-091-
001
9244-091-
001
1
17 Pin, Door Handle (groove) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
13
11
14
15
17
16
12
110
Part # 8533-110-001 11/20
