Adjusting the Loading Door
The door can be adjusted by changing the number of shims behind the door hinge and the door lock
assembly. The vertical t of the door to the tub can be altered by loosening the door hinge bolts and
raising or lowering the door before retightening. It is important for the door to be centered on the tub front.
By chalking the front of the tub and closing the door to transfer that line to the gasket, the centering can
be evaluated. It is also important for door pressure to be similar around the door perimeter. Door pressure
can be evaluated by inserting a dollar bill in several positions and tugging on it. See Parts Section for kit to
increase door sealing pressure.

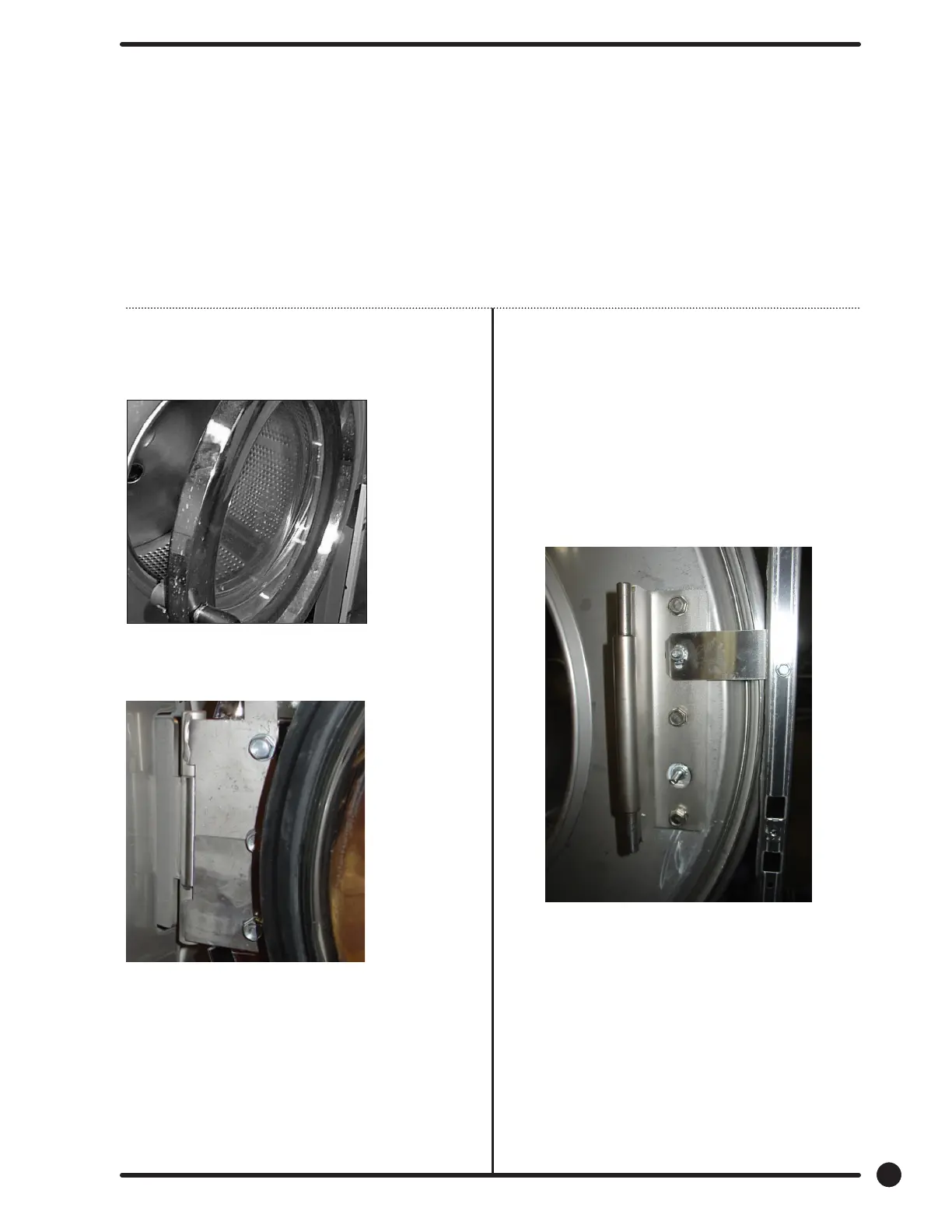

Loading Door Removal
Step 1: Support door to prevent
dropping.
Step 2: Remove 2 bolts holding the
lower leaf hinge and set door
o.
Loading Door Hinge Removal
Step 1: First remove loading door, front panel,
and trim ring.
Step 2: Remove 3 screws holding door hinge.
Shims may be present between hinge
and tub front. The number may be
increased or decreased to adjust right
side door pressure.
NOTE:
Door hinge mounting bolts penetrate tub front
and require silicone sealer applied to holes when
reinstalling.
57
Part # 8533-110-001 11/20
