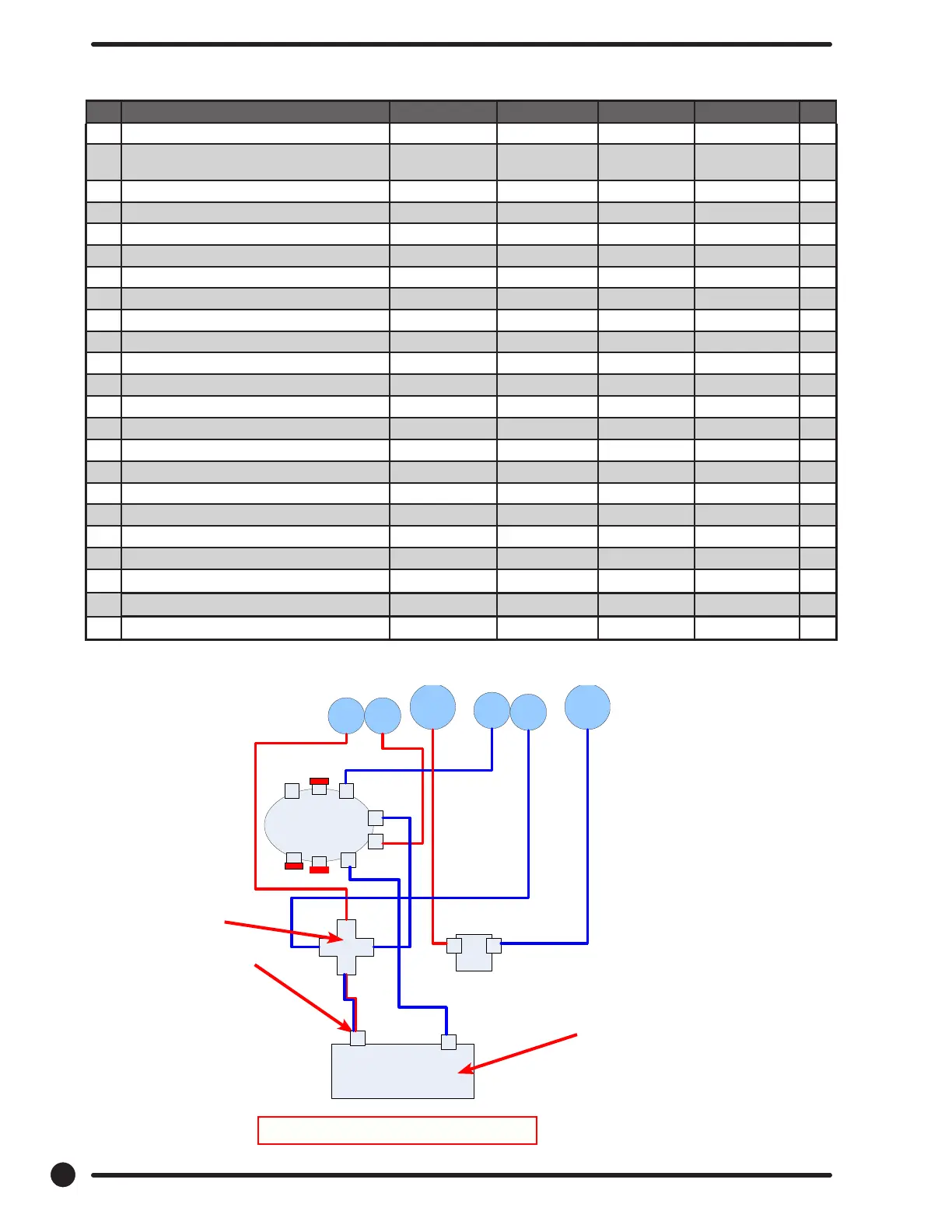

Water Inlet Part # by Model
Key Description T-650 T 750 T-950 T-1450
A Injector Assembly 9883-005-001 9883-005-001 9883-012-001 9885-011-001 1
1 Valve, Water Inlet (dual outlet) (see Water
Inlet Valve Breakdown for individual parts)
9379-183-012 9379-183-012 9379-183-012 9379-183-012 2
* Screw, Valve Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
2 Valve Water Inlet (single outlet) 9379-194-001 9379-194-001 4
* Screw, Valve M4x0.7x8mm 9495-064-001 9545-064-001 8
3 Clamp-Water Valves 865 4 -117- 015 8 654 -117- 008 865 4 -117-00 8 8 654 -117-008 AR
* Shield over Water Valves Plastic 9550-194-001 9550-194-001 9550-195-001 9550-195-001 1
*
Clip-Push 9083-121-001 9083-121-001 3
*
Clip-Push 9083-121-001 9083-121- 001 4
4 Vacuum Breaker 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
5 Bracket, Vacuum Breaker 9029-077-001 9029-077-001 9029-077-001 9029-266-001 1
* Screw 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
6 New Front Mount Soap Box, 2 port 9807-087- 001 1
7 Fitting, Cross 8615 -118- 001
* Clamp, Vacuum Breaker End 865 4 -117- 014 8 654 -117- 014 8 654-117- 014 865 4 -117-014 1
9 Hose, Vacuum Breaker to Tub Injection Tube 9242-461-001 9242-461-001 9242-461-001 9242-461-001 1
10 Flow resistor 9475-002-002 9475-002-002 9475-002-002 9475-002-002 2
11 1/2 inch hose, cut to length 9242-453-001 9242-453-001 9242-453-001 9242-453-001 AR
12 7/8 inch hose, cut to length 9242-466-001 9242-466-001 AR
13 Flow resistor 9475-002-002 9475-002-003 3
* Tub Fill Inlet Cap 0935-135-002 0935-135-002 0935-135-002 0935-135-002 AR
14 Plate-Water Valves, Mounting 9452-813-001 9452-813-001 9452-814-001 9452-814-001 1
15 Nut, #10-32UNF, 2B 8460-413-002 8460 -413 -002 8460-413-002 8460 - 413- 002 4
6
7
13
New Front Soap Box Design
112
Part # 8533-110-001 11/20
