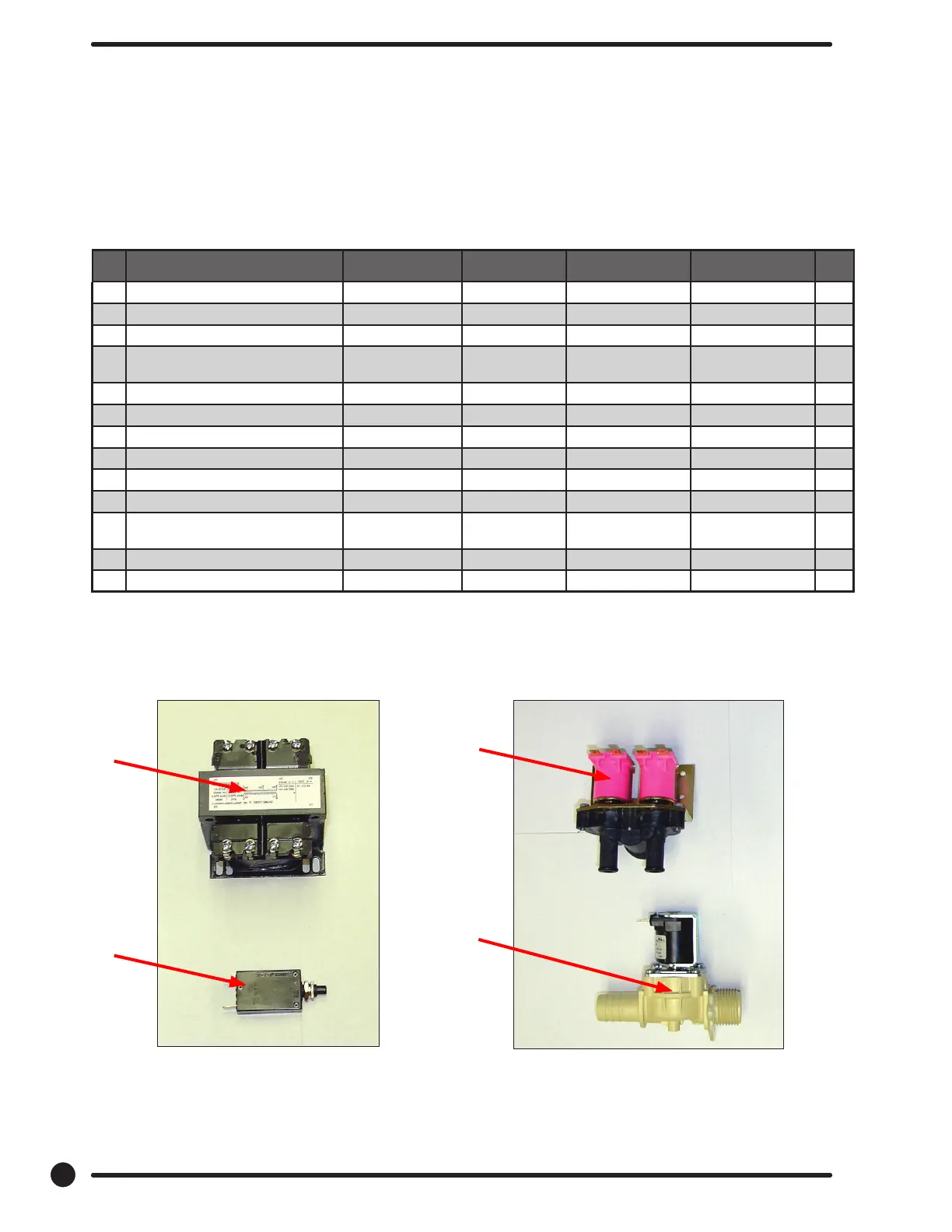

Dexter Laundry T-950 - Page 142

Transformer, Electrical Filter -39 models
Key
Component T-650 T-750 T-950 T-1450
QTY
1 Circuit Breaker 519 8 -211- 0 02 5198-211- 0 02 5198 -211- 002 5198 -211-002 1
* Instructions, Transformer Connect 8507-449- 002 8507-449-002 8507-449-002 8507-449 -002 1
* Manual-Opeators 8514 -290-001 8514-290- 001 8514-290 -001 8514-290-001 1
2 Controls Transformer, 200/250-24V
50Hz.
8711-004-004 8711-004-004 8711-004-004 8711-004-004 1
3 Water Valve 9379-183-013 9379 -183-013 9379-183-013 9379-183-013 2
Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 9118-049-001 9118-049-001 2
Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 9118-049-002 9118-049-002 2
4 Water Valve Single 9379-194-003 9379-194-003 2
Diaphragm Mueller 9118-055-001 9118-055-001 1
Wiring Label , Schematic 9508-027-001 9508-029-001 9508-030-001 9508-032-001 1
Wiring Harness, Power Terminal
Block
9628-001-001 9628-001-001 9628-001-001 9628-001-001 1
Wiring Harness Main 9628-002-001 9628-002-001 9628-002-001 9628-002-001 1
Hose Assembly, Inlet 9990-027-014 9990-027-014 9990-027-014 9990-027-014
WN0650XB-39XO 230 Volts 50 Hz Single Phase
WN0750XB-39XO 230 Volts 50 Hz Single Phase
WN0950XB-39XO 230 Volts 50 Hz Single Phase
WN01450XB-39XO 230 Volts 50 Hz Single Phase
