Dexter Laundry T-950 - Page 144

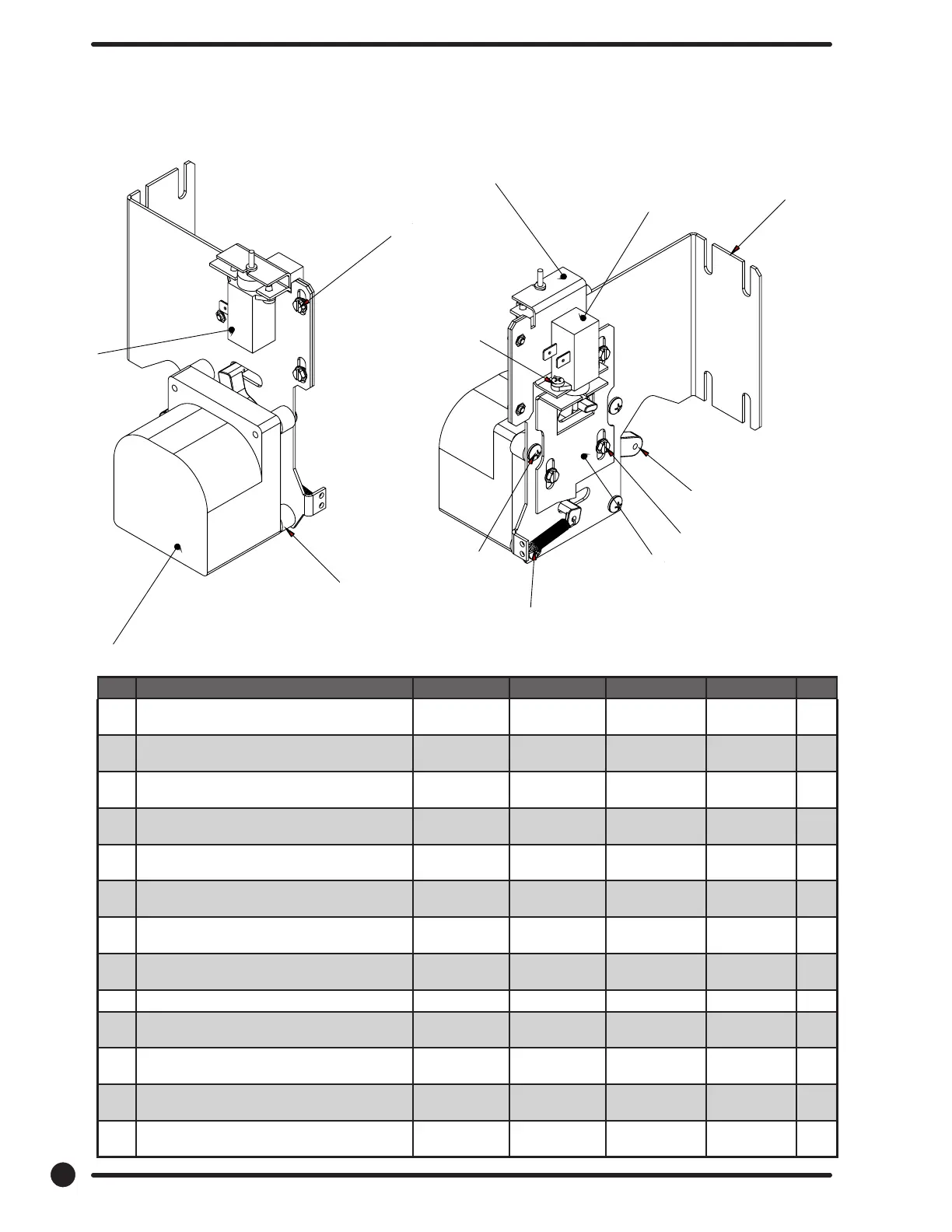

Gear Motor Door Lock Assembly 24VAC
1
6
2
9
5
9
3
7
11
4
8
6
10
Key Description T-650 T-750 T-950 T-1450 QTY
* Actuator Assembly (Includes 1-10, Rod NOT
included)
9892-015-002 9892-015-002 9892-015-002 9892-015-
002
1
1 Bracket Assy, Slide - Unlock 9985-190-001 9985-190-001 9985 -190-001 9985-190-
001
1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 9985-189-
001
1
3 Bracket Slide Lock 9029-204-001 9029-204-001 9029-204-001 9029-204-
001
1
4 Spacer, Plastic 9538-157-021 9538 -157-021 9538-157-021 9538-157-
021
4
5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 9001-063-
001
1
6 Thermoactuator - Door Lock Relay 24VAC 9586-001-003 9586-001-003 9586-001-003 9586-001-
003
2
7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 9534-350-
001
1
8 Motor & Gear Assembly 24VAC 9914-137-014 9914-137-014 9914-137-009 9914-137- 009 1
9 Screw -Hxwshrhdslsems, 6-32 x 3/16 9545-044-003 9545-044-003 9545-044-003 9545-044-
003
6
10 Cross Recessed PAn Hd Tapping screw 9545-031-011 9545-031-011 9545-031-011 9545-031-
011
4
11 Screw Pnhdcr, 10-32 UNFx0 .75 9545-012-029 9545-012-029 9545-012-029 9545-012-
029
4
* Rod, Door Lock 9497-225- 017 9497-225-013 9497-225-015 9497-225-
016
1
144
Part # 8533-110-001 11/20
