Dexter Laundry WCAD Series Parts And Service Manual

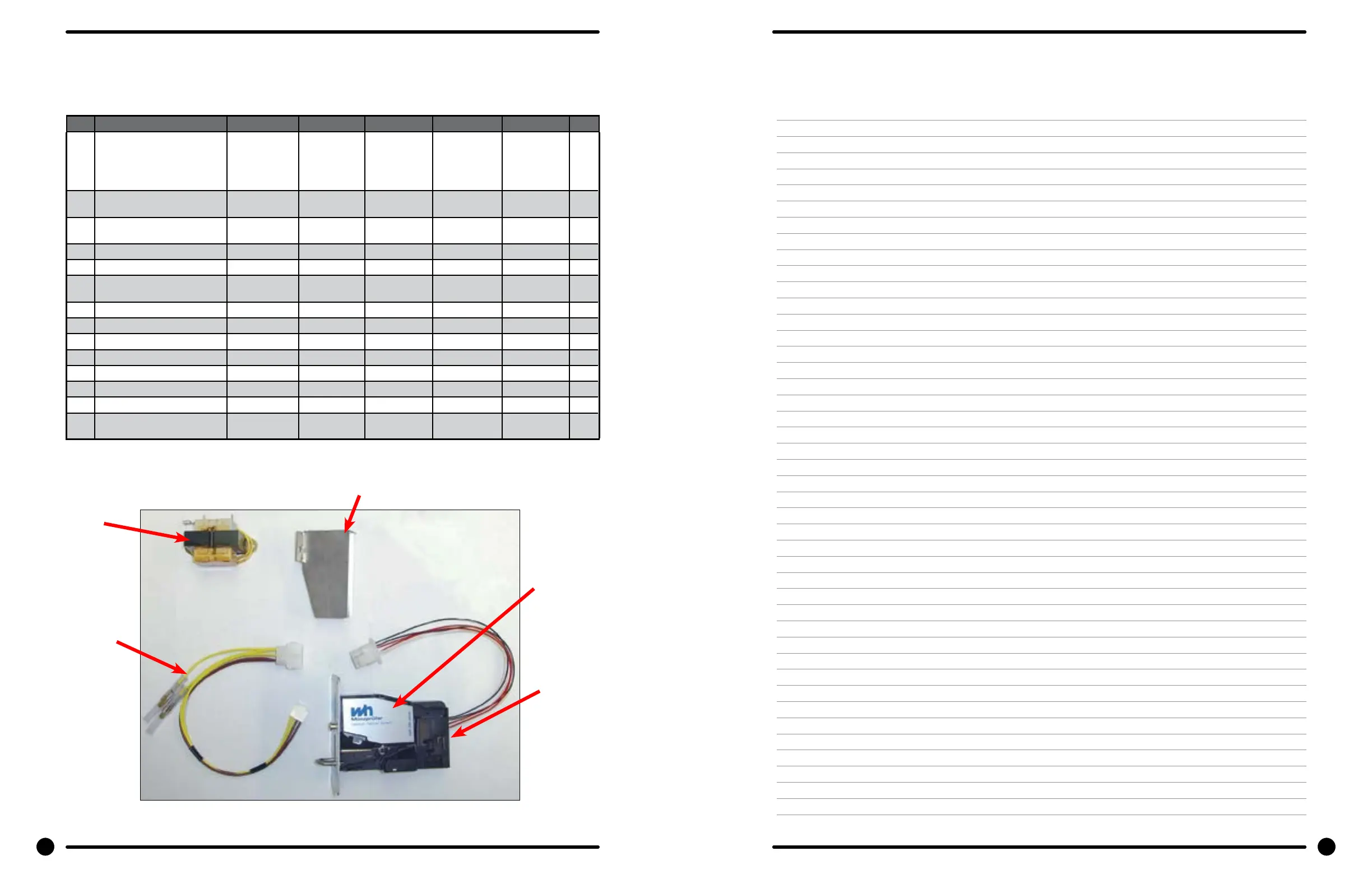

Kit - Electronic Acceptor Conversion for WCAD
(USA and Canada)
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
KIT - Electronic Acceptor
Conversion for WCAD (USA
and Canada)
Contact the Dexter Factory for
Other Countries
9732-285-007 9732-285-007 9732-285-007 9732-285-007 9732-285-007 1
1 Electronic Coin Acceptor (USA
and Canada)
9021-028-001 9021-028-001 9021-028-001 9021-028-001 9021-028-001 1
2 Harness for Electronic Coin
Acceptor
9627-845-001 9627-845-001 9627-845-001 9627-845-001 9627-845-001 1
3 Transformer 120/18VAC 8711-015-001 8711-015-001 8711-015-001 8711-015-001 8711-015-001 1
* Wire Assembly - Blue 8220-001-338 8220-001-338 8220-001-338 8220-001-338 8220-001-338 1
* Wire Assembly - Orange/
White
8220-001-235 8220-001-235 8220-001-235 8220-001-235 8220-001-235 1
4 Coin Chute for Electronic Drop 9119-028-001 9119-028-001 9119-028-001 9119-028-001 9119-028-001 1
* Nut - Hex Elastic Stop 8640-424-002 8640-424-002 8640-424-002 8640-424-002 8640-424-002 1
* Screw, Torx 9545-020-004 9545-020-004 9545-020-004 9545-020-004 9545-020-004 4
* Screw, Hex 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 4
* Label, Informative 6102-017-001 6102-017-001 6102-017-001 6102-017-001 6102-017-001 2
* Label, Warning 8502-730-001 8502-730-001 8502-730-001 8502-730-001 8502-730-001 1
* Instructions, Installation 8507-367-001 8507-367-001 8507-367-001 8507-367-001 8507-367-001 1
5 Catch Spring (for Clean Out
Door)
9534-367-001 9534-367-001 9534-367-001 9534-367-001 9534-367-001 1
3
2
4
1
5
121
120 121
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
