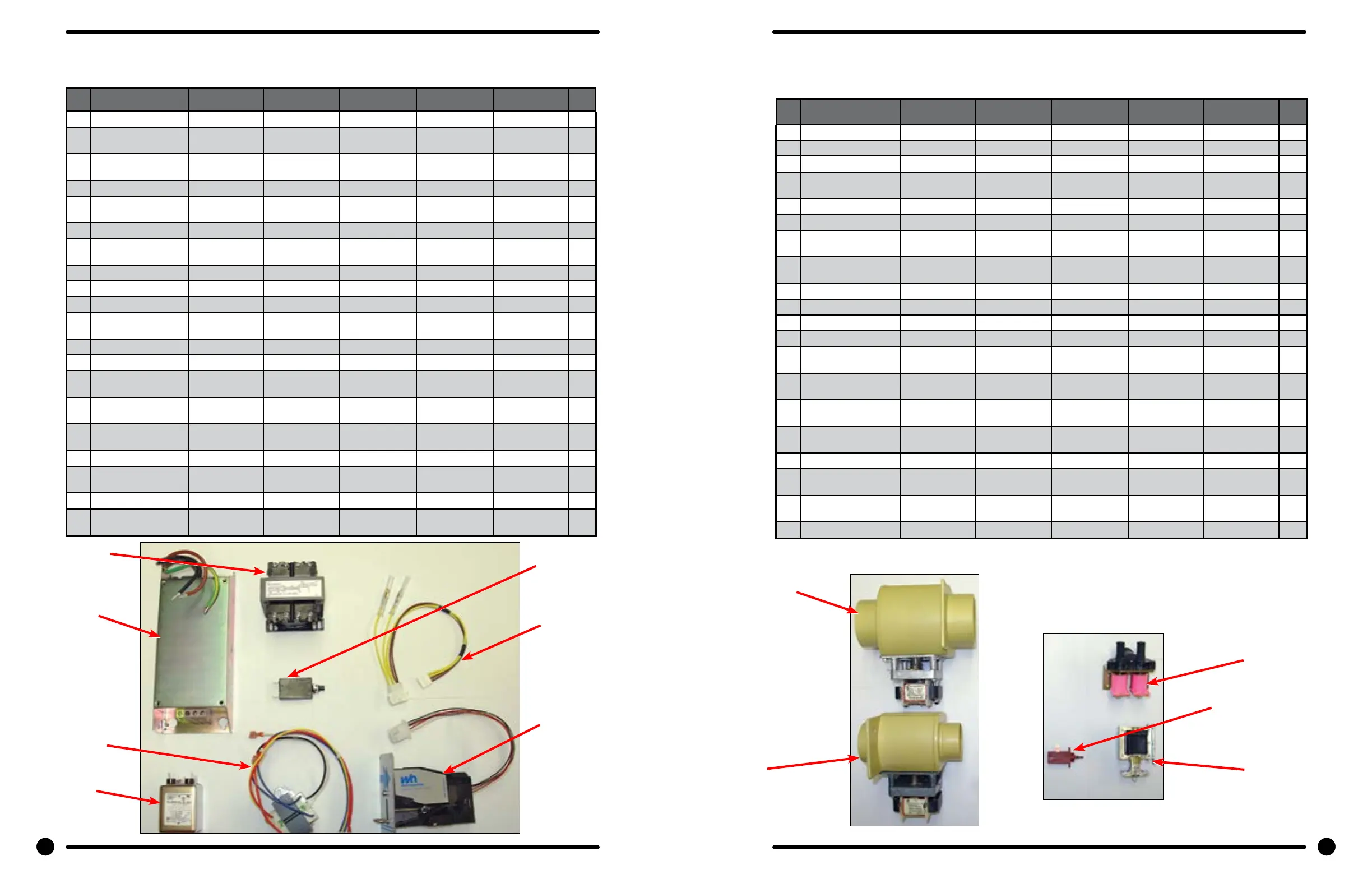

Transformer, Electrical Filter and
Coin Handling -59 models
Key
Component T-750 T-900 T-950 T-120 0 T-1450
QTY
1 Circuit Breaker 5198-211-002 5198-211-002 5198-211-002 1
* Wire Assembly Black
/ Red
8220-001-232 8220-001-232 8220-061-003 1
* Wire Assembly Black
/ Blue
8220-001-233 8220-001-233 8220-061-004 1
* Wire Assembly Red 8220-001-282 8220-001-282 8220-001-282 1
* Wire Assembly Black
/ Blue
8220-065-007 8220-065-007 8220-065-007 1
* Wire Assembly Red 8220-065-011 8220-065-011 8220-065-011 1
* Instructions, Trans-
former Connect
8507-230-003 8507-230-003 8507-230-003 1
* Owners Booklet 8514-116-001 8514-116-001 8514-120-001 1
* Nut #8-32 8640-412-005 8640-412-005 8640-412-005 13
* Nut #10-32 8640-413-002 8640-413-002 8640-413-002 28
*
Lockwasher - Extooth
#6
8641-582-005 8641-582-005 8641-582-005 2
2 Controls Transformer 8711-008-002 8711-008-002 8711-008-002 1
3 Transformer 8711-009-003 8711-009-003 8711-009-003 1
4 Coin Acceptor - Elec-
tronic
9021-011-001 9021-011-001 9021-011-001 1
5 Harness - Electronic
Coin Acceptor
9627-845-001 9627-845-001 9627-845-001 1
* Bracket Terminal/Fil-
ter Mounting
9029-188-001 9029-188-001 9029-170-001 1
* Stando, Twistloc 9527-002-002 6
* Rear Channel 18lb
OPL
9081-132-002 9081-132-002 1
6 EMI Line Filter 9183-030-003 9183-030-003 1
7 EMI Filter 1 ph, 20
Amp
9183-040-001 9183-040-001 9183-040-001 1
1
5
6
168 169
Part # 8533-073-001 3/22 Part # 8533-073-001 3/22
7
1
6
3
2
5
4
3
2
Water Valve, Drain Valve and
Door Locking -59 models
Key Component T-750 T-900 T-950 T-1200 T-1450 QTY
1 Water Valve 9379-183-013 9379-183-013 9379-183-013 2
3 Drain Valve 3” inch 9379-202-002 9379-202-002 9379-202-002 1
* Filter Mounting Plate 9452-758-001 9452-758-0 01 9452-747- 001 1
* Wiring Label , Sche-
matic
9506-263-001 9506-265-001 9506-271-001 1
* Wiring Label , Diagram 9506-264-001 9506-266-001 9506-272-001 1
5 Solenoid, Door Lock 9536-082-001 9536-082-001 9536-082-001 1
* Screw #10B - 32 X
1/2
9545-008-026 9545-008-026 52
* Screw #10-32 TT
X1/2
9545-008-027 9545-008-027 9545-008-027 3
* Screw #8-32 X3/8 9545-010-006 9545-010-006 9545-010-006 2
* Screw Hex 8B X1/4 9545-045-001 9545-045-001 9545-045-001 4
* Terminal Strip Marker 9558-029-004 9558-029-004 1
6 Thermoactuator, 24V 9586-001-003 9586-001-003 9586-001-003 2
* Wiring Harness, Power
Terminal Block
9627-865-001 9627-865-001 9627-865-002 1
* Controls Assembly -
Trough,
9857-150-005 9857-150-005 9857-151-0 09 1
* Door Lock Solenoid
Assembly
9922-011-005 9922-011-005 9922-011-005 1
* Filter Mounting Plate
Assembly
9982-359-001 9982-359-001 9982-349-001 1
* Nut #6-32 4
* EMI Filter 1 ph, 20
Amp
9183-040-001 9183-040-001 9183-040-001 1
* Filter Mounting Plate
Assembly
9982-359-001 9982-359-001 9982-349-001 1
* Nut #6-32 4
To Next Page
