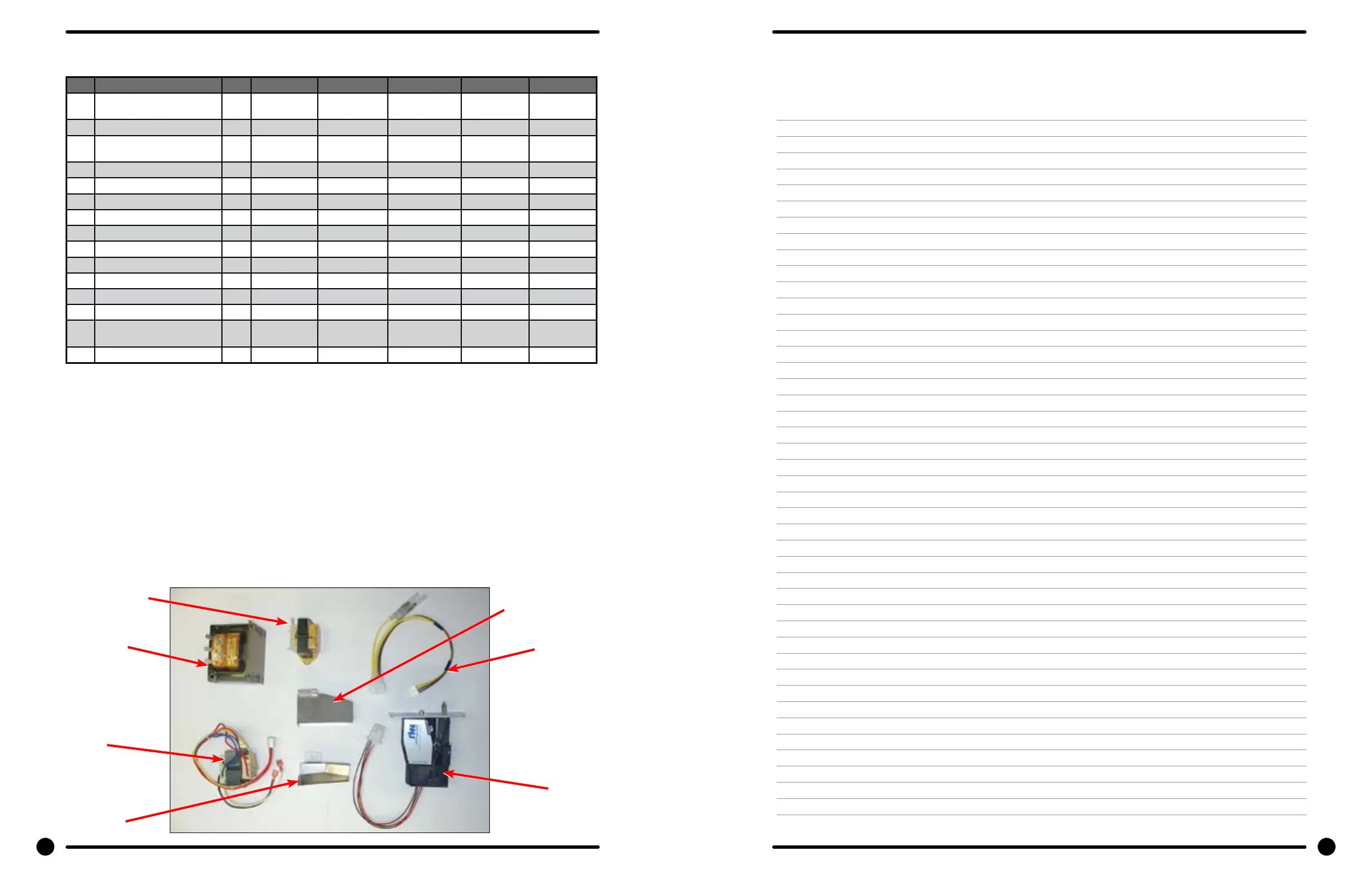

Transformers and Coin Handling -21 Models
KEY Part Description QTY T-750 T-900 T-950 T-1200 T-1450
* Wire Assembly -Orange/
White
1 8220-001-235 8220-001-235 8220-001-235
* Wire Assembly -Blue 1 8220-001-338 8220-001-338 8220-001-338
* Label-Warning, Electronic
Coinacceptor
1 8502-730-001 8502-730-001 8502-730-001
* Lockwasher-Exttooth,#6 4 8641-582-005 8641-582-005 8641-582-005
1 Transformer-120/18vac 1 8711-015-001 8711-015-001 8711-015-001
2 Transformer, Control 1 8711-004-002 8711-004-002 8711-004-002
3 Transformer, Secondary 1 8711-009-002 8711-009-002 8711-009-002
4 Acceptor-Coin,Electronic 1 9021-011-001 9021-011-001 9021-011-001
5 Chute-Coin 1 9119-030-001 9119-030-001 9119-030-001
* Wiringlabel-Schematic 1 9506-132-001 9506-242-001 9506-158- 001
* Wiringlabel-Diagram 1 9506-133-0 01 9506-243-001 9506-159-001
* Screw-Hx 10bx1/4 7 9545-008-001 9545-008-001 9545-008-001
* Screw-Hx ,8bx1/4 6 9545-045-001 9545-045-001 9545-045-001
6 Harness-Electronic Coin Ac-
ceptor
1 9627-845-001 9627-845-001 9627-845-001
* Controlsassembly -Trough 1 9857-150-003 9857-157-006 9857-151-008
To Next Page
