MODEL BMG-535 GRINDER
SECTION 3 GENERAL
21
OPERATING MANUAL
APRIL 2009
Grinding & Polishing
The upper belt tensioner keeps the upper belt tight. By taking off the cover of the
upper part, the tensioner can be accessed.

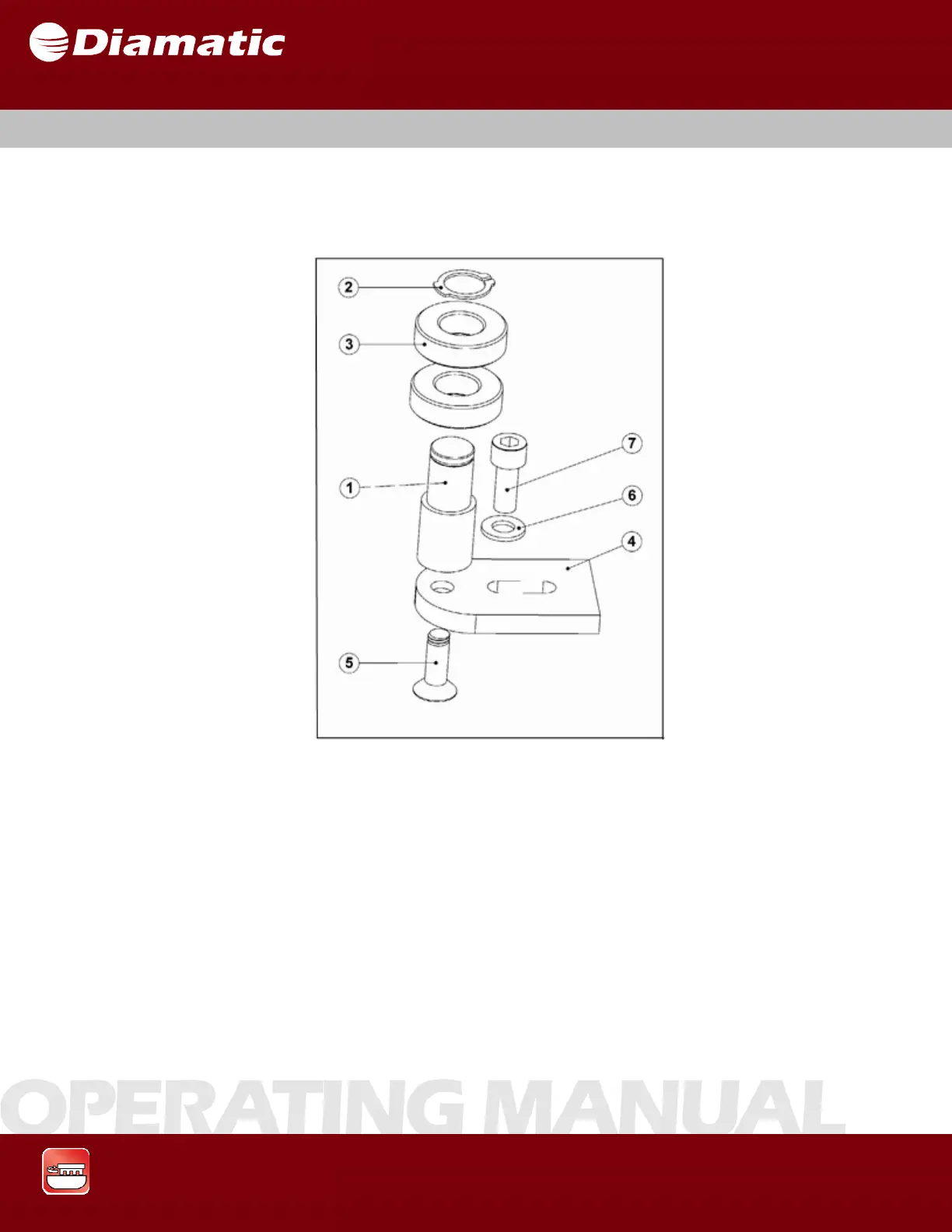

Fig. 3.6
1 Axle 5 Flat Head Socket Cap Screw
2
Retainingring
6 Flat Washer
3 Bearing 7 Socket Head Cap Screw
4 Tensioner plate
3.8 TENSIONER UPPER BELT
