MODEL BMG-535 GRINDER
SECTION 3 GENERAL
22
OPERATING MANUAL
APRIL 2009
Grinding & Polishing
The lower belt tensioner keeps the lower belt tight. By taking off one of the two
inspection hole covers at the bottom of the lower plate the tensioner can be
accessed.

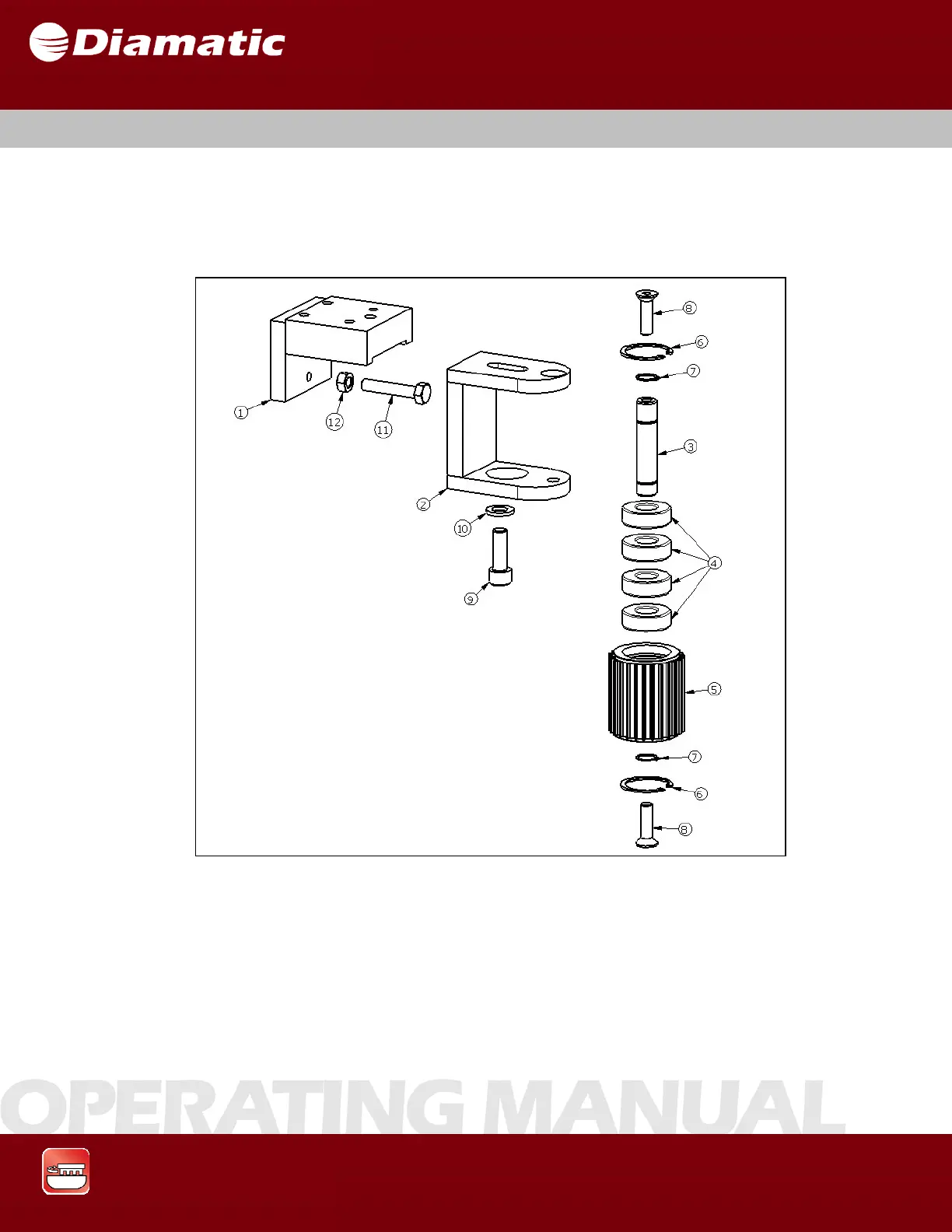

Fig. 3.7
1 Holder 6 Retaining ring 11
HexHeadCapScrew
2 Tensioner 7 Retaining ring 12
HexNut
3 Axle 8 Flat Head Socket Cap Screw
4 Bearing 9 Socket Head Cap Screw
5 Pulley 10 Flat Washer
3.9 TENSIONER LOWER BELT
