MODEL BMG-535 GRINDER
SECTION 3 GENERAL
23
OPERATING MANUAL
APRIL 2009
Grinding & Polishing
There are three pulleys in the machine. Under these pulleys the diamond discs are
fixed. The pulley is driven by the driving pulley through a belt. The pulley is fixed on
the lower housing with screws.

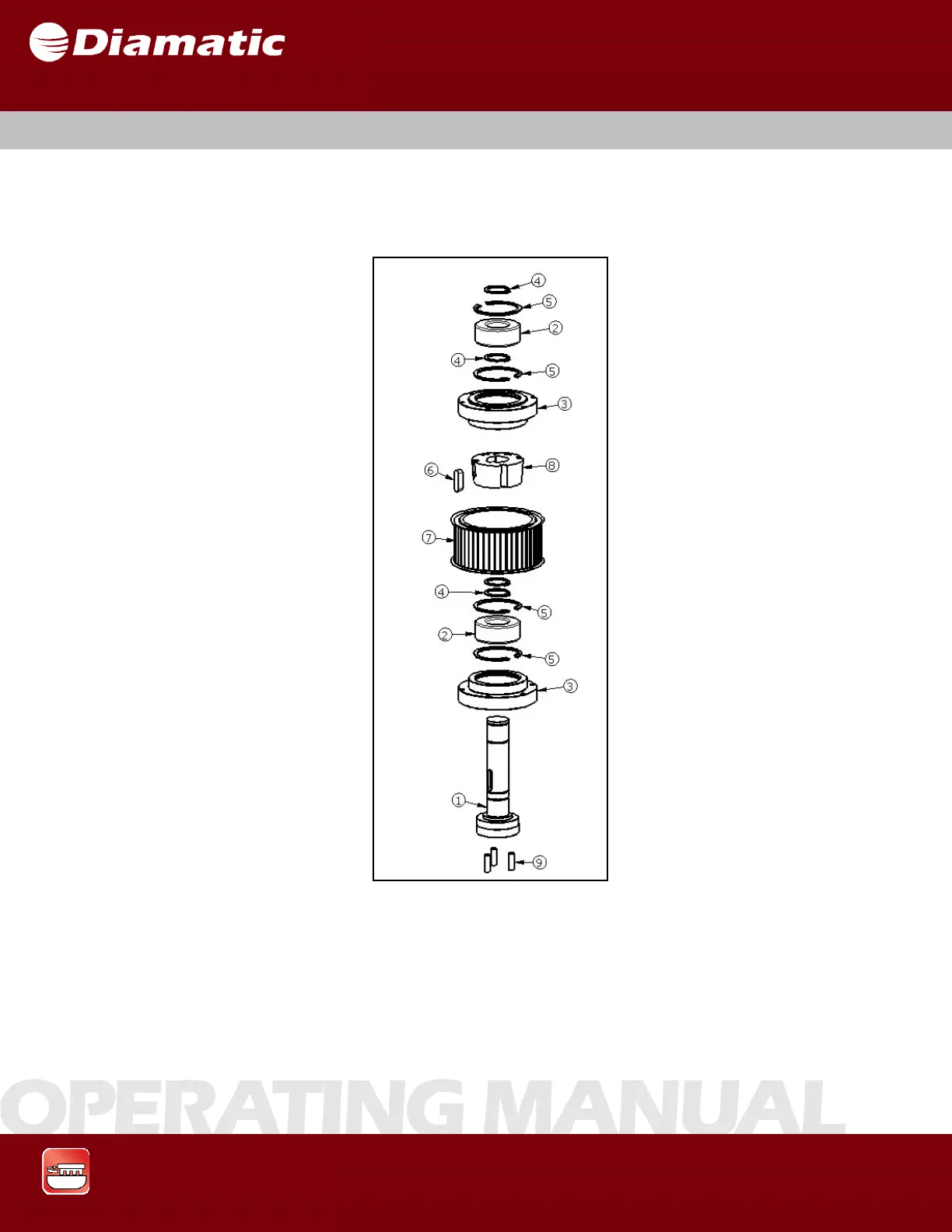

Fig. 3.8
1 Axle 4 Retaining ring 7 Pulley
2 Bearing 5 Retaining ring 8 Taper Lock Bushing
3 Bearing House 6 Key 9 Dowel Pin
3.10 TOOLING DRIVE PULLEY
