The center pulley will slow down the speed of the lower housing. The
six head cap screws connect the pulley with the lower housing.

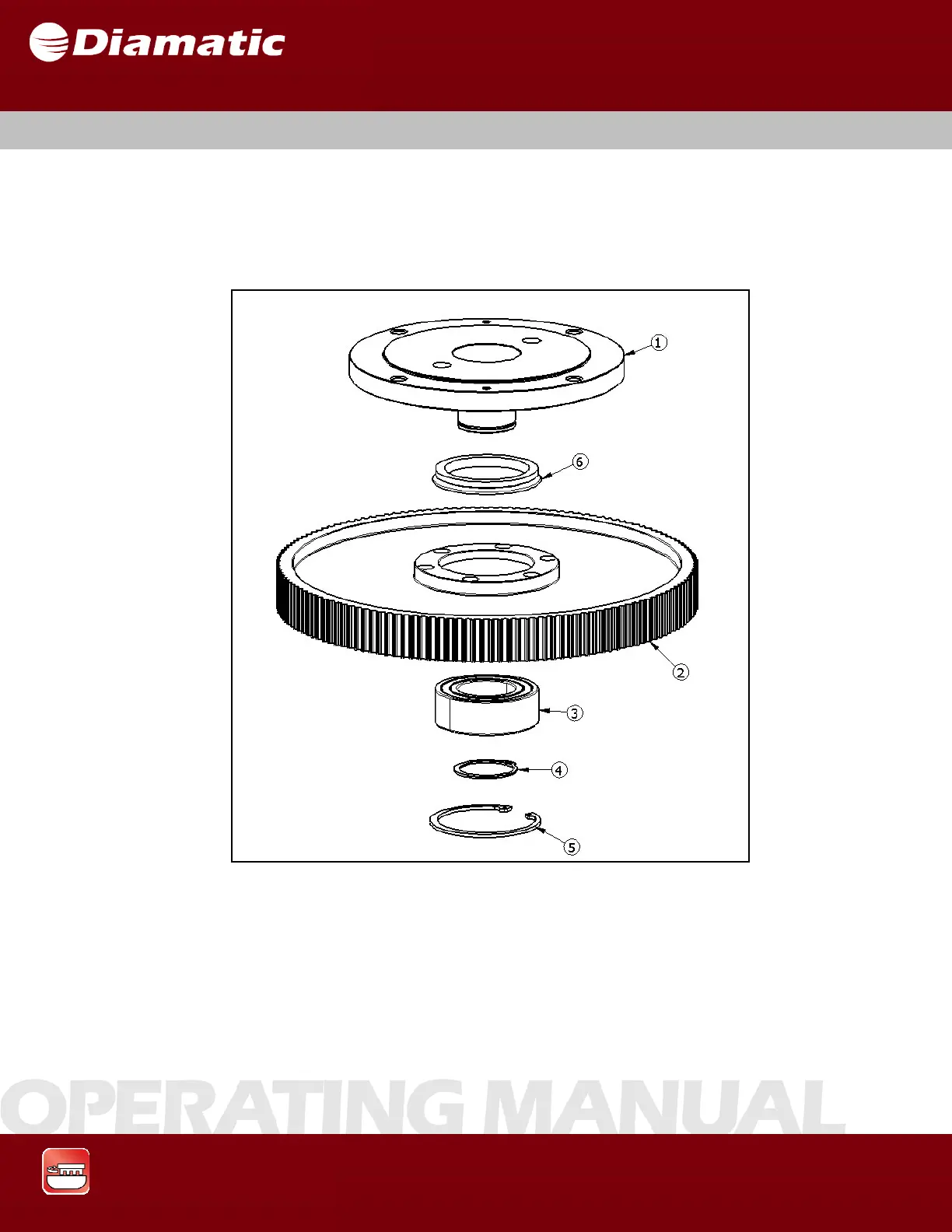

Fig. 3.9
1 Sprocket 4 Retaining ring
2 Pulley 5 Retaining ring
3 Bearing 6 V-Seal
3.11 CENTER PULLEY
