MODEL BMG-535 GRINDER
SECTION 3 GENERAL
26
OPERATING MANUAL
APRIL 2009
Grinding & Polishing
On the driving pulley shaft, there is a coupling which is driven by the electric motor.
The driving pulley drives the three pulleys with a belt. The pulley is fixed on the
lower housing with screws.

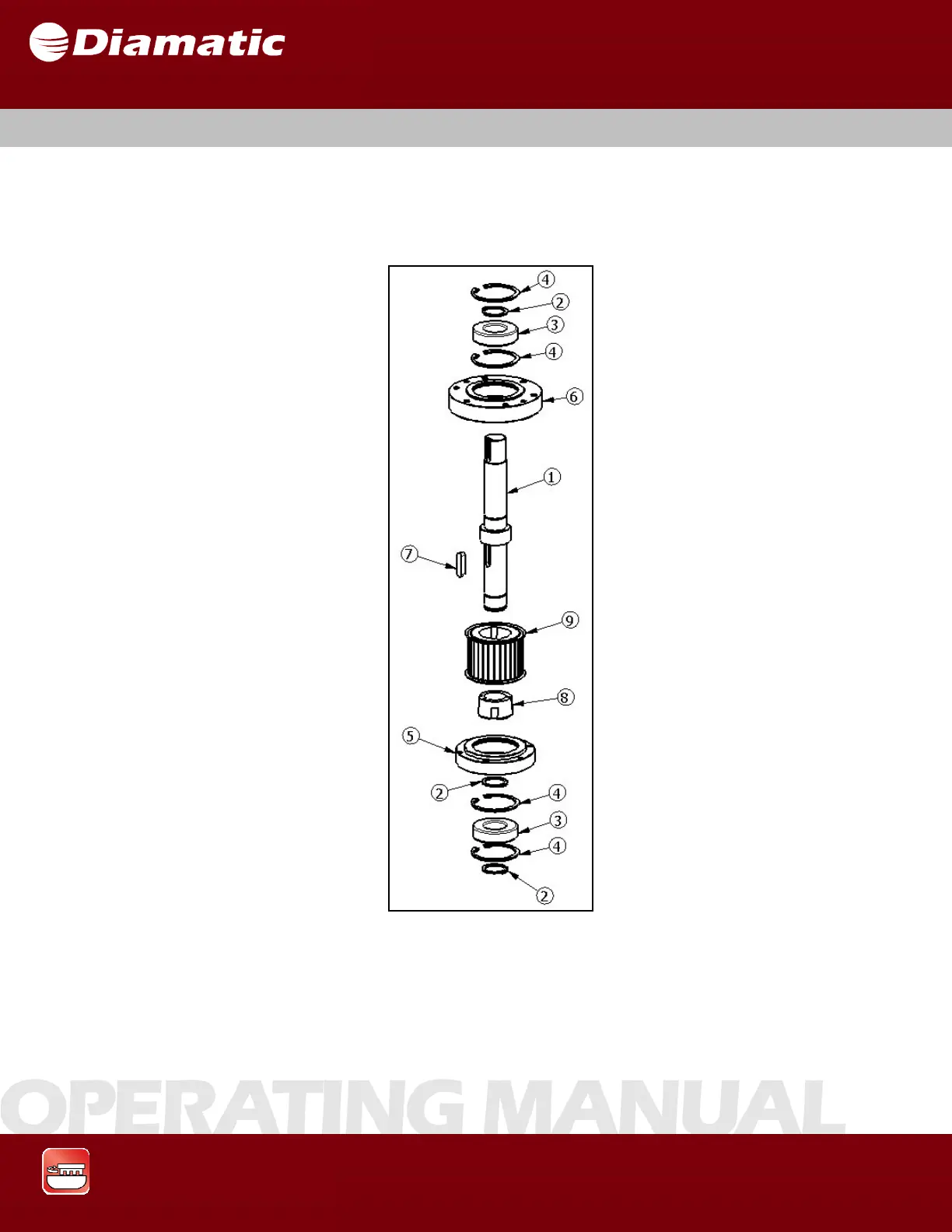

Fig. 3.11
1 Axle 5 Bearing House 9 Pulley
2 Retaining Ring 6 Bearing House
3 Bearing 7 Key
4 Retaining Ring 8 Taper Bushing
3.13 DRIVING PULLEY
