MODEL BMG-535 GRINDER
SECTION 7 MAINTENANCE
51
OPERATING MANUAL
APRIL 2009
Grinding & Polishing

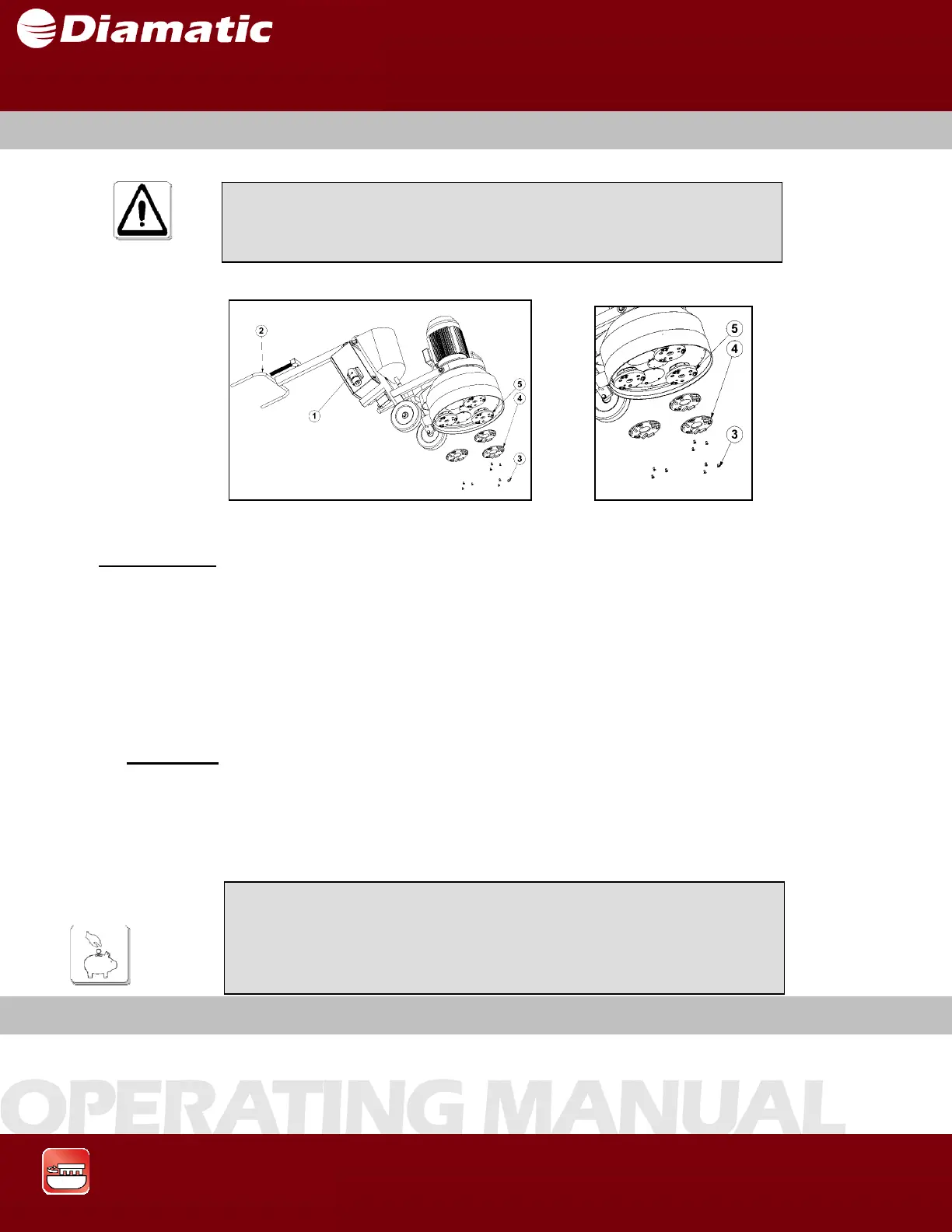

Fig. 7.1
Disassembly:
1. Make sure that the power supply is disconnect from the electrical inlet (1).
2. Tilt the machine to the back with the help of the handgrips (2) and lay it down on the chassis.
You MUST add weight on the handle or otherwise secure the handle to the ground in order to
prevent the machine from tipping forward during change over.
3. Unscrew the three countersunk head screws (3).
4. Remove the grinding disc downwards (4).
Assembly:
5. Clean the diamond holder thorough (5).
6. Adjust the grinding disc in the centering (4).
7. Set in and tighten the countersunk head screw (3).
8. Tilt the machine forwards.
7.4 GRINDING DISC REPLACEMENT/ASSEMBLY
When replacing the grinding disc, also check the condition of the
drive pulley and the diamond tool holders.
Always replace any worn fasteners.
7.5 UPPE
PART
Prior to any repair work being carried out on the machine or its
drives, secure the machine against unintentional activation. See
Section 2.6.
