MODEL BMG-535 GRINDER
SECTION 7 MAINTENANCE
53
OPERATING MANUAL
APRIL 2009
Grinding & Polishing

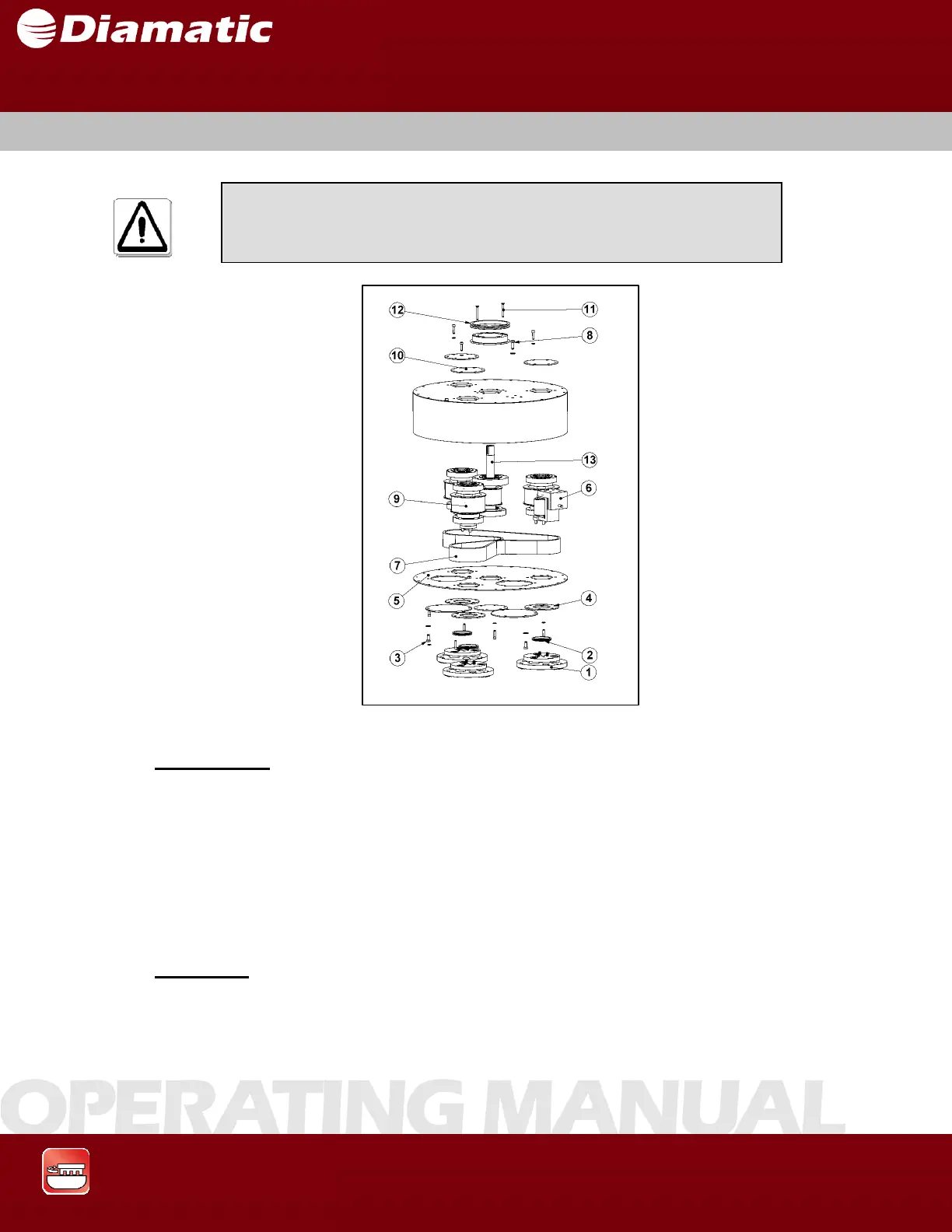

Fig. 7.3
Disassembly:
1. Disassemble the diamond tool holders (1) and take off the v-seal (2).
2. Unscrew the bolts (3) from the underside, remove the rings (4), and the lower
plate (5).
3. Release the force on the lower tensioner (6), to enable the belt (7) to be
removed.
4. Unscrew the bolts (8) on the upper side to enable the pulleys (9), the
tensioner (6), the v-seal (12) and the rings (10) to be removed.
5. Unscrew the bolts (11) to enable the driving pulley (13) to be removed.
Assembly:
Assemble the parts in the reverse order that they have been
disassembled.
Prior to any repair work being carried out on the machine or its
drives, secure the machine against unintentional activation. See
Section 2.6.
7.6 LOWER PART
