Horizontal-Schrumpfgerät
Horizontal Shrinking Device
HS 1100-P
Copyright © Diebold 2017-04 Ersteller: kh

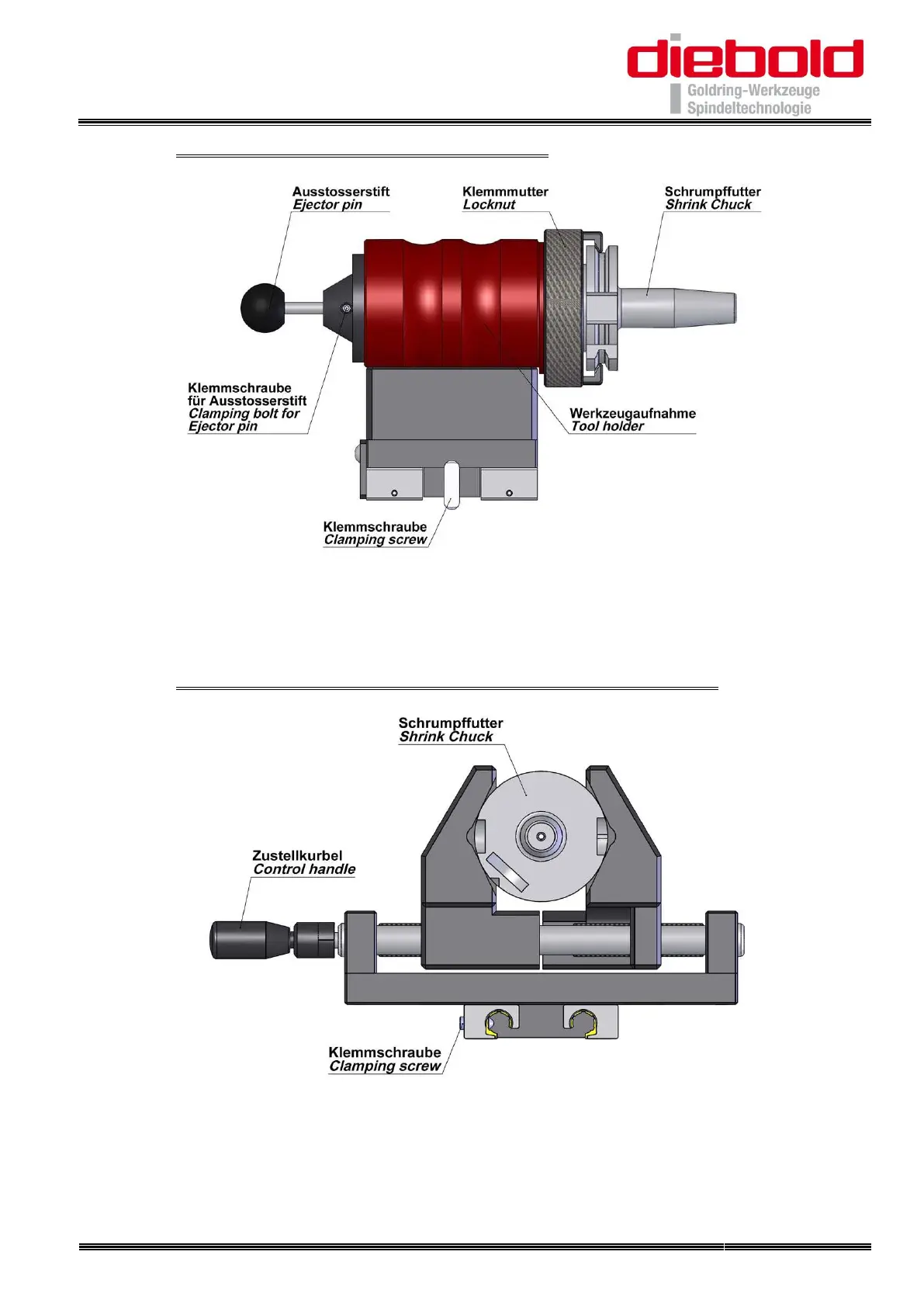

20.2. Tool holder SK / BT 30 to SK / BT 50
The shrink fit chuck is inserted into the tool holder and the lock nut is turned clockwise
while the shrink fit chuck is clamped in the gripper groove or flange. By adjusting the
clamping nut SK or BT shrink fit chucks can be tightened.
20.3. Universal Adaptor for Clamping range Ø12 to Ø100
The shrink fit chucks are clamped in the universal Adaptor by adjusting the jaws with
the control handle. In the jaws there are different entry and contact surfaces available
to clamp diameters of Ø12 to Ø100.
