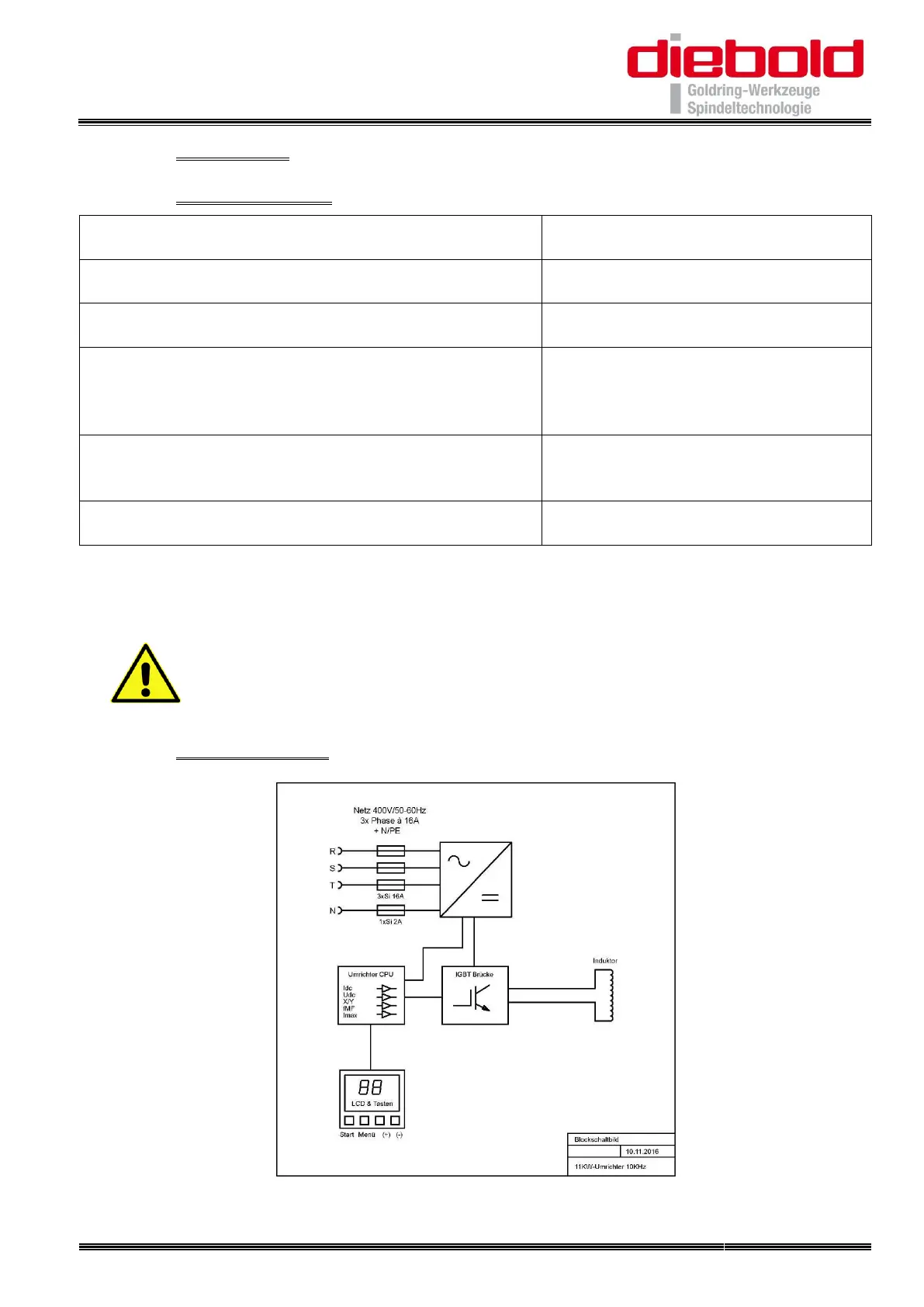

22. Appendix
22.1. Technical data
Voltage / Charging rate, max.
400 V or 480V, 50-60 Hz / 16 A
Nominal power / Working frequency
11 kW / 10 kHz
Dimensions (Depth x Width x Height) / Mass
600 x 470 x 260 / ca. 26 kg
Tool Adaptor for shrink fit chucks
HSK 40 to HSK 100
SK 30 to SK 50
Universal Adaptor
Shaft diameter
ø3 –ø32 (Carbide)
ø6 –ø32 (HSS)
Cutter material
Carbide and HSS
The shrink equipment can be operated with three-phase current either at 400 V or at
480 V. This merely requires a fuse to be exchanged on the large generator board in the
equipment housing.
ATTENTION!
Always disconnect power before do this!
(Disconnect the mains plug!)
22.2. Block diagram
