Rev. 1.2 (12.2021) MINI-CUBE | SERVICE MANUAL 30

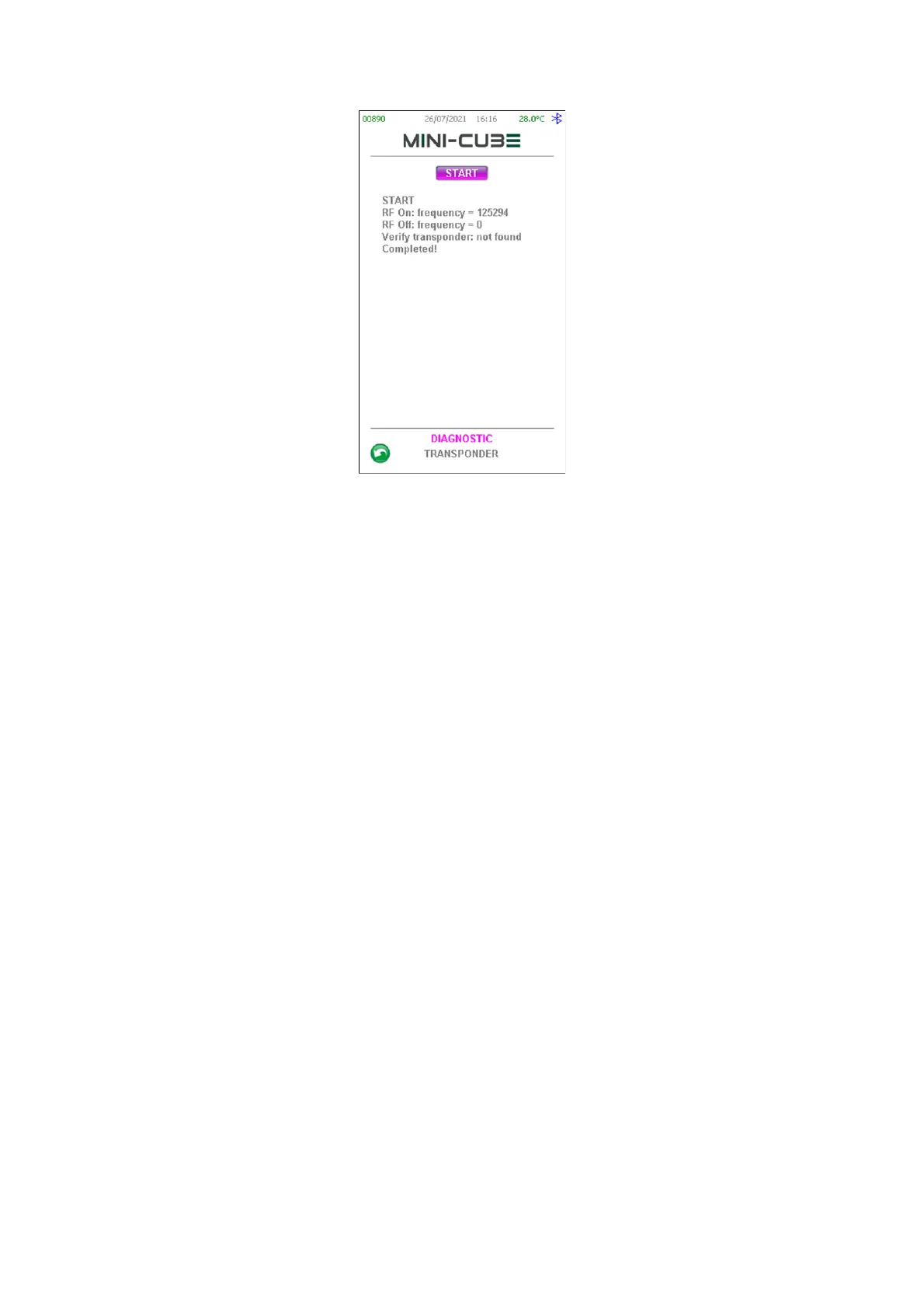

Figure 28
The test is made in two phases: first, the RF system is tested by measuring the frequency
of the RF carrier that must be 125KHz +/- 3KHz. Afterwards, the Check Device
Transponder is checked by reading the number of exams stored in it.
In the example above no check device has been inserted in the appropriate site.
3.1.3.8 Home sensor test
This test reports the status of the Home Sensor of the Sensor Reading Unit.
The status can be:
• Obscured (the carriage is in its home position);
• Free.
3.1.3.9 Sensor tube test
By accessing this menu, it is possible to set the light level of the 4 white LEDs emitters
(Range 0- 1000) and view the light level read by the corresponding Light Sensors.
