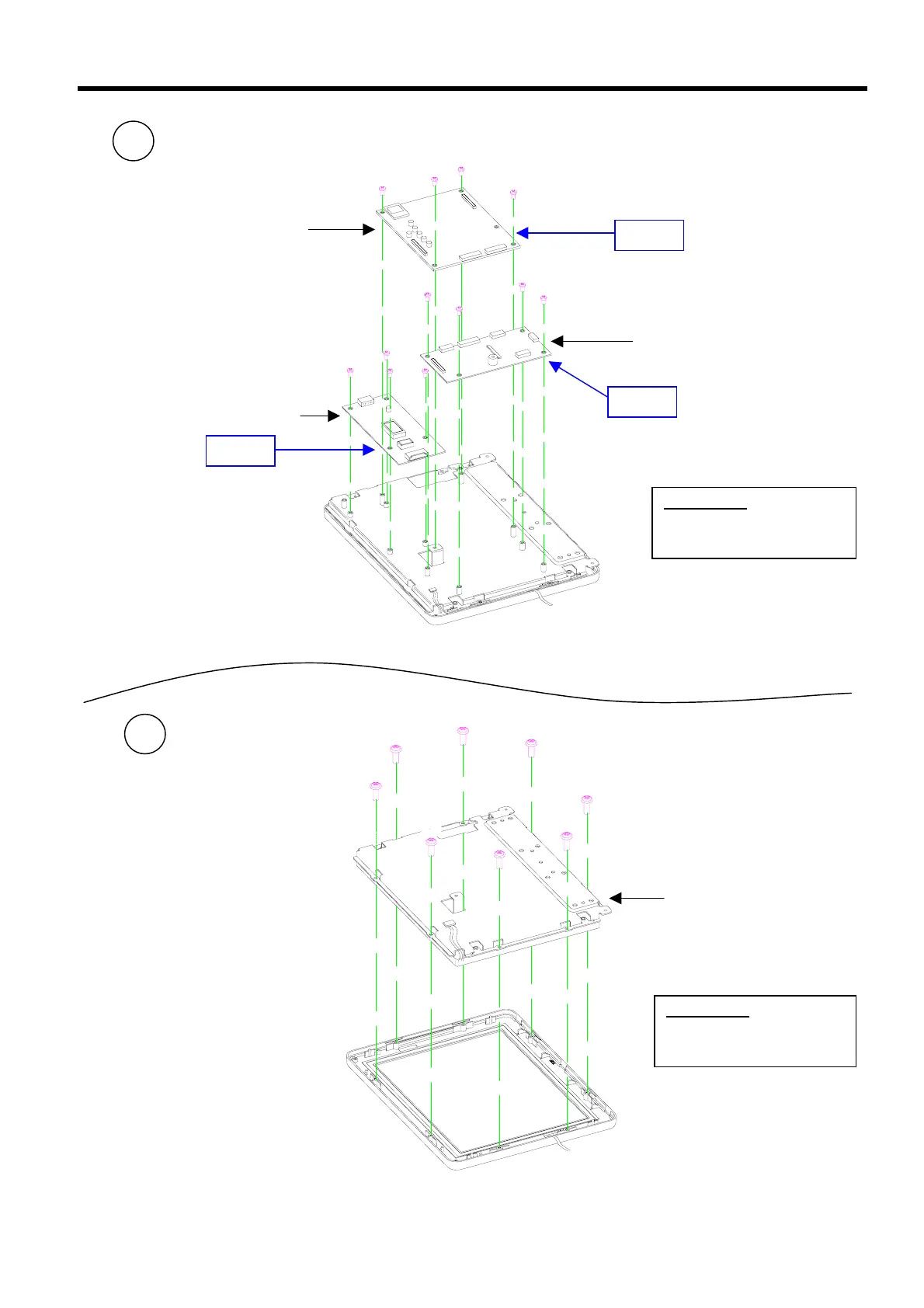

Digi DI-5000 - Internal Board Disassembly

DI-5000_DP-5000_DPS-5000 Service Manual Edition 2
86
Screw Type:
101 – WN1411-KA30-6-TZ (H2)
Screw Type:
101 – Binding Head M3x6
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
101
3
4
45004990300200
DP5000 I/O Blk AB(Touch Relay)
10AXINV0AH5020
DC-AC INV PDA-W00055D50-GP
44016790100100
SM5500 Main BD Blk AA (CPU)
Display Block
Item 1
Item 2
Item 3
