Digi DI-5000 - Power Supply Unit Disassembly

DI-5000_DP-5000_DPS-5000 Service Manual Edition 2
93

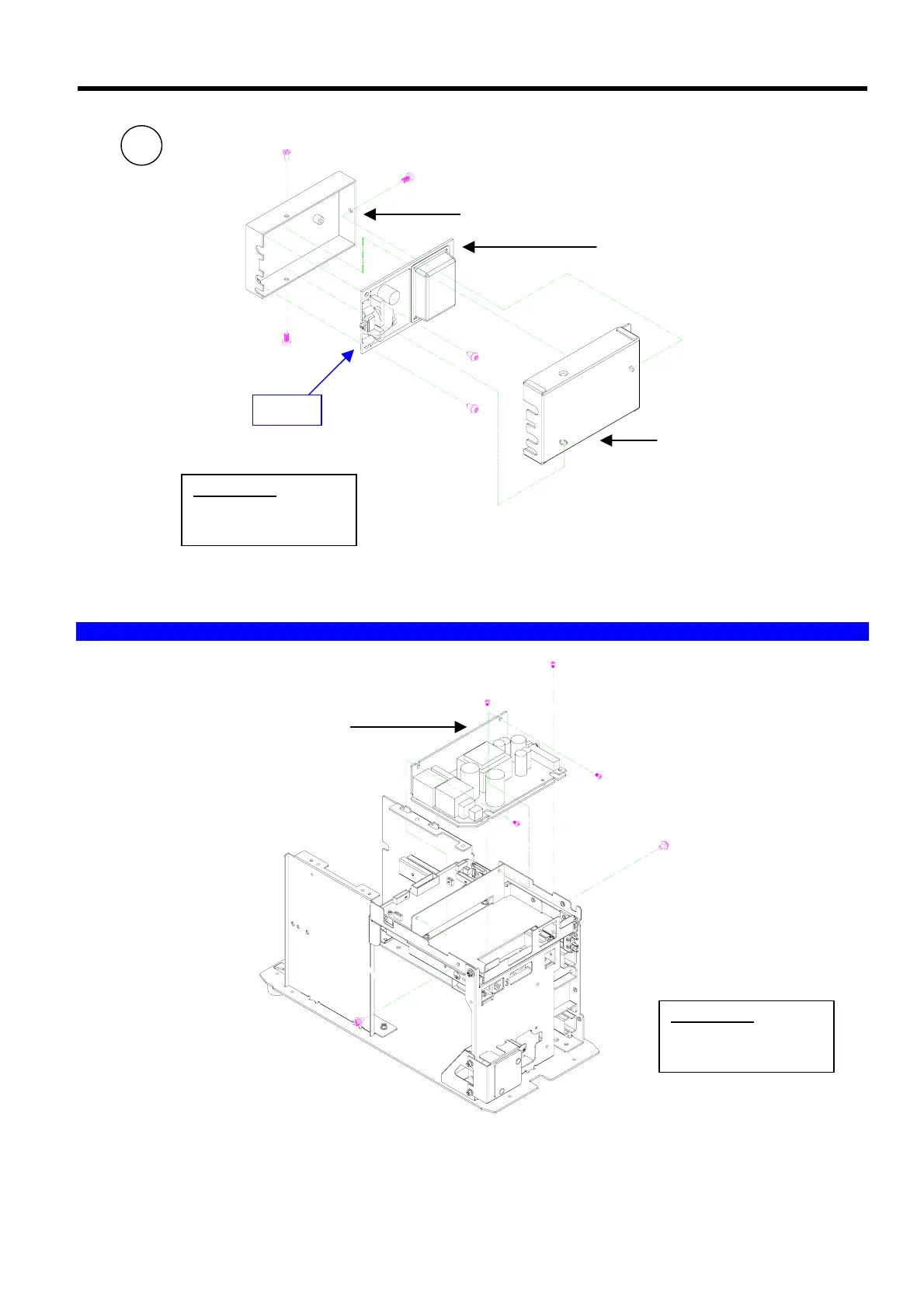

9.10 Disassembly of Power Supply Unit
101
101
101
102
101
102
Screw Type:
101 – Binding Head M3x6
102 – Sems B M4x8
3
101
101
101
101
102
Screw Type:
101 – Binding Head M3x6
102 – Flat Head M3x6
45004901800401
Bracket AD (AD Top Cover)
44016701804700
Bracket BU (AD_BTM_COV)
44016790300400
SM5500 I/F Blk AD (SM_07 AD)
12PNPWUTSD2600
SPS TSD260
Item 5
