Installation
2.1
2. INSTALLATION
2.1. HARDWARE INSTALLATION
2.1.1. TINTORETTO EXTERNAL

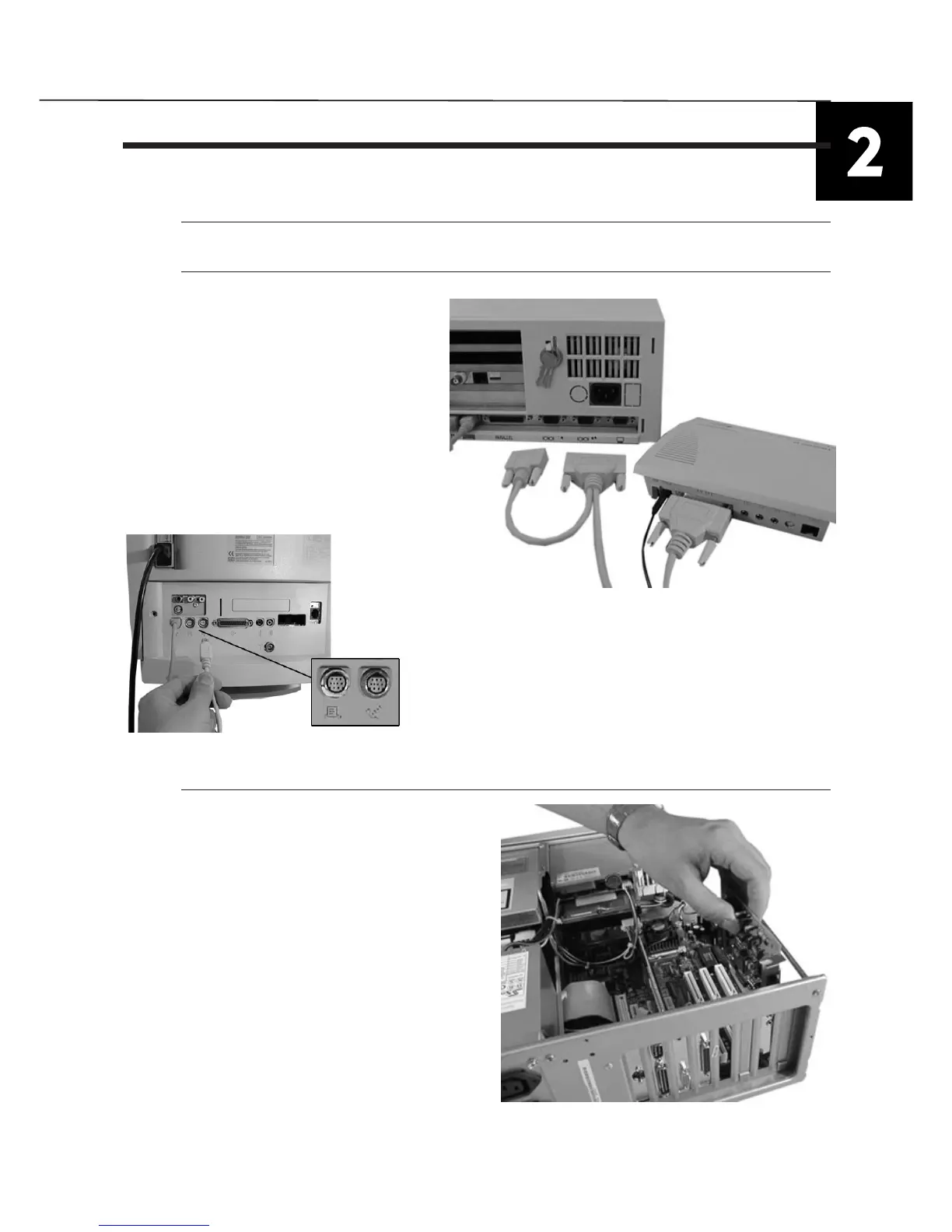

See the following picture to connect your
modem to the COM port of your PC and
the ISDN cable to the BRI socket.
See the following picture to connect your
modem to the GEO port of your
Macintosh and the ISDN cable to the
BRI socket.
After the
cable
installation, connect
the power cord to the main power supply outlet and
switch ON the power switch on the rear panel. Check
that the green LED PWR indicator light is on.
For the next step see the section Software Installation.
2.1.2. TINTORETTO INTERNAL ISA BUS
Caution: Before removing the cover of any
computer, turn-off and unplug the mains
power cord.
Remove the computer’s cover according to the
computer manual. Select any available ISA bus
slot. The internal modem can work in an 8 or
16 bit slot. Remove the slot cover and save
the screw. Carefully insert the modem into the
selected slot. Secure the bracket with the screw
saved earlier. Replace the computer cover and
plug in your computer. Connect the telephone
cable to the telephone line.
For the next step see the section Software Installation.
