Connections:
Once the sensor is fastened, the cables must be connected between the sensor
and dFlow.
The sensor connection cables must always be connected to the dFlow receiver (R)
of each passage, as shown below:
Entrance

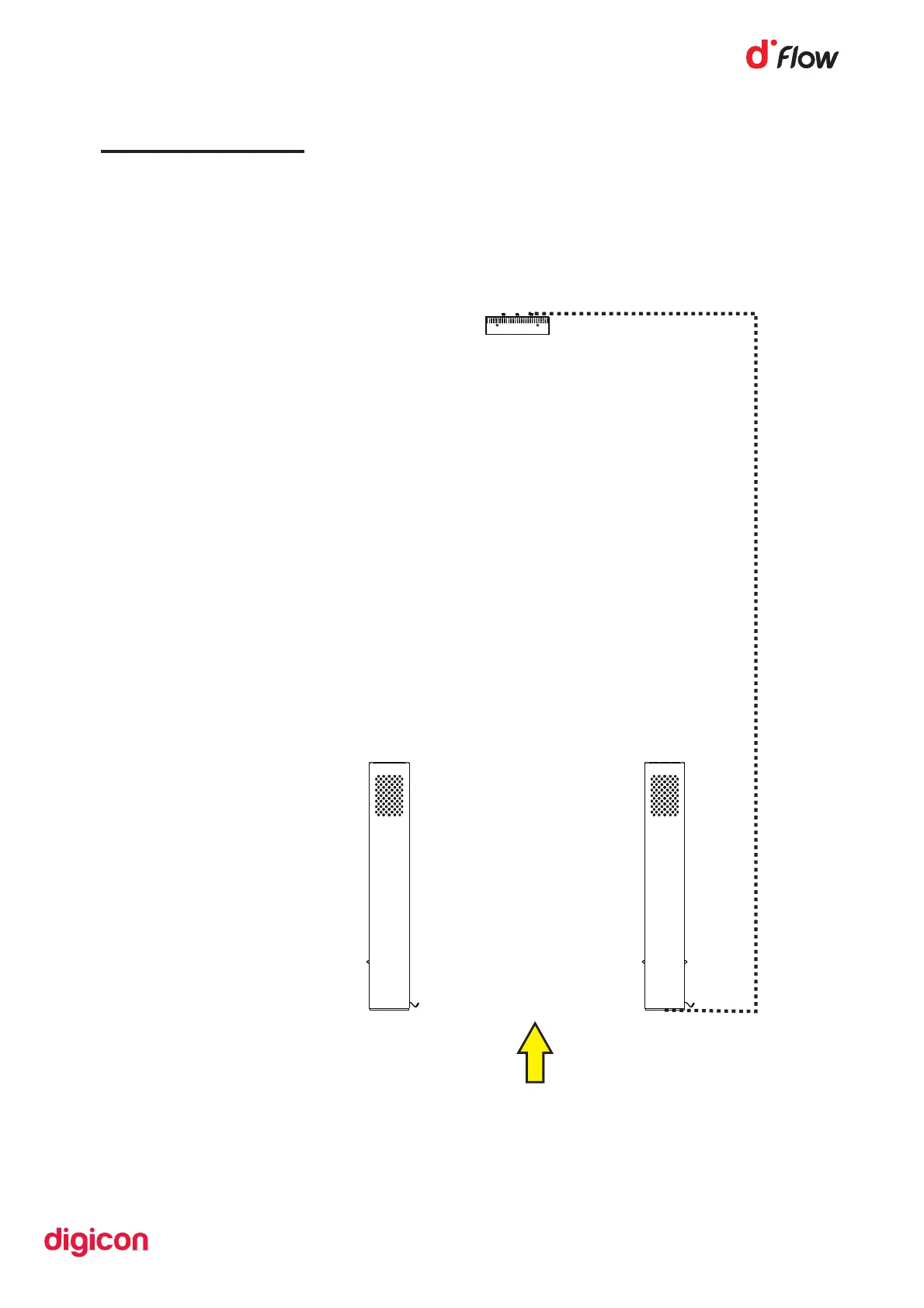

Figure 20
Transmitter
Receiver
