26

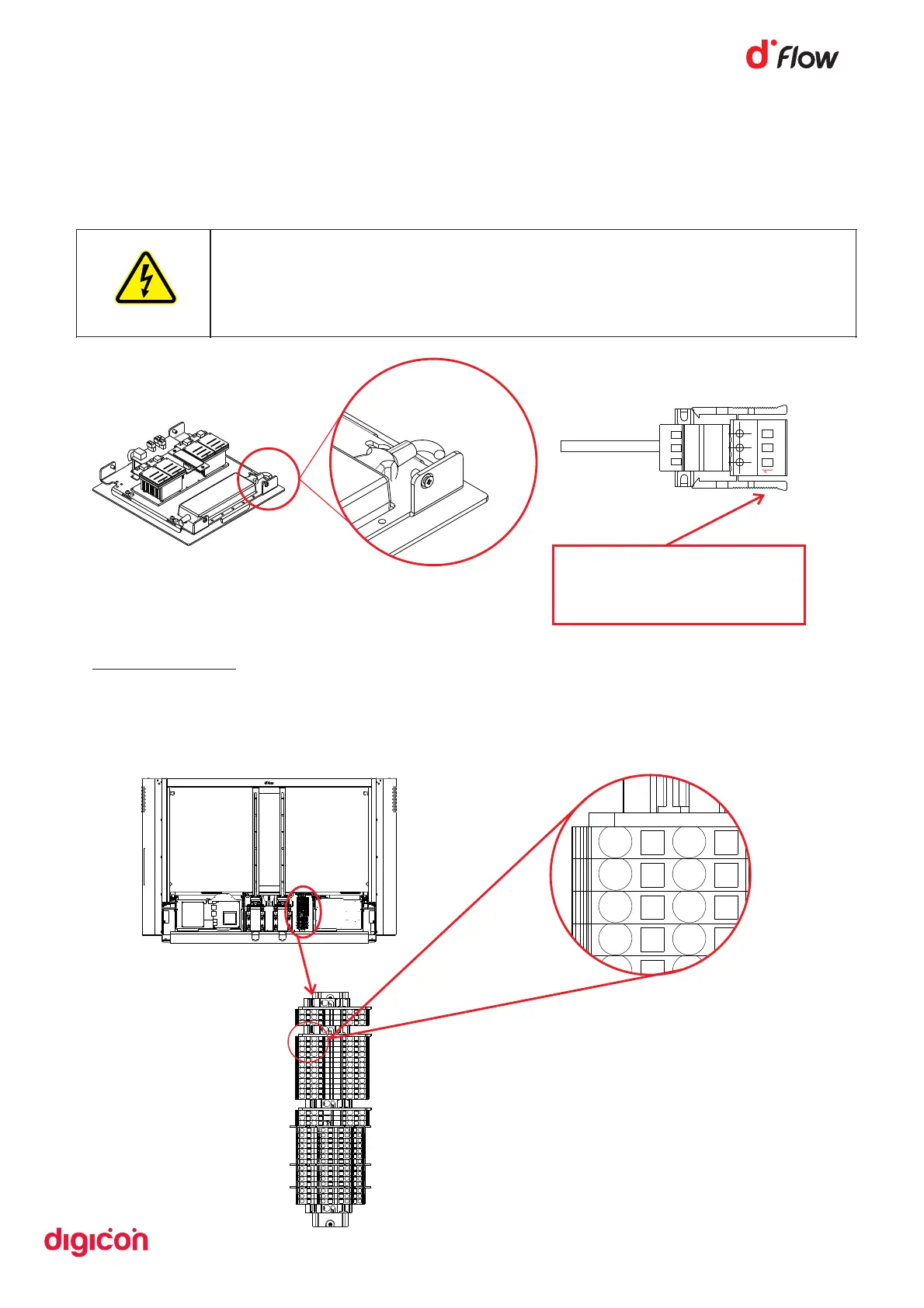

6.5.2 Sensor supply
dFlow has an exclusive output where the power cord must be connected. Follow
the instructions below:
1
Figure 21
Pin 01- green = Ground
Pin 02 - blue = Neutral
Pin 03 - gray = Phase
Sensor power: A three-way cable must be used, considering the pinning below:
After connecting the cable to the sensor, the other end of the cable must be
connected to the receiver (R) side of dFlow, as shown below:
Ground: It must be connected to the green terminal.
Neutral: It must be connected to blue terminal.
Phase: It must be connected to the gray terminal.
Figure 22
G
N
P
WARNING
To reduce risk of electric shock, before servicing, turn off the
equipment's electrical power by switching the circuit breaker to the
OFF position. Refer all servicing to qualified service personnel only.
