Mbox 2 Getting Started Guide46
MIDI Tracks
MIDI tracks provide volume, solo, and mute, in
addition to MIDI input, output, channel, and
program (patch) controls. Figure 9 shows the
controls found in MIDI tracks.

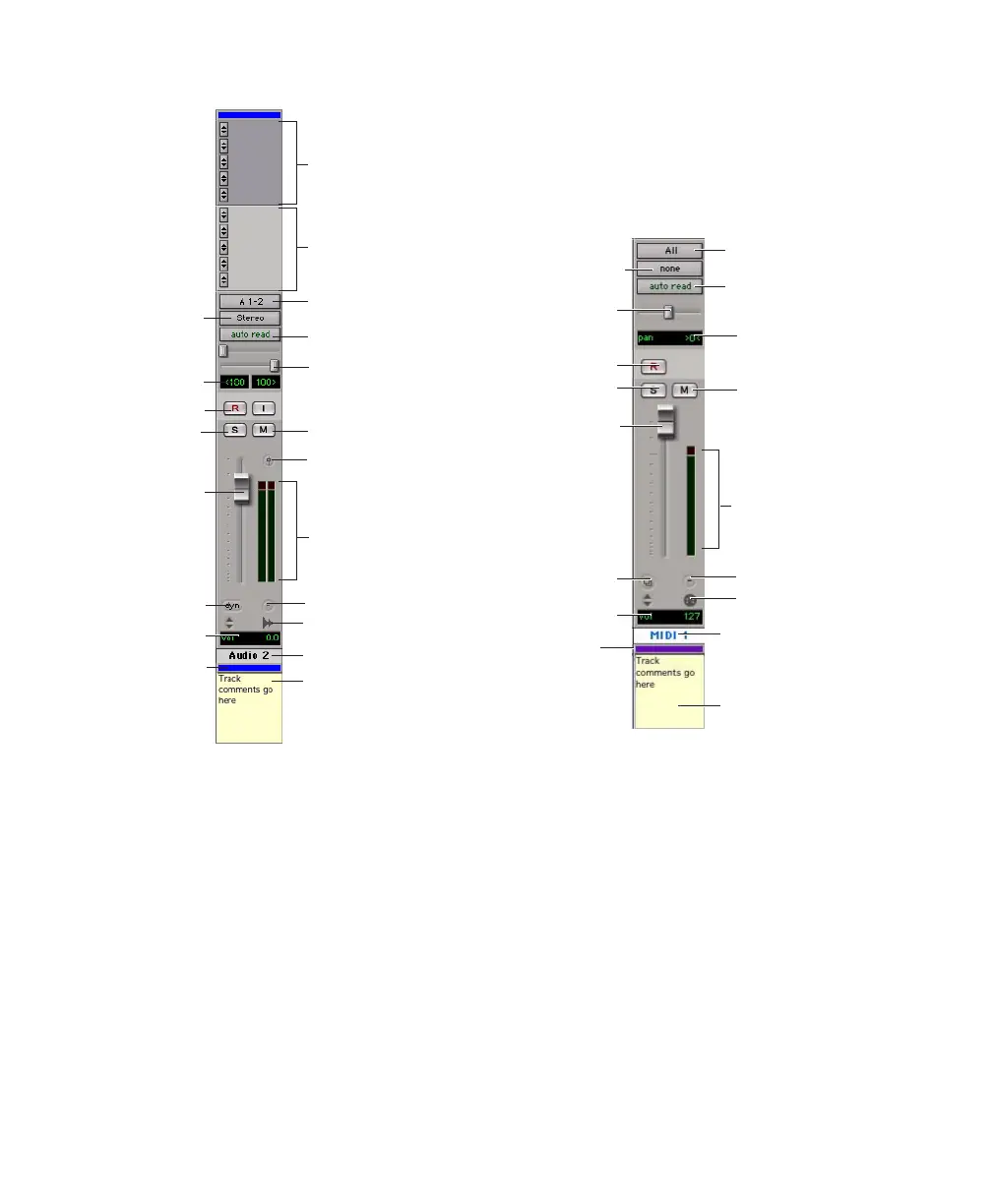

Figure 8. Stereo audio track in the Mix window
Track name
Level meter
Pan sliders
Mute button
Input Path selector
Output Path
Track comment area
Automation mode
Record Enable
Solo button
Group ID
Volume fader
Output window
Voice selector
Inserts (up to 5)
Sends (up to 10)
Track Type indicator
Color bar
button
button
selector
selector
Pan indicator
Volume indicator
Figure 9. MIDI track in the Mix window
MIDI Velocity meter
MIDI Output selector
MIDI Input selector
Automation Mode
selector
Mute button
Solo button
Record Enable
Pan indicator
Pan slider
button
Volume
fader
Track Type indicator
Patch Select
Volume indicator
Track name
Color bar
Track comment area
Group ID
