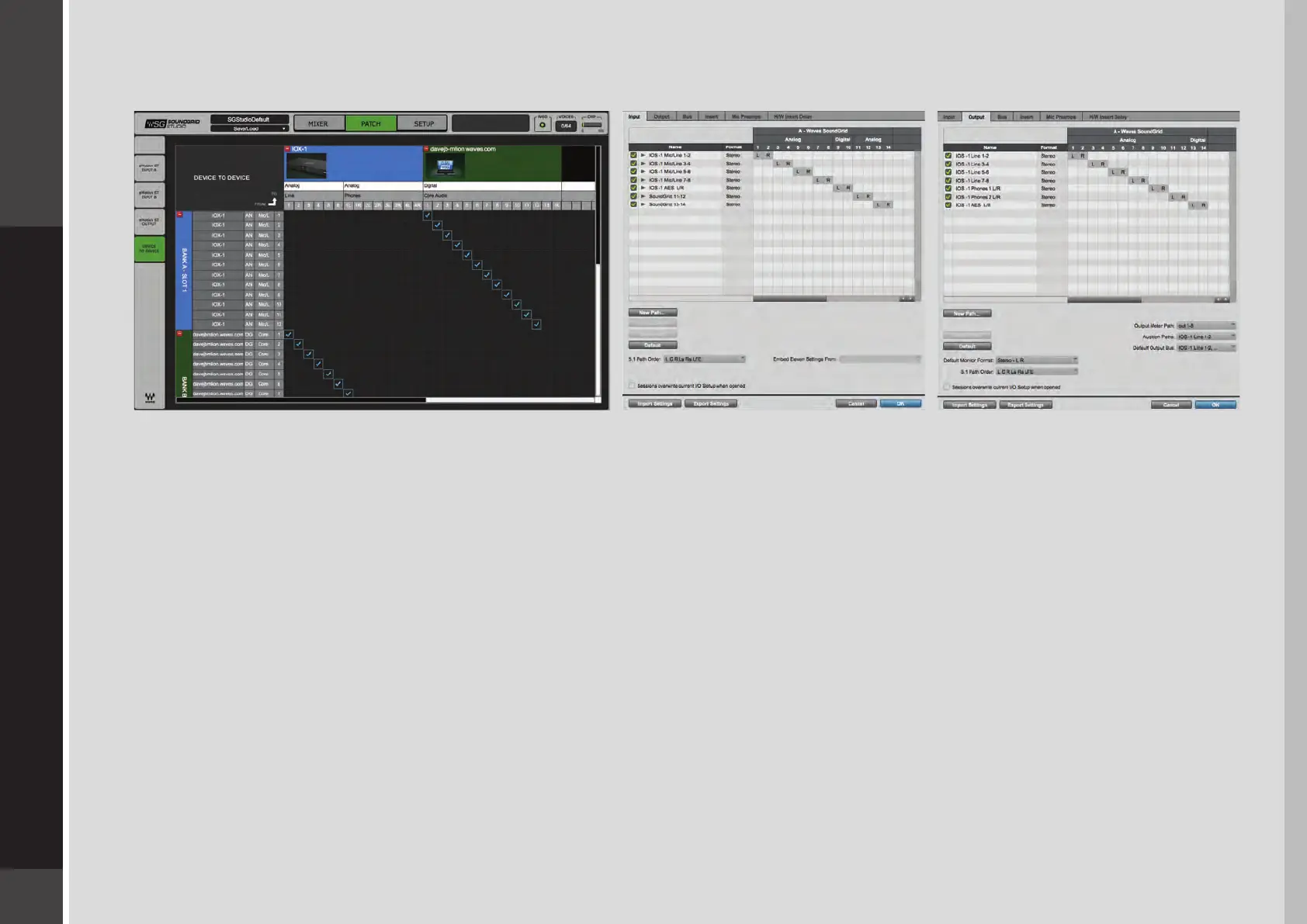

Note the relationship between the SoundGrid Studio Patch page and the DAW I/O Setup page.
In the Patch page (left), IOX analog channels 1–12 are patched to driver channels 1–12.
The arrow on the upper left of the Patch indicates that signal ows from the IOX to the driver.
Now look at the DAW I/O. The 12 driver channels appear at the top, and are patched to DAW input channels 1–12.
