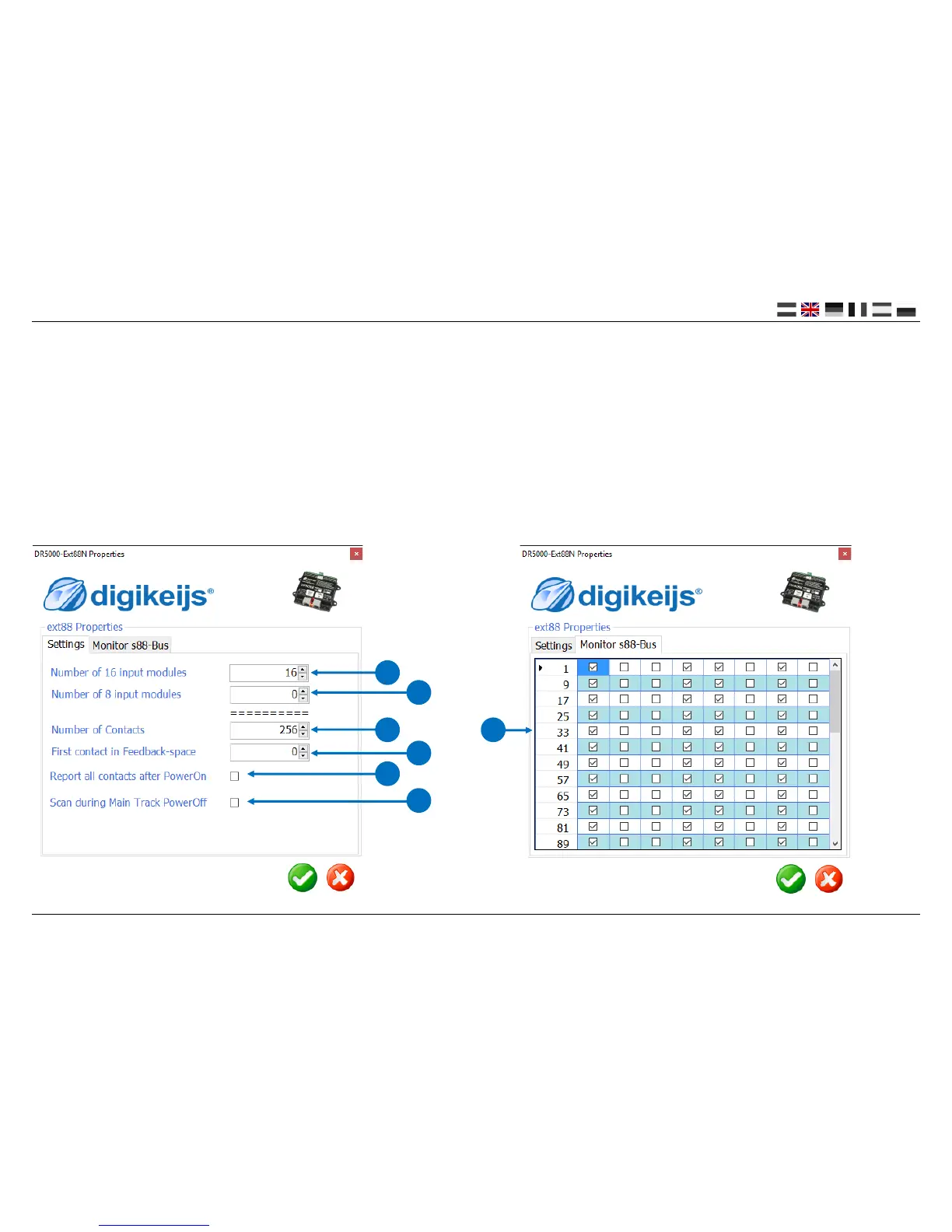

7.1 ext88N
1) The number of connected S88N feedback modules with 16 inputs
2) The number of connected S88N feedback modules with 8 inputs
3) The total number of connected feedback contacts
4) First reported feedback contact of the 1st connected s88 module.
The enre s88 chain can be set throughout the enre reach of 1-2048 feedback modules.
5) When switching on Track-Out (green buon) all inputs are reported through the various busses.
6) Not yet implemented
7) A complete overview of all connected S88N contacts.
