DR5000 DIGICENTRAL
P 52
www.digikeijs.com
10.1 S88N Feedback modules (DR4088CS)

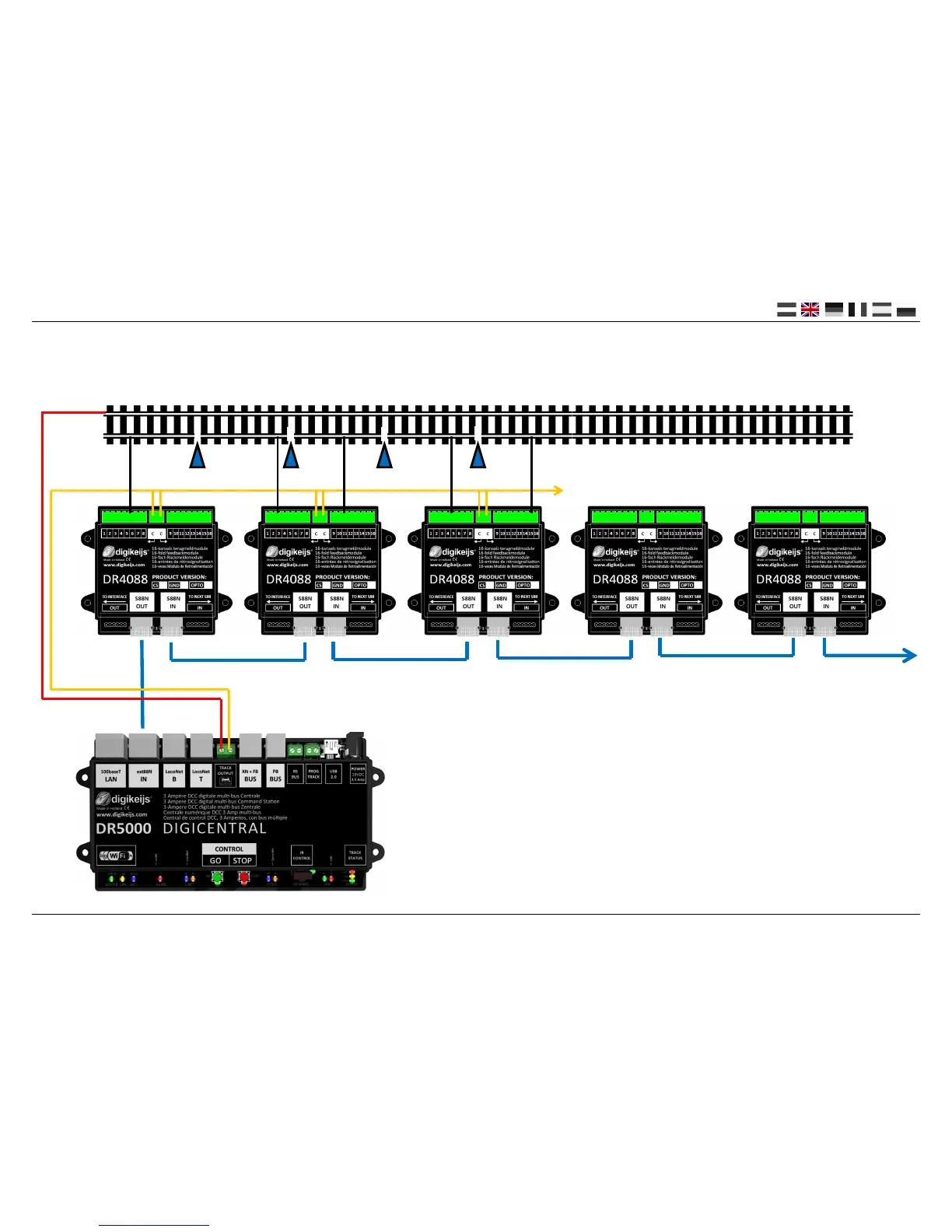

DR5000 in conjuncon with S88N feedback modules
In this example the DR4088CS (current sense/current measurement) feedback modules are
used. These feedback modules are connected to each other with STP cables and with the
DR5000 controller. You can connect a maximum of 16 S88N modules with 16 inputs on the
controller. In total there are 256 feedback points through the S88N/ext88N input.
