10.4 XpressNet® and R-Bus® Feedback modules (DR4088RB)

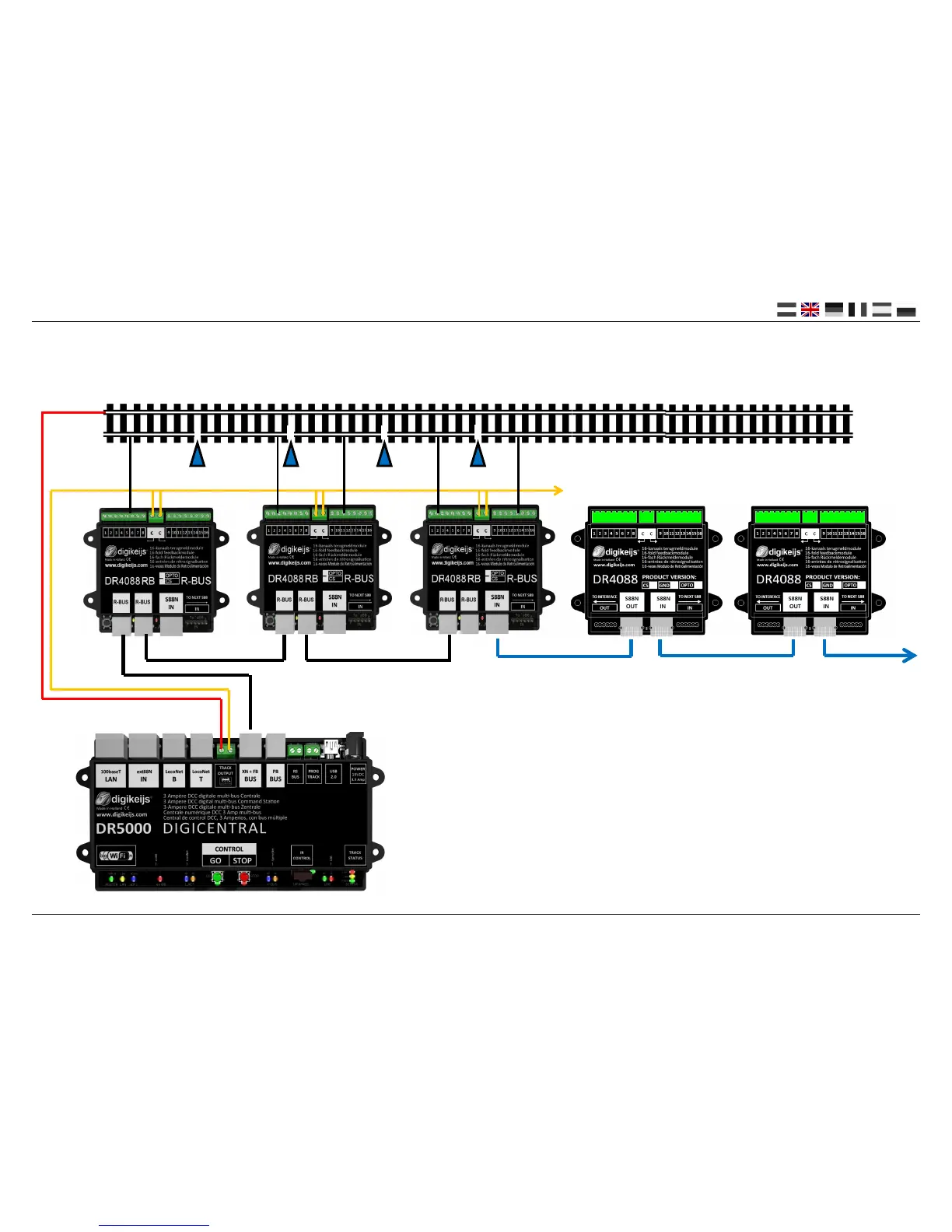

DR5000 in conjuncon with R-Bus® feedback modules (DR4088RB)
In this example the DR4088RB feedback modules are used. These feedback modules are con-
nected to each other with R-Bus cables and to the DR5000 controller. You can connect a
maximum of 10 modules with 16 inputs on the R-Bus® input of the controller. In total there
are 160 feedback points.
