10.3 LocoNet Feedback modules (DR4088LN-CS)

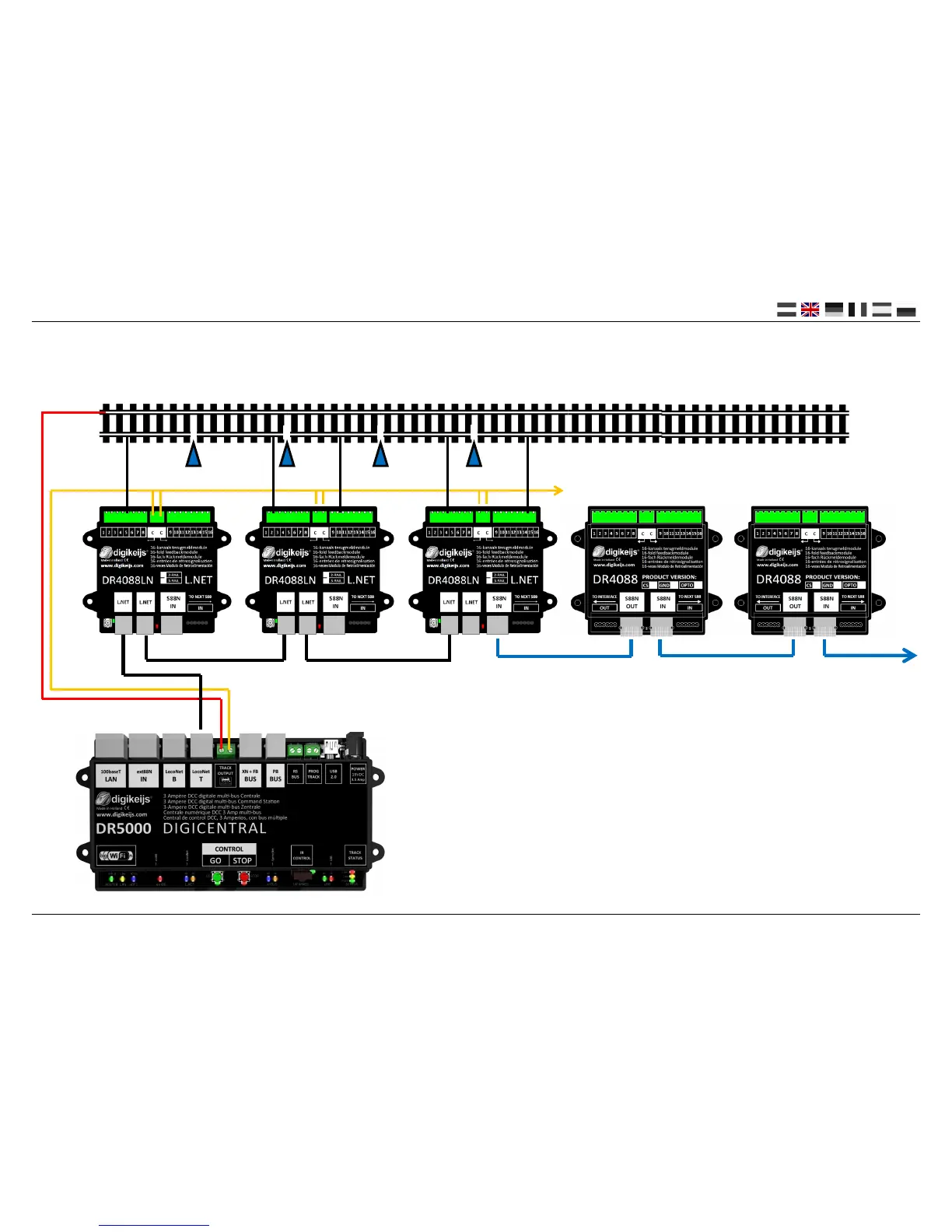

DR5000 in conjuncon with LocoNet feedback modules (DR4088LN-CS)
In this example the DR4088LN-CS (previously DR4088LN-2R) (current sense/current meas-
urement) feedback LocoNet modules are used. These feedback modules are connected to
each other with LocoNet cables and to the DR5000 controller. You can connect a maximum
of 128 modules with 16 inputs to the LocoNet T input of the controller.
In total there are 2048 feedback points. Of these 2048 points you have to remove any other
connected feedback modules through the s88n or R-Bus®.
