7.5 XN + FB BUS

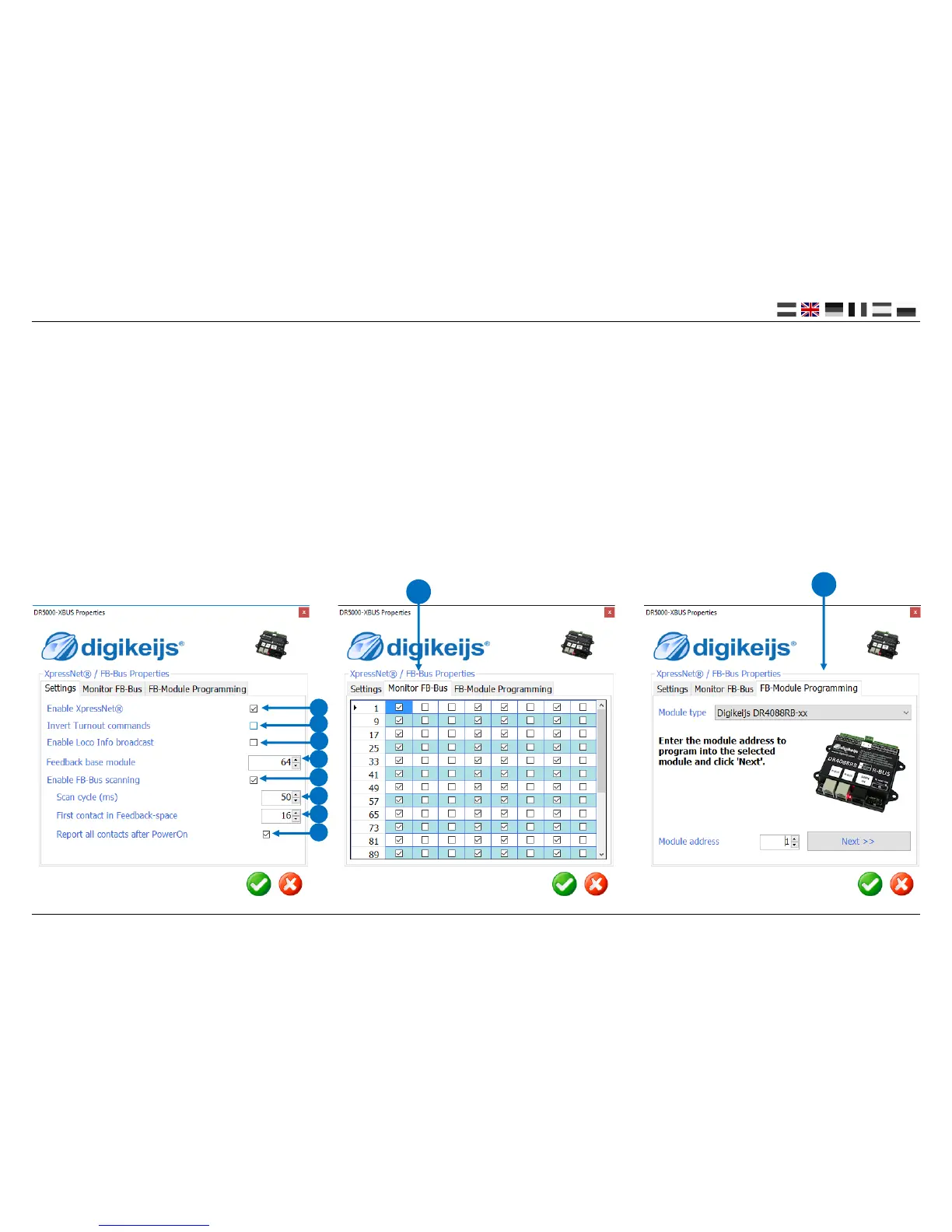

1) Switch XpressNet® on or o.
2) Invert commands.
3) Enable Loco info broadcast (Windigipet)
4) Base module address for feedback messages at the Xpressnet protocol.
5) Switch on the detecon of the connected R-Bus® feedback modules.
6) Time interval between reports of the rbus(r) modules.
7) First reported feedback contact of the 1st connected s88 module.
The enre s88 chain can be set throughout the enre reach of 1-2048 feedback modules.
8) When switching on Track-Out (green buon) all inputs are reported through the various busses.
9) Complete overview of all connected R-Bus® feedback modules.
Once you connect an R-Bus® feedback module, the number of feedback points is automacally detected.
10) Through this Wizard you can address and congure R-Bus® feedback modules.
