Digikeijs DR5013 DIGIREVERSE User Manual

DR5013 DIGIREVERSE
P 5
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
Stand 2021-07-06

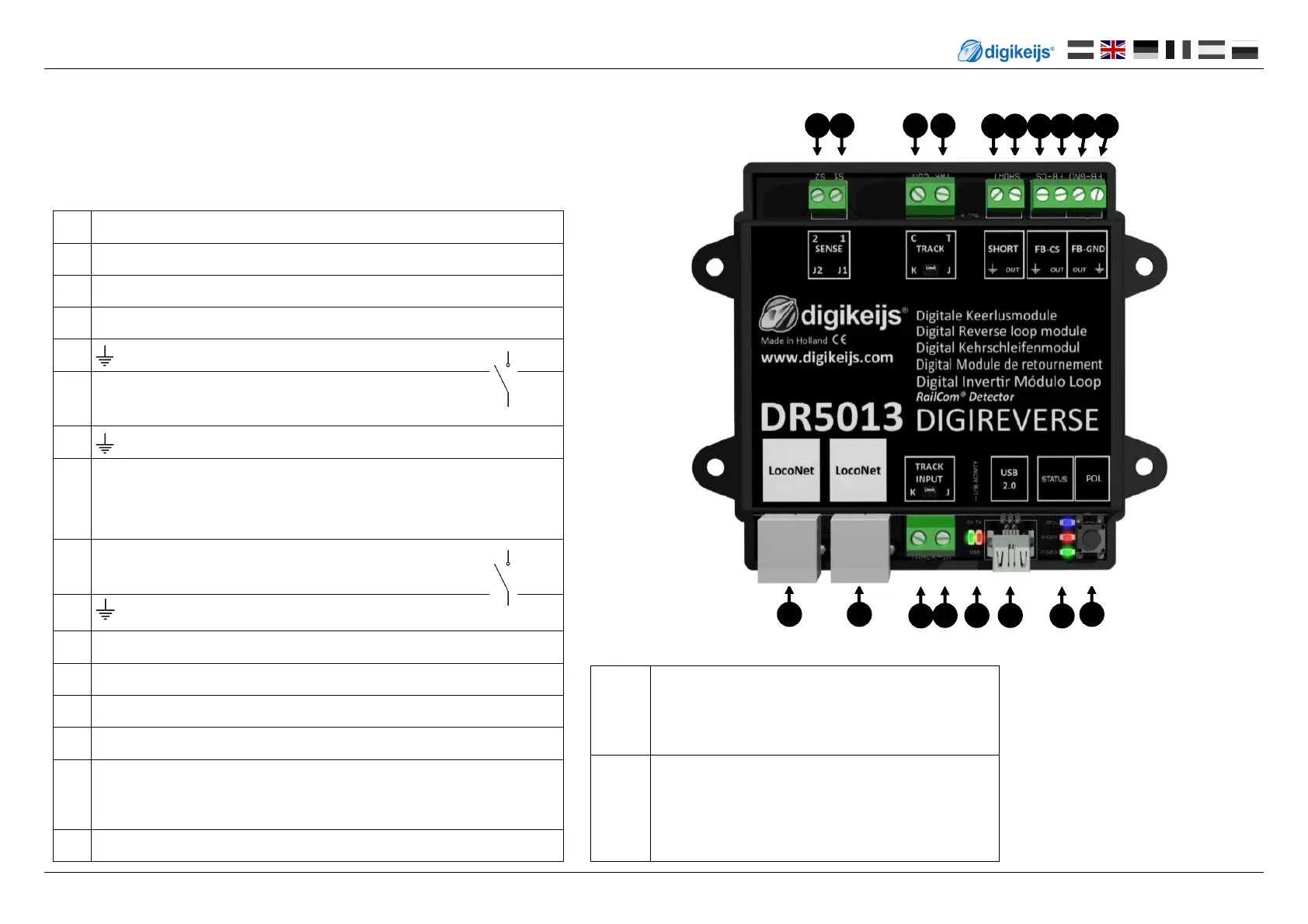

2.3 Hardware Overview
1 Sensor track 2
2 Sensor track 1
3 Track C (Railcom® Detector and Feedback Reverse Loop)
4 Track T (Railcom® Detector and Feedback Reverse Loop)
5 Short Feedback
6 Short Feedback external
Short circuit detected
7 FB-CS Track "Ground" brown
8 FB-CS Feedback external (current sensor)
Connecon of feedback 1-16 to DR4088CS
loop track
9 FB-GND Feedback external (switches to GND)
loop track
10 FB GND Connecon "C" on DR4088GND
11 LocoNet® connecon 1
12 LocoNet® connecon 2
13 Track Input K
14 Track Input J
15 USB Status LED
green RX
red TX
16 USB 2.0 connecon
1 2
11
3 4
5 6 7 8
12
13
14
9 10
15 16
17
18
17 Status LED
blue Phase posion reversing loop rotated
red Short circuit
green Operang voltage available
18 Reversing switch
(When the buon is pressed, the DR5013
changes the polarity of the reversing loop.)

Digikeijs DR5013 DIGIREVERSE Specifications

General

Brand	Digikeijs
Model	DR5013 DIGIREVERSE
Category	Control Unit
Language	English
