SmartSource Elite Series - Installation & Operations Guide
January 2017 8227 4907-003 Page 25 of 32
To ensure continued trouble-free operation, users should be aware that consumables may need to be
replaced, and be prepared with replacement parts when necessary. The unit is designed for quick and
easy replacement of feeder consumables by the operator. No tools are required and the unit does not
need to be taken out of service or returned to a service facility.

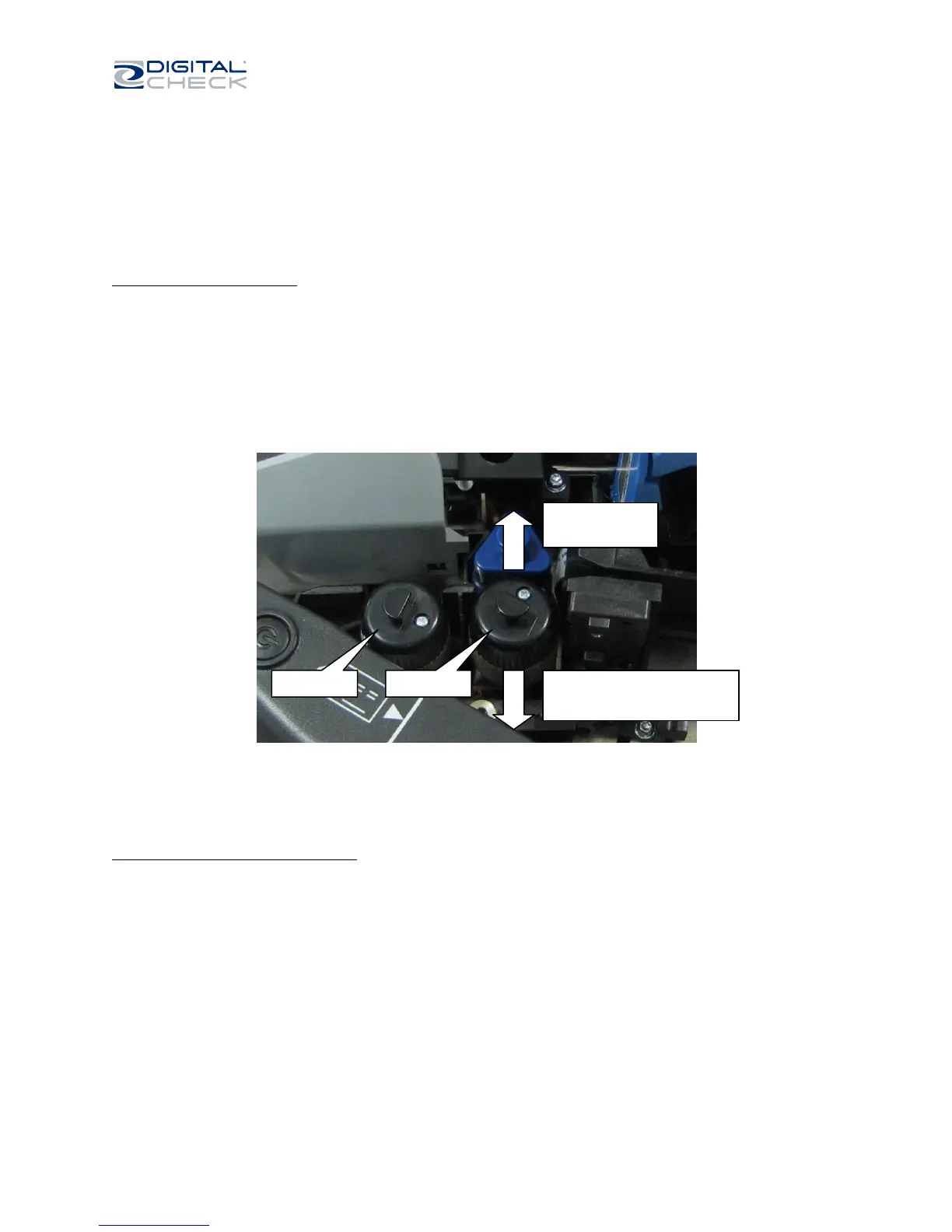

To replace the feed rollers:
1. Open the front cover and locate the two feed rollers, which have a black body with a tan-colored
rubber tire
2. To remove, lift straight up. The roller will ‘snap’ off the guide post.
3. To install a new roller, press straight down onto guide post – the roller will ‘snap’ into place.
There are several options for feed roller renewal, see section 5 for details. Feed rollers should always be
replaced as a pair.
To refresh or replace the separator:
Because a worn or soiled separator tire is a leading cause of feed problems, the separator has a special
design which allows it to be refreshed instantly, so that processing can continue immediately.
The separator has a triangular shape, which provides 3 separate working faces. When one of the three
faces has become worn or soiled, it can be instantly repositioned to replace the worn face with a fresh
face. This allows work to continue without the need to immediately locate and install a new part, and
provides time to order a new part if one is not immediately available.
Once all 3 faces of a separator have been used, it can be replaced with a new separator, which provides
a further 3 new working faces.
Lift straight up
to remove . . . .
.
. . . to install, press down until
roller ‘snaps’ into place
