DSE Model 5220 Automatic Mains Failure & Instrumentation System Operators Manual
16 057-012 5220 OPERATING MANUAL ISSUE 5.1 18/06/2007 AM
5 LCD INDICATORS AND LOGO INSERT
USER CONFIGURABLE LCD indicators
These indicators can be configured by the user to indicate any one of 100+ different functions
based around the following:-
• INDICATIONS - Monitoring of a digital input and indicating associated functioning user’s
equipment - Such as Battery Charger On or Louvre Open, etc.
• WARNINGS and SHUTDOWNS - Specific indication of a particular warning or shutdown
condition, backed up by LCD indication - Such as Low Oil Pressure Shutdown, Low
Coolant level, etc.
• STATUS INDICATIONS - Indication of specific functions or sequences derived from the
modules operating state - Such as Safety On, Pre-heating, Panel Locked, Generator
Available, etc.
These indicators are annunciated using a removable insert card. Additionally the module’s logo
can be changed to suit generator manufacturer’s requirements. This can be used for instance to
give custom branding to the module, or even include the service telephone number.
DSE have produced the ‘insert card creator’ software, shipped with the DSE Software CD to ease
the production of text and logo insert cards to suit your application.

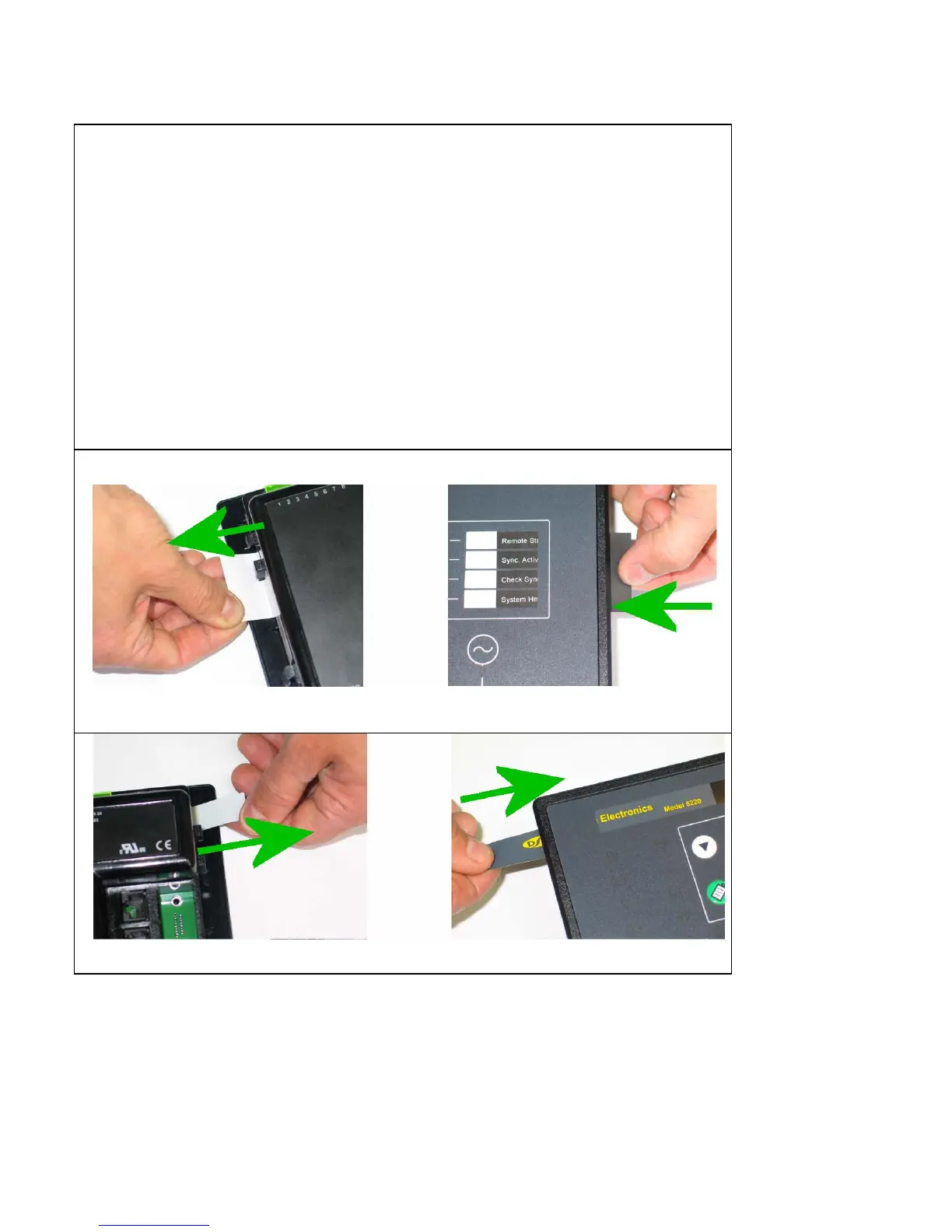

Removal and insertion of the text insert card
Removal and insertion of the Logo insert card
