DSE Model 5220 Automatic Mains Failure & Instrumentation System Operators Manual
46 057-012 5220 OPERATING MANUAL ISSUE 5.1 18/06/2007 AM

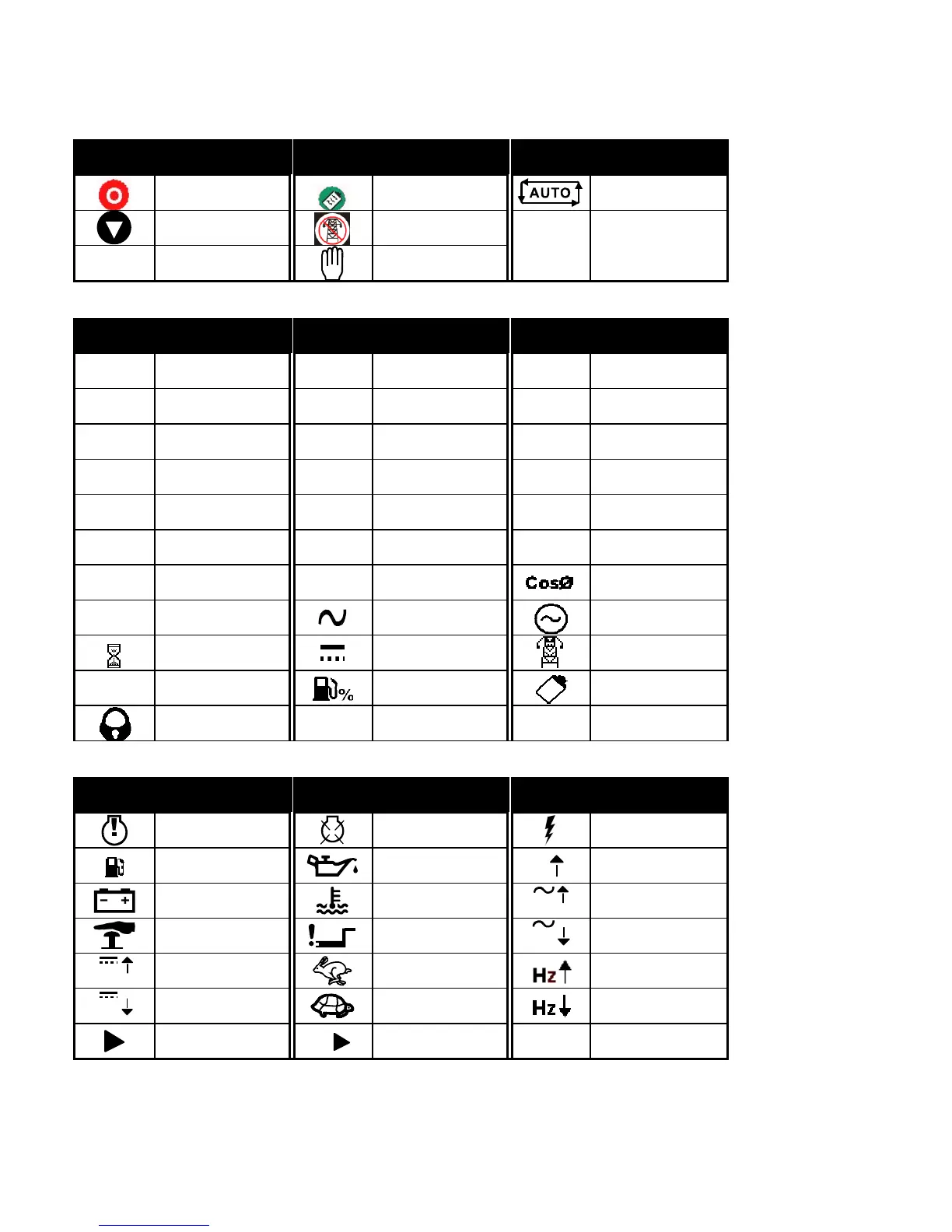

15.2 ICONS AND LCD IDENTIFICATION
15.2.1 PUSH BUTTONS
Display Description Display Description Display Description
Stop/Reset
Configure / log Auto mode
Scroll
Test mode
I
Start (when in
Manual or Test
mode)
Manual mode
15.2.2 STATUS / MEASUREMENT UNITS
Display Description Display Description Display Description
L1
Phase
L2
Phase
L3
Phase
L1- N
Phase - Neutral
L2- N
Phase - Neutral
L3- N
Phase -Neutral
L1- L2
Phase - Phase
L2- L3
Phase - Phase
L3- L1
Phase - Phase
BAR
Pressure
KPa
KPa Oil Pressure
Units
PSI
Pressure
V
Voltage
o
F
Temperature
Hz
Frequency
A
Amperes
o
C
Temperature
RPM
Speed
kW
KiloWatts
kVA
Apparent power
KW divided by
kVA
¤
Hours Run
AC
Generator
Timer in progress
DC
Mains (Utility)
#
Configuration
mode active
Fuel level Event log
Panel locked by
configurable input
15.2.3 ALARM INDICATIONS
Display Description Display Description Display Description
Warning Alarm
Shutdown Alarm
Electrical Trip
Fuel
Low Oil Pressure
A
High Current
Warning
Charge Fail
High Coolant
Temperature
V
Over Voltage (AC)
Emergency Stop
Fail to start (Over-
crank)
V
Under Voltage
(AC)
V
Over Voltage (DC)
Over-speed
Over frequency
V
Under Voltage
(DC)
Under-speed
Under frequency
Auxiliary
Indication
!
Auxiliary Alarm
(Warning or Shutdown)
