DSE Model 5220 Automatic Mains Failure & Instrumentation System Operators Manual
5220 OPERATING MANUAL ISSUE 5.1 18-Jun-07 AM 25
Front panel configurable items continued:
Config’ Section Parameter Type Icons displayed
Engine speed
Under Speed (RPM) Trip
Under Speed (RPM) Pre Alarm
Over Speed (RPM) Pre Alarm
Over Speed (RPM) Trip
DC Voltages
Low DC Voltage Warning
Charge Alternator Failure Warning

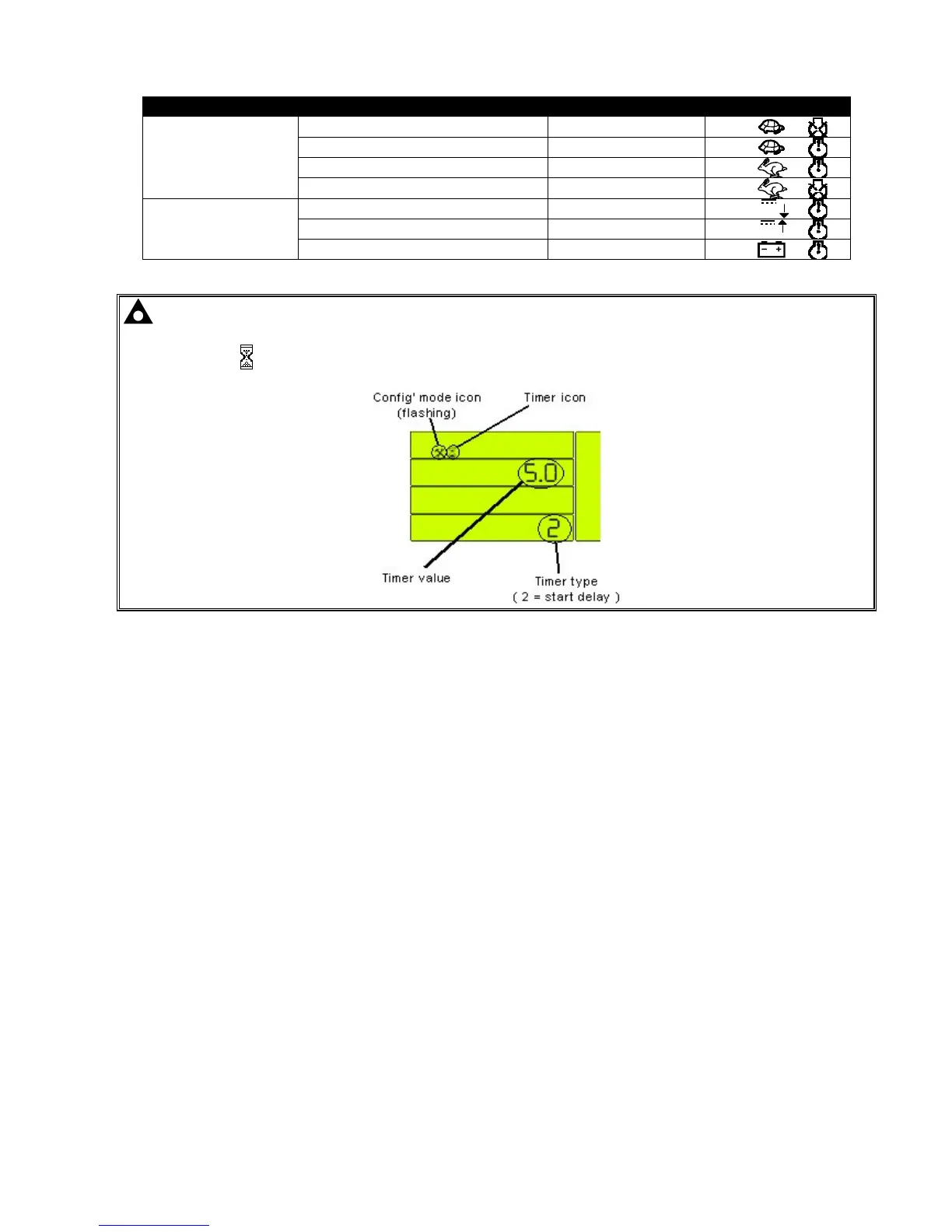

NOTE: - The timers are numbered to enable them to be identified when in configuration mode. In the
following example timer number 2 (‘Start delay’ from the above list) is currently set to 5.0 seconds. I.e.
the ‘hour glass’ indicates that it is a timer being displayed. The ‘2’ indicates that it is timer number 2
(Start delay). The current setting is 5.0 (seconds).
