Site requirements
Operating environment
• Relative humidity: 20% to 80% non-condensing
• Temperature: 15° C to 35° C (60° F to 95° F)
Electrical requirements
• The power supply is rated at 100-240 VAC, 50-60
Hz, 1.8 amp. (It adjusts to any power within this
range.)
• Single phase, 3-wire, grounded receptacle only.

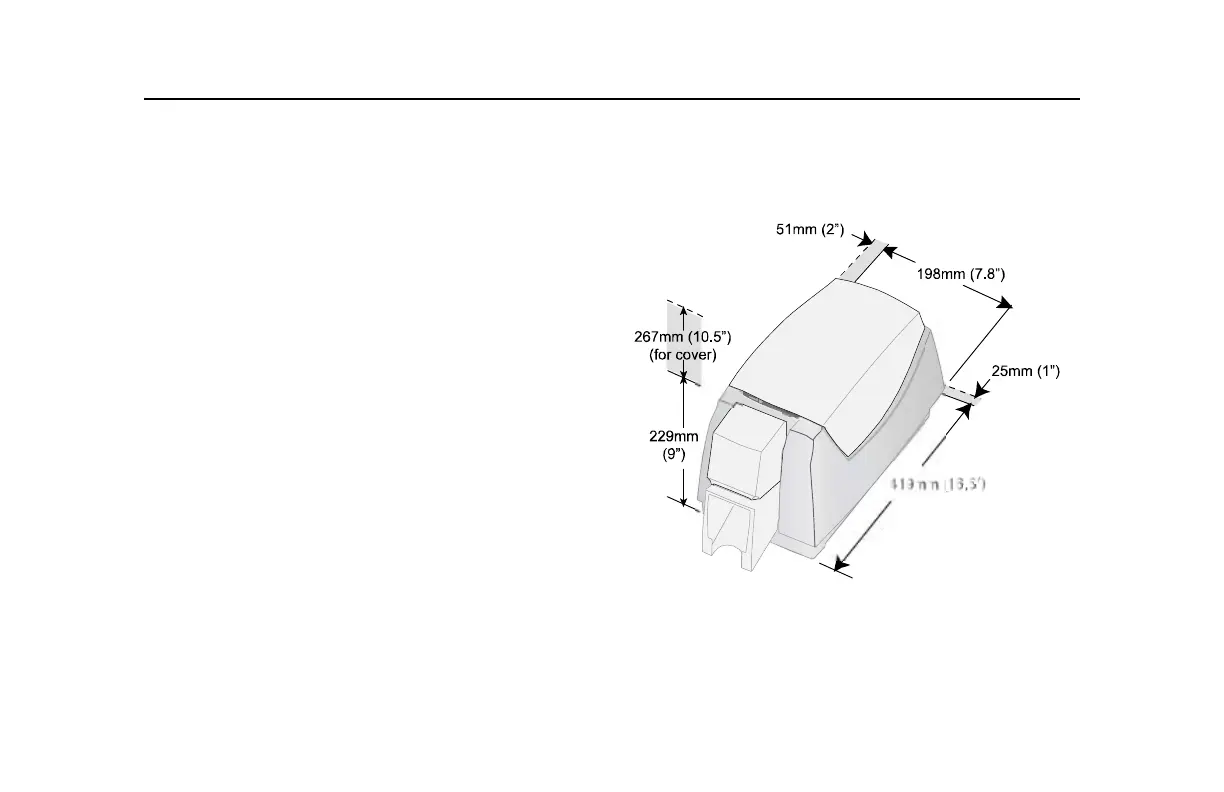

Physical requirements
• The printer weighs less than 4 kg (9 pounds). The
weight depends on the supplies and options
installed.
• Printer dimensions are 419mm (16.5 inches) long,
and 198mm (7.8 inches) wide. The printer is 229mm
(9 inches) high.
• The clearances required are 25mm (1 inch) at the
back, 51mm (2 inches) on the left side, and 267mm
(10.5 inches) above the printer latch to open the
cover.
