DS6 User Manual

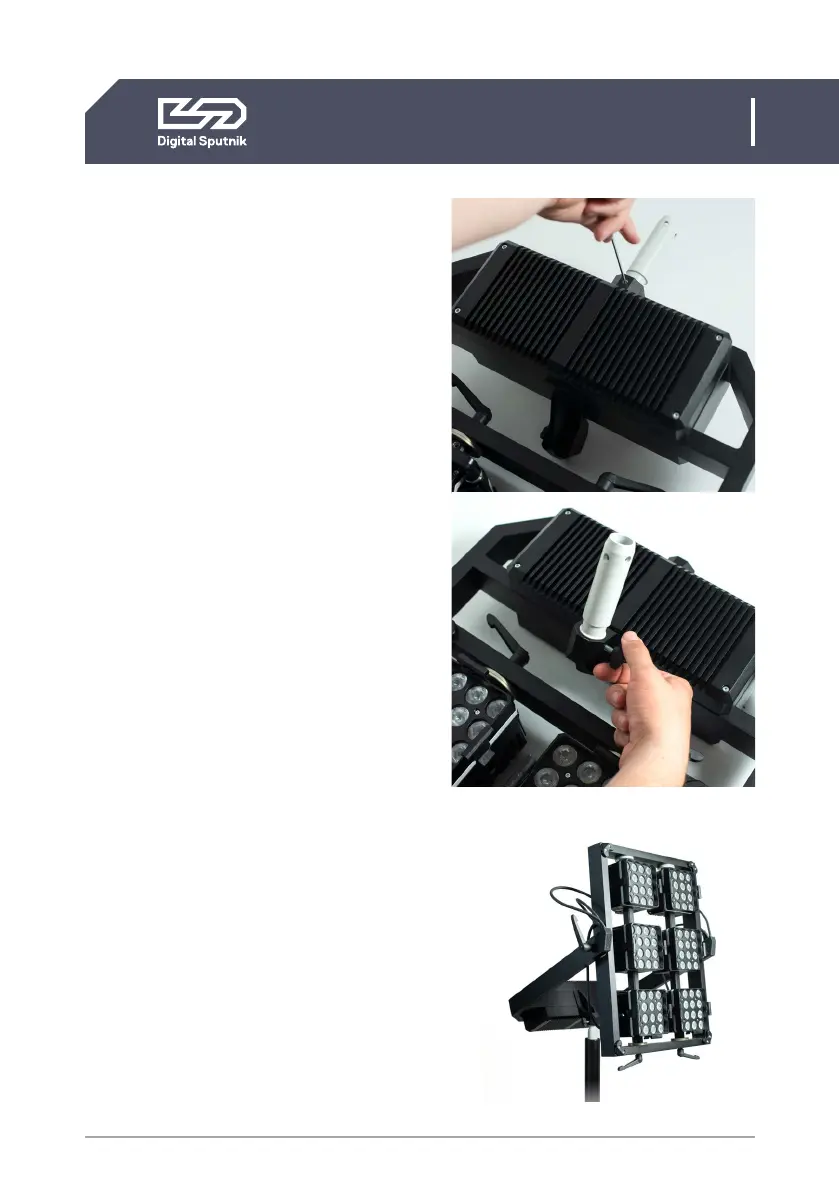

1. HARDWARE / PSU interface
Junior pin installation
DS6 has two sockets to install the junior pin
to. From the factory it comes with junior pin
installed to the bottom socket of the frame.
Follow these steps when wanting to install
junior pin to the offset front mount.
1. Use HEX key no.3 to loosen the pin and
remove it from the socket.
2. Install the junior pin into the front mount
with the grooved tip forward.
3. Fasten the locking nut.
1
2-3
