12. MIDI In
This jack receives all incoming MIDI data. Connect this jack to the MIDI out of a computer,
sequencer,MIDI controller, or MIDI storage device.
13. MIDI Out/Thru
This jack sends MIDI data from the GNX2. Connect this jack to the MIDI in of a computer,or
external MIDI recording device. When enabled,MIDI Thru sends the same information the GNX2
received at the MIDI In.
14. Strain Relief
This secures the power cord and to help prevent it from disconnecting during a performance.
Getting Started
Making Connections
The GNX2 has several different connection options. You can run mono into an amp or power amp,
stereo into two amps or a stereo power amp, direct into a mixing console, or any combination of these.
Before connecting the GNX2, make sure both the GNX2 and the amplifier are OFF. The following
diagrams show some examples.
NOTE:The type of amplification system the GNX2 will be used with should be selected at the
Ta rget System Setup of the Utility menu. See page 40 for more information about selecting
the Target System Setup.

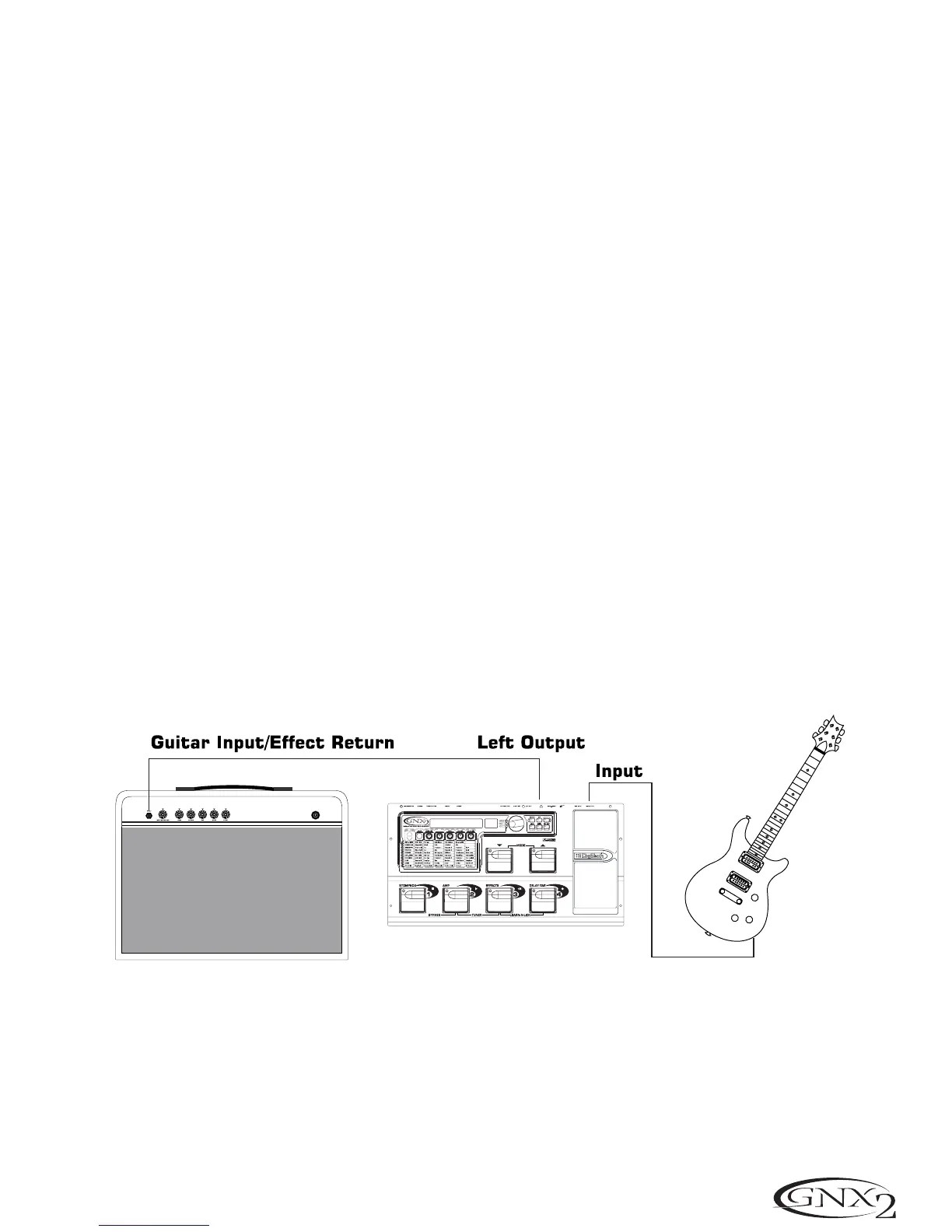

Mono Operation
1.Connect your guitar to the input of the GNX2.
2.Connect the GNX2’s left output to the instrument input on your amplifier,or to the line input of a
power amp.
3.Select Mono as the Output mode from the Utility menu. See page 40 for more on selecting the
Output mode.
Stereo Operation
1.Connect the guitar to the input of the GNX2.
2.Connect the GNX2’s Left output to the input of one amplifier or channel of a power amp.
3.Connect the GNX2’s right output to a second amplifier,or to a second channel of a power amp.
4.Select Stereo as the Output mode from the Utility menu. See page 40 for more on selecting the
Output mode.
7
