NOTE: The I1J or IAJ shown in the display may or may not match the
physical position of the turnout selected. If the I1J or IAJ is flashing, it
means that the DCS51 has no information about the current position of
the turnout. If the 1 or A is steady it means that the DCS51 remembers
the last command sent by it to that turnout. This indication does not
guarantee turnout position since, the turnout may have been moved by
hand and the DCS51 has no way of determining actual turnout posi-
tion.

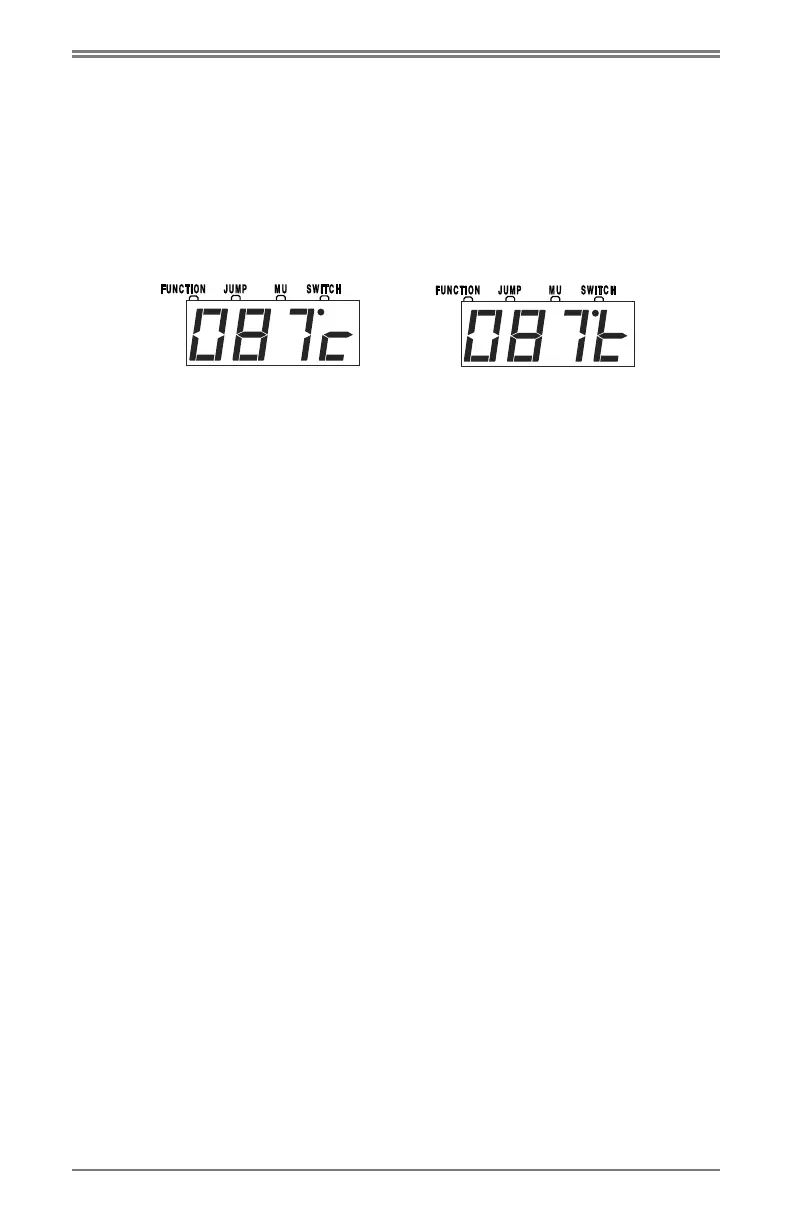

The examples below show turnout address 087 first closed and then thrown
3. Use the numeric keypad to enter the turnout address for the turnout you
want to change.
4. Press the
1 key to close the turnout or the A key to throw the turnout.
Note: While you are in SWITCH mode, the throttle knob and direction
lever will continue to control the loco address running on the throttle.
5. When you have finished your SWITCH operations, press ,( to return to
normal operation mode.
'/C7;5A639/@A'D7A16@A/A3@<?@3AA7;5@4<?F<B?1B??3;A
'@3@@7<;
When you are ready to end your session on the layout, you can make the
DCS51 remember the settings of switches 1 to 512 in non-volatile memory by
pressing the POWER key to turn off the Track power before turning off the
power input into the DCS51.
To Next Page
