Maintenance
replacement will reduce the
number of times you need to
open the unit to replace light
bulbs.
To access the lower light bulb
area:
CAUTION: Allow at least ve
minutes for the light bulbs to cool
before touching them to avoid
accidental burning of the skin.

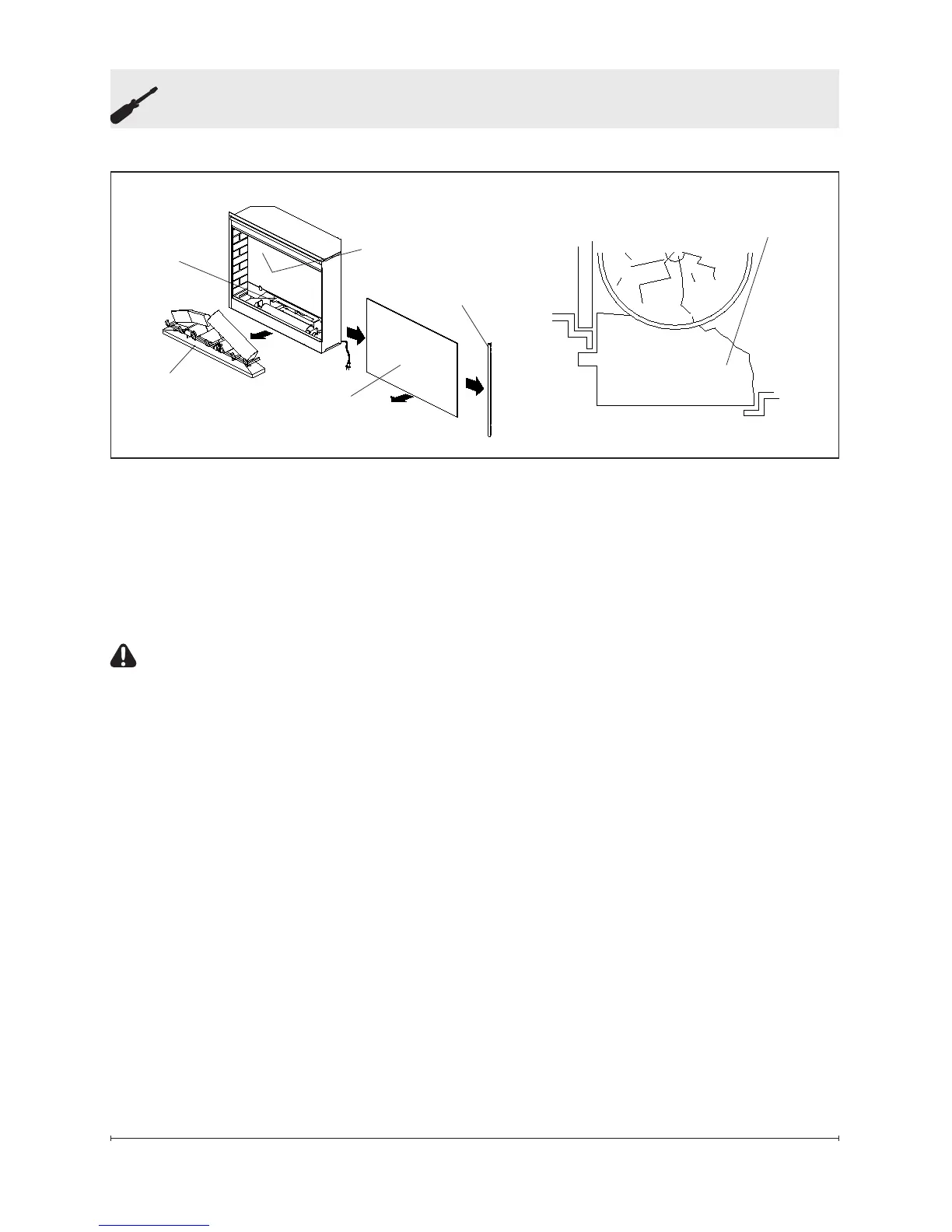

1. Slide replace out of mantel.
2. Lay unit on it’s back for safe
removal of front glass.
3. Remove four (4) Phillips
screws from the right side of
the trim.
4. Remove the trim.
5. Slide glass to right side of
replace to remove (Figure
6).
6. Pull the front edge of the
plastic Ember Bed or plastic
grate up and forward until the
rear tab releases from the
ledge located at the bottom
of the partially reective glass
(Figure 7).
!
IMPORTANT: Only handle
the Log Set by the Ember Bed.
!
NOTE: Log Set ts tightly
into rebox, some force may be
necessary to remove.
7. Set Log Set in front of
replace.
8. Remove icker rod by sliding
icker rod to the left away
from the icker motor and
lifting out.
1. Remove light bracket for
easier access to light bulbs.
9. Unscrew bulbs counter
clockwise.
10. Insert new bulbs.
Lower
Bulbs
Upper
Bulbs
Trim
Front
Glass
Log Set
Figure 6
Back
Ledge
Log
Ember Bed
Rear
Tab
Front
Edge
Side Section
Figure 7
