carpet or similar surfaces which may restrict air circulation. If
installing the fireplace in a carpeted area, place a one-piece, solid
flat surface under the fireplace. Ensure that all feet rest securely on
this surface.
!
NOTE: The dimensions of the fireplace with the trim are 27 ⅜ inch
(695 mm) wide x 23 ½ inch (596 mm) high x 8 ¾ inch (222 mm)
deep. Dimensions without trim are 26 ¼ inch (663 mm) wide x 22 ⅞
inch (580 mm) high x 8 ¾ inch (222 mm) deep. The fireplace does

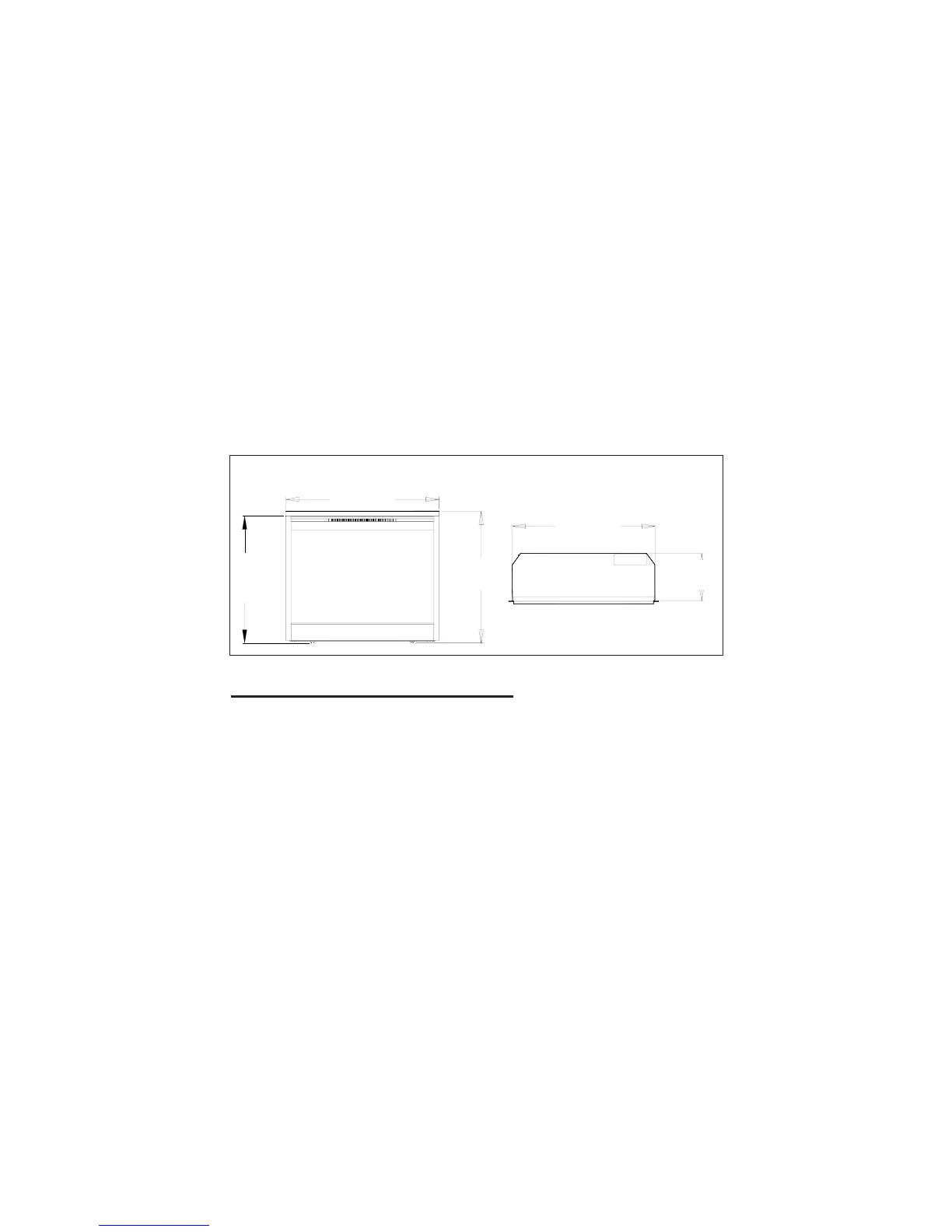

not require any additional venting (Figure 4).
Figure 4
27 ⅜”
(695 mm)
22 ⅞”
(580
mm)
23 ½”
(596 mm)
8 ¾”
(222 mm)
26 ¼”
(663 mm)
Fireplace Insert Installation
Install the fireplace assembly into the mantel (refer to mantel assembly
instructions).
!
NOTE: A 15 Amp, 120 Volt circuit is required. A dedicated circuit is
preferred but not essential in all cases. A dedicated circuit will be
required if after installation the circuit breaker trips or fuse blows on
a regular basis when the heater is operating. Additional appliances
on the same circuit may exceed the current rating of the circuit
breaker.
!
IMPORTANT: If not using a Dimplex mantel, the fireplace must be
installed in an enclosure with the following MINIMUM dimensions
(Figure 5).
